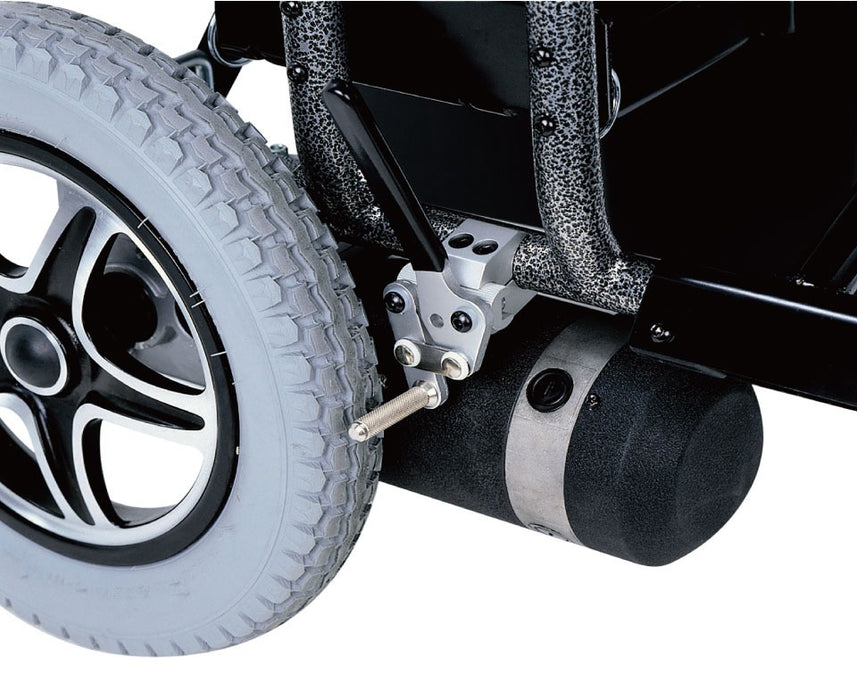

Merits Health P181 TRAVEL-EASE 22 — manufacturer product photo

Merits Health P181 TRAVEL-EASE 22

by Merits Health
$2,869.00 - $2,869.00
$2,869.00
$2,869.00 - $2,869.00
$2,869.00
Shipping estimate

Estimated shipping: $300.00

Estimated total before taxes: $3,169.00

48 contiguous U.S. states only. Estimate for this product and quantity, based on order value. Other cart items and discounts may change the shipping tier. Final shipping is shown at checkout.

Model: P181

Product Description

Product Description
  • Reinforced frame with double cross braces provide a sturdy support for heavy duty use.
  • Auxiliary hand brakes offer extra safety.
  • Aluminum rim drive wheels and reinforced front casters.
  • Optional pneumatic casters and drive wheels.
  • Patented folding battery tray allows improved portability.
  • Programmable controller with various choices of different performance to fit various needs of users.
  • Height adjustable flip-up desk armrests and swing away footrests for easier access.
  • Optional adjustable mounting bracket for the controller, swing back mounting bracket.
Product Highlights
Weight Capacity:205 kg / 450 lb
Product Weight:59.5 kg / 131lb
Driving Range:40 km / 25 mi.
Max Speed:6.5 km/h , 4 mph
Features & Benefits
Four poles motor
Specifications
Dimensions
(cm/in)
Seat width
Seat depth
Seat height
Backrest height
Armrest height
Footrest extension length
Overall length
Overall width
Overall height
Folded width
56 cm / 22" 46 cm /18" 51 cm / 20" 38-48 cm / 15"-19" 20-30 cm / 8"-12" 40-53 cm / 16"-21" 114 cm / 45" 71 cm / 28" 91 cm / 36" 38 cm / 15"
Key Details
Driving Range 40 km / 25 mi.
Max Speed 6.5 km/h , 4 mph
Battery Type 12V / 22NF x 2 pcs
Motor DC 24V , 240W , 2P (Rating) / 950W (Max)
Max Climbing Angle 10°
Turning Radius 63 cm / 25"
Ground Clearance 12 cm / 4.5"
Controller PG VR2 70A
Charger 5A off-board
Weight Capacity 205 kg / 450 lb
Total Weight 59.5 kg / 131lb
Front wheel 8" (200 x 50) Foam filled tire
Drive Wheel 12-1/2” x 2 - 1/4” Foam filled tire
Rear wheel 12-1/2” x 2 - 1/4” Foam filled tire
Models & Options

Model: P181

Accessories

See the manufacturer’s specifications for compatible accessories and optional equipment.

Resources & Downloads
Colors

Color swatches for the Merits Health Travel-Ease.
