Merits Health P301 GEMINI — manufacturer product photo

Merits Health P301 GEMINI

by Merits Health
$3,207.00 - $3,207.00
$3,207.00
$3,207.00 - $3,207.00
$3,207.00
Shipping estimate

Estimated shipping: $300.00

Estimated total before taxes: $3,507.00

48 contiguous U.S. states only. Estimate for this product and quantity, based on order value. Other cart items and discounts may change the shipping tier. Final shipping is shown at checkout.

Model: P301

Product Description

Product Description

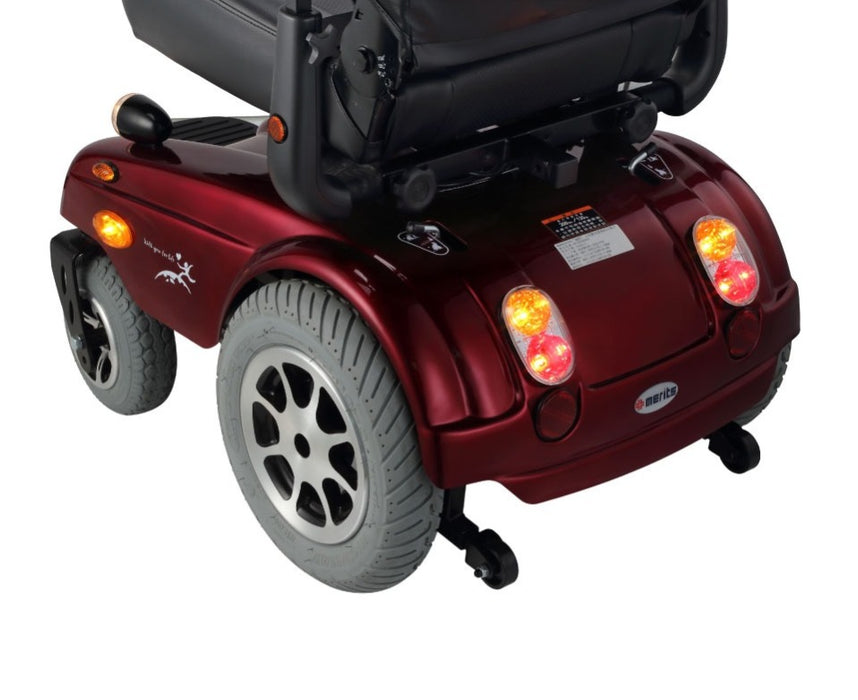

  • Aluminum footplate with flip-up height and angle adjustability for various positions.
  • Comfortable 20” wide captain seat with swivel and folding capabilities, headrest and backrest adjustable.
  • Unique suspension system with high-density foam seat for a smooth comfortable ride.

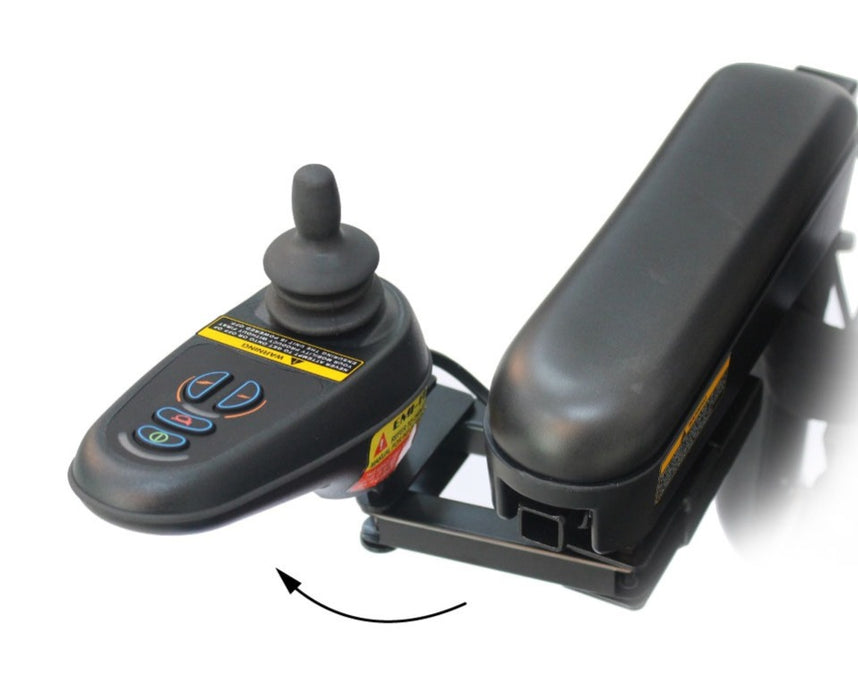

  • Sophisticated controller coupled with 14” aluminum cast drive wheels offer great maneuverability.
  • Fitted with removable anti-tippers for increased safety.
  • Optional swingaway footrests and elevating legrests with mounting bracket as a kit.
  • Optional power seat elevator.
  • Optional full lighting system.
Product Highlights
Weight Capacity:205 kg / 450 lb
Product Weight:110 kg / 242 lb
Driving Range:32 km / 20 mi.
Max Speed:8 km/h , 5 mph
Features & Benefits
Specifications
Dimensions
(cm/in)
Seat width
Seat depth
Seat height
Backrest height
Armrest height
Footrest extension length
Overall length
Overall width
Overall height
Folded width
P301 51 cm / 20" 46 cm / 18" 56-61 cm / 22"-24" 51 cm / 20" --- 48-53 cm / 19"-21" 104 cm / 41" 61 cm / 24" 114 cm / 45" ---
Key Details
Driving Range 32 km / 20 mi.
Max Speed 8 km/h , 5 mph
Battery Type 12V / 22NF x 2 pcs
Motor DC 24V , 240W (Rating) / 950W (Max)
Max Climbing Angle 12°
Turning Radius 53 cm / 21"
Ground Clearance 10 cm / 4"
Controller PG nVR2-60A / DY LiNX
Charger 5A off-board
Weight Capacity 205 kg / 450 lb
Total Weight 110 kg / 242 lb
Front wheel 210 x 70 PU tire
Drive Wheel 14" (3.00-8) Foam filled tire
Rear wheel 14" (3.00-8) Foam filled tire
Models & Options

Model: P301

Accessories

See the manufacturer’s specifications for compatible accessories and optional equipment.
