Merits Health P327 VISION SUPER — manufacturer product photo

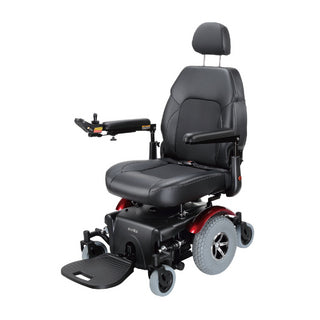

Merits Health P327 VISION SUPER

by Merits Health
$4,279.00 - $4,279.00
$4,279.00
$4,279.00 - $4,279.00
$4,279.00
Shipping estimate

Estimated shipping: $300.00

Estimated total before taxes: $4,579.00

48 contiguous U.S. states only. Estimate for this product and quantity, based on order value. Other cart items and discounts may change the shipping tier. Final shipping is shown at checkout.

Model: P327

Product Description

Product Description

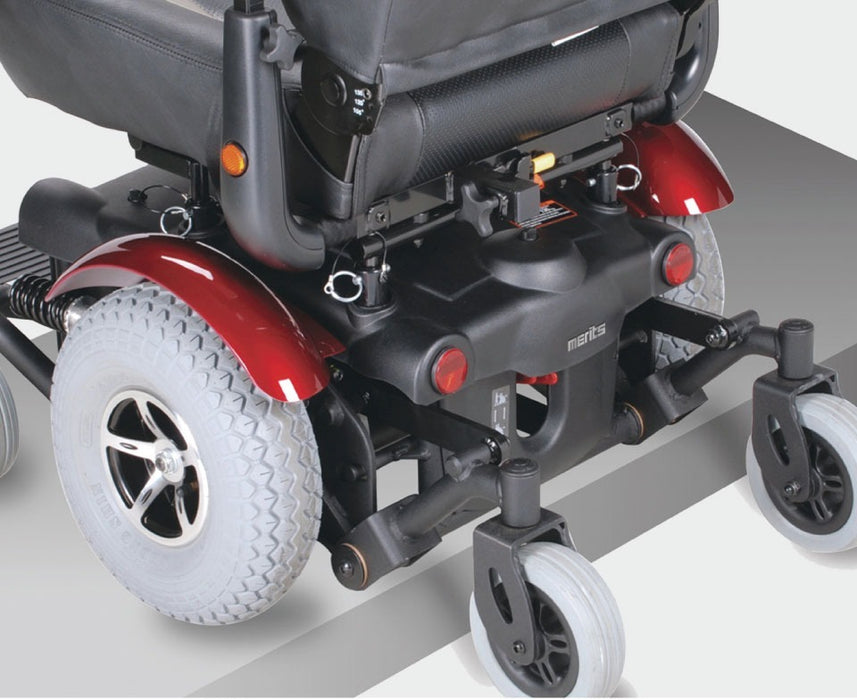

  • Mid-wheel drive design provides outstanding maneuverability in tight, compact spaces.
  • Patented articulation mechanism allows front wheels climbing up the step/ threshold easily.
  • Dual in-line motors for enhanced efficiency, torque, range and performance.
  • Full front and rear suspension design offers a true comfortable ride
  • 12” Knobby tires for optimum weight distribution provide superior traction.
  • Swing back joystick bracket is standard.
  • Excellent stability on footplate.
  • Heavy duty Group 2 model.
  • Maximum stability with 4 seat post design, good to change to rehab seating.
  • Optional R300 cross braces power seat elevator with PG VR2 60A-A1 controller,weight capacity 400lbs.
Product Highlights
Weight Capacity:205 kg / 450 lb
Product Weight:105 kg / 231 lb
Driving Range:32 km / 20 mi.
Max Speed:8 km/h , 5 mph
Features & Benefits
6” caster of front & rear for maximum stability. True 6-wheel design helps to climb over obstacles smoothly
Specifications
Dimensions
(cm/in)
Seat width
Seat depth
Seat height
Backrest height
Armrest height
Footrest extension length
Overall length
Overall width
Overall height
Folded width
P327 51 cm / 20" 46 cm / 18" 53-58 cm / 21"-23" 51 cm / 20" --- 43-48 cm /17"-19" 90 cm / 35" 69 cm / 27" 127 cm / 50" ---
Key Details
Driving Range 32 km / 20 mi.
Max Speed 8 km/h , 5 mph
Battery Type 12V/ 22NF x 2pcs
Motor DC 24V , 200W (Rating) /575W (Max)
Max Climbing Angle 10°
Turning Radius 53 cm / 21"
Ground Clearance 5.6 cm / 2.2"
Controller PG nVR2 50A / DY LiNX
Charger 5A off-board
Weight Capacity 205 kg / 450 lb
Total Weight 105 kg / 231 lb
Front wheel F/R: 6” x 2” PU tire
Drive Wheel 12" (4.00-5)
Rear wheel F/R: 6” x 2” PU tire
Models & Options

Model: P327

Accessories

See the manufacturer’s specifications for compatible accessories and optional equipment.

Resources & Downloads
Colors

Color swatches for the Merits Health Vision Super.
