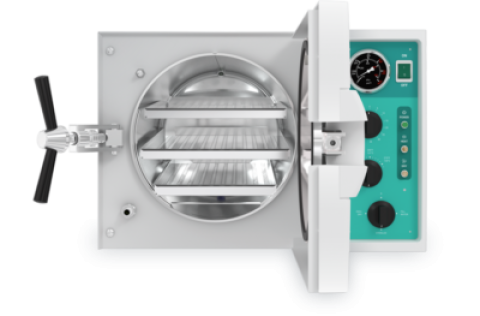

Manual veterinary autoclave
TVET 9M
The most cost-efficient solution for your clinic.
The perfect Autoclave developed exclusively for Veterinarians. The tvet line fits all your sterilization needs by creating cycle parameters to accommodate double wrapped pouches. These cycles ensure sterility and efficient drying of packs and pouches, helping veterinarians meet today's challenging workloads.
A small and affordable veterinary autoclave, built to last
The small but mighty tvet 9M offers unparalleled quality for clinics on a budget. This maintenance free plug-and-play autoclave features a 5-gallon stainless steel chamber, just big enough to fit your most important veterinary equipment. Activate each stage of the sterilization cycle with a single touch. Packed with features for the fastest, most versatile operation, the tvet 9M delivers outstanding performance , unmatched safety features and intuitive controls for the most demanding high volume environments.
3 Trays. Tray handle included
Safe-Locking Door
Easy to use with one hand, the decorative stainless steel door has a double safety mechanism
Intuitive Control
Designed with the operator in mind, the colorful control panel is intuitive and easy to use
Simple Drainage
A drainage valve is conveniently located at the front, allowing you to quickly and easily drain the water reservoir
Durable Chamber
Made to last, the electropolished 316L stainless steel chamber is backed by a 10-year warranty
Overheating Protection
The dual safety thermostat and automatic shut-off at the end of all cycles provide reliable overheating protection
Technical specifications
Dimensions (D x W x H)*
21.5” x 20.1” x 14.4”
545mm x 510mm x 365mm
Chamber Dimensions
9” x 18”
230mm x 470mm
Chamber Volume
19 Liter
5 Gallon
Tray Capacity
3 Trays
Tray Dimensions
16,3” x 6,7" x 0.8”,
442mm x 170mm x 20mm
Standard Cassette Capacity
2 Full, 2 Half *
Voltage & Frequency
120V
50-60Hz
Power & Current
1400W
12A
Shipping Weight
85 Lbs
39 kg
NOTE
* Standard full size cassette is 8” x 11” and standard half size cassette is 8” x 5.5”
Standards & Directives
Pressure Vessel
All pressure vessels and boilers are certified according to ASME code section I and section VIII, Div. I and 2014/68/EU – Pressure Equipment Directive
Quality Standards
ISO 9001:2015 Quality Management System
ISO 13485:2016 Quality Management System – Medical Devices
ISO 14001:2015 Environmental Management System
Canadian MDR (CMDR) SOR/98-282 (2018), consolidated
Technical Standards
ANSI/AAMI ST55:2016
Directives
93/42/EEC Medical Devices Directive
2006/42/EC Machinery Directive
2014/35/EU Low Voltage Directive
2014/30/EU Electromagnetic Compatibility Directive
2012/19/EU WEEE and 2011/65/EU RoHS
EN 61010-2-040
EN 554 EN 61326 EN 61326
Complying with MDD 93/42, PED 97/23, RoHS & WEEE Directives(IP31)
