10" and 11" Chamber Sizes
T-Top Medical Autoclaves
Efficiency with maximum reliability
Upgradable to pre/post vacuum (Class B)
Clean water with every cycle! Separate water reservoirs for clean/used water
T-Top 11 comes with automatic drain and fill kit included
Best price for TOP performance
T-Connect: Advanced remote diagnostics
21 and 27 Liter Large Chamber Capacity
Designed to Meet Your Healthcare Clinics’ Everyday Sterilization Needs
The T-Top autoclave is specifically developed for dental and medical clinics of small to medium practices, covering the fundamental needs for your general clinic sterilization with the aim of increasing the productivity of your practice.
T-Top offers universal capacity, handed to you, in an affordable and reliable solution you can count on for managing your daily practice sterilization process workload; an efficient autoclave which perfectly meets the requirements of all standard practices.

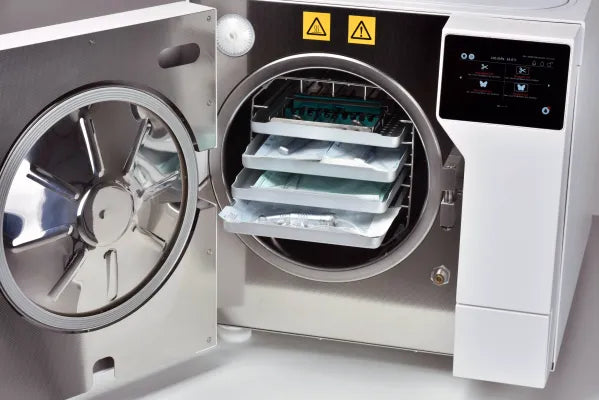

21L or 27L Chambers / 5 Trays max.

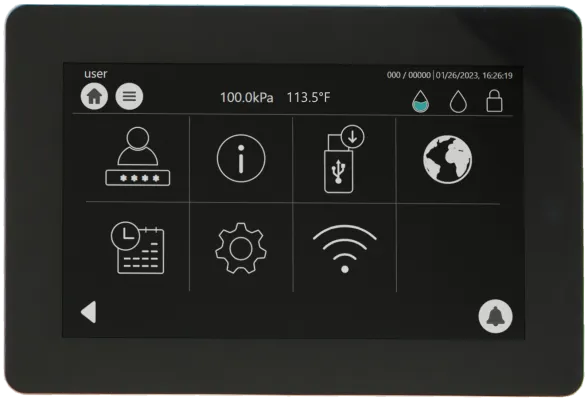

Intuitive touch screen for your ease of use
T-Connect software for Smart Clinics (standard)

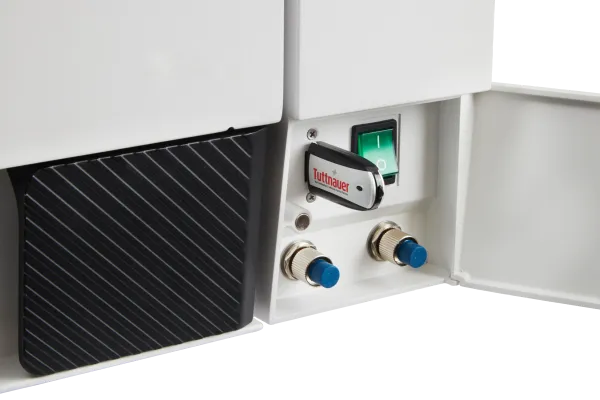

USB Access
Complete solution for clinic instrument reprocessing
Making your process easier, safer and affordable. Sterilizer with high performance class B cycles, user friendly advanced technology with Wi-Fi connectivity, and an intuitive colour touchscreen.
Plug and Play
No dedicated installation connections needed, simply a power source
Reliable Performance
Quality product that will do all you need and expect. Advanced technology to deliver longevity and reliability.
Traceability & Connectivity
Monitor & trace your process. Connect using Wi-Fi, Ethernet connection, USB ports, T-Connect and R.PC.R
Time saver setting
Set test cycles and sterilization cycles to start at any time
Compact Design
Does not require a lot of counter top or shelf space
Safety & Regulation
Meets strictest international standards
Sterilization Cycle Programs
Optimized cycle programs for efficient and consistent performance.
Class S
Cycle Program
Load Type
T-Top 10 * Cycle times including drying
T-Top 11 * Cycle times including drying
Unwrapped Instruments 270°F
Unwrapped Instruments
21 Minutes
37 Minutes
Wrapped Pouches 270°F
Wrapped Pouches
47 Minutes
59 Minutes
Unwrapped Delicate 250°F
Unwrapped Delicate Instruments
34 Minutes
46 Minutes
Handpieces 270°F
Handpieces
50 Minutes
70 Minutes
* Cycle times above are an average for a standard load and could vary based on load weight, type, and external conditions
Class B
Cycle Program
Load Type
T-Top 10 * Cycle times including drying
T-Top 11 * Cycle times including drying
Unwrapped Instruments 273°F
Unwrapped Instruments
24 Minutes
38 Minutes
Wrapped Pouches 273°F
Wrapped Pouches
52 Minutes
66 Minutes
Wrapped Delicate 250°F
Wrapped Delicate Instruments
73 Minutes
80 Minutes
Unwrapped Delicate 250°F
Unwrapped Delicate Instruments
34 Minutes
46 Minutes
* Cycle times above are an average for a standard load and could vary based on load weight, type, and external conditions
Bowie & Dick Test Cycle
Chemical indicator in a product challenge device. Verify effective steam penetration. Also suitable for testing air removal with Helix test.
Vacuum Test Cycle
Verify the integrity of the pressure vessel and its plumbing on a periodic basis as
referred to in ISO 17665-1.

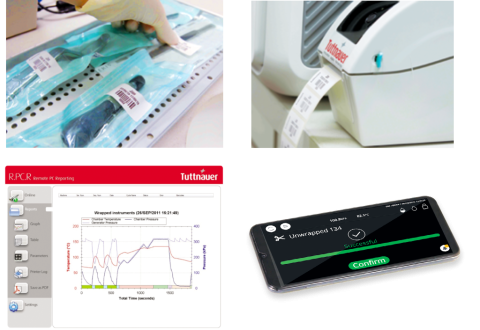

Data where you need it
Cloud based paperless software
T-Top devices feature the exclusive and
technologically advanced T-Connect, a cloud
based IoT solution for your sterilization center.
Printouts for saving hard copies (optional printer)
Sophisticated data analysis capabilities with T-Connect (remote access) or RPCR software
Personalized username and password
Advanced documentation, and traceability options, including barcode.
Technical Specifications
Chamber size
T-Top 10: 10" (Ø) x 18" (D)
T-Top 11: 11" (Ø) x 18" (D)
Chamber Volume
T-Edge 10: 21 Liters / 5.5 Gal
T-Edge 11: 27 Liters / 7 Gal
Overall dimensions
T-Top 10: 23"(D) x 18.1"(W) x 18"(H)
T-Top 11: 23"(D) x 19.5"(W) x 17.5"(H)
Max # of trays
5 Trays
Weight
T-Top 10: 99 lbs.
T-Top 11: 115 lbs.
Water filling
T-Top 10: Manual
T-Top 11: Manual and Automatic
Digital Connections
2 USB ports, Wi-Fi, T-Connect software
Standards and Regulations
T-Top meets the following International standards
CE MDR
Certificate number 3903015CE01
Valid until 01-03-2028
Electromagnetic compatibility
IEC 61326-1
Electrical safety
IEC 61010-1, 61010-2-040
Verification & validation functional tests
EN 13060
Software validation
EN 62304, FDA guidance
Quality Management System
ISO 9001:2015
ISO 13485:2016
Pressure Vessel
PED 2014/68/EU
