3 Chamber Sizes Available: 50-160 Liters

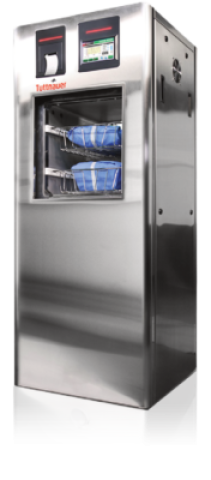

PlazMax Low-Temperature Vaporized Hydrogen Peroxide Sterilizers
For sterilizing heat sensitive veterinary equipment
Highly effective sterile processing for operating rooms and Sterile Processing Departments (SPD). Using eco-friendly VHP (Vaporized Hydrogen Peroxide) sterilizing agent the PlazMax sterilizer inactivates micro-organisms with Hydrogen Peroxide vapor. The hydrogen peroxide safely and quickly sterilizes veterinary instruments and materials without leaving dangerous residues, thus offering an effective, reliable, economical, and easy sterilization method.
12 Questions to answer before buying a Low-Temperature Vaporized Hydrogen Peroxide Plasma Sterilizer
Smart design, smart technology
For highly effective sterile processing in small operating rooms or large Sterile Processing Departments (SPD).
Thermal printer and USB port
For printing cycle information and downloading data. Real-time graphical display of cycle parameters
Aluminium chamber
Homogeneous, aviation grade, excellent temperature distribution
Non-toxic H2O2
Green sterilizing agent prevents toxing emissions to the environment. No toxic residues, only water and oxygen
Advanced human machine interface (HMI)
Sophisticated Touch Screen multi-color display
Stainless-steel panels
Highly durable stainless -steel panels, prevents discoloration and easily cleaned
Vertical sliding door
Multiple model configurations: manual or vertical with single or double door option. Handsfree opening device
Sterilization cycles and test programs
The PlazMax Line offers regular sterilization cycles for non-hollow loads, advanced sterilization cycles for hollow loads and a unique endoscope cycle. A penetration test and a leakage test are also available.
Sterilization Cycles
Model
Normal Cycle (Non-hollow loads)
Advanced Cycle (Hollow loads)
Endoscope*
P50
35 min.
40 min.
32 min.
P110
39 min.
44 min.
37 min.
P160
43 min.
48 min.
41 min.
* Endoscope cycle: Short heating time and reduced H2O2 exposure time.
Test Cycles
Description
Test I
Penetration Test
Test II
Leakage Test
Note: Cycle times are based on a hot cycle and may vary according to load volume.
Your data, where you need it
The PlazMax line gives you easy access to its cycle data. Via USB, Ethernet or printer.
Your data, where you need it
The PlazMax line gives you easy access to its cycle data. Via USB, Ethernet or printer.
A bright multicolor LCD panel with multi-color display
Multiple access levels for added security
Generate PDF reports with graphs and tables using optional R.PC.R Software.
USB and Ethernet Ports
Tracking equipment and maintenance notifications
Technical specifications
Chamber Volume
P50: 47 Liter
P110: 109 Liter
P160: 162 Liter
External Dimensions (WxHxD/D 2-doors) inch
P50: 27.6 x 60.1 x 28.7 / 28.9
P110: 27.6 x 69.6 x 28.7 / 28.9
P160: 27.6 x 69.6 x 40.5 / 40.7
No. of Baskets (WxD) inch
P50: 1 (15.7 x 23.6)
P110: 2 (15.7 x 23.6)
P160: 2 (15.7 x 35.4)
Power (W) - Current (A)
P50: 3100 W - 13.5 A
P110: 4300 W - 18.7 A
P160: 4300 W - 18.7 A
Voltage (V) 3-Phase 50-60 Hz
P50: 230 V
P110: 230 V
P160: 230 V
Accessories & Consumables
Tuttnauer provides a comprehensive range of consumables for your sterilizer.
H2O2 Sterilizing Agent
