TPC Superb Vac Single Wet Ring Vacuum Pump WV3

Product Description

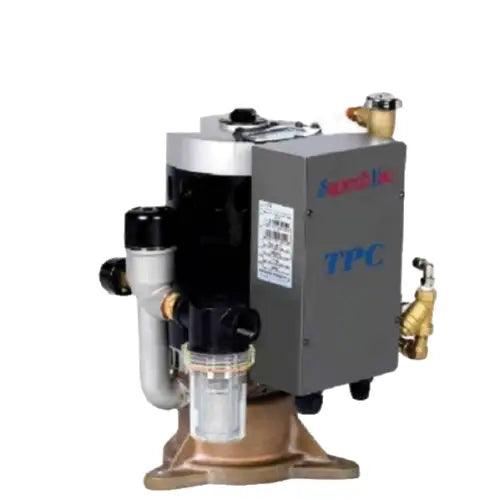

TPC Superb Vac SINGLE Wet Ring Vacuum Pump with Water Recycler and Air/Water Separator

Option:

• WV3 Superb Vac Wet Ring Vacuum- Single Head - 1 x 1.2 HP- 3 User (115V/60HZ)
• WV32 Superb Vac Wet Ring Vacuum- Single Head- 1 x 1.2 HP motor- 3 User (230V/60HZ)
• WV3R Superb Vac Wet Ring Vacuum- WV3 (110V) w/Water Recycler

Features

• Durable aluminum-bronze construction
• 110V or 220V 50/60 Hz
• Stainless steel impeller
• 2 3/8" air exhaust connection size
• Computer balanced, sealed bearings in motor
• 20Amp circuit breaker
• Large capacity, easy to clean filter with clear
• Noise level less than < 58 dB bowl for easy inspection
• 3/8" city water connection
• Available in single and twin models to accommodate 1-10 users
• 3/4" inlet connection
• 5-year full product limited warranty
• Stainless steel impeller
• Unique water recycling to save up to 80% water
• NFPA 99C level 3-compliant
• UL/CUL classified

WV3

Superb Vac(3) 1.2 HP WV3(Single):

• Water consumption without water recycling: 4L/min
• Water consumption with TPC water recycling: 8L/min
• Suction Rate: 900L/min
• Vacuum Level (1N Hg) Factory set to 10HG: 8-15 HG
• Noise Level dB (A):58
• Horse Power: 1.2 HP
• Voltage: 110V or 220V
• Frequency: 50/60Hz
• Max. users: 3
• Current (A): 8A
• Circuit Breaker: (A) 20A
• Inlet Connection Size: 3/4”
• Drain Connection Size: 1.25"
• City Water Connection Size: 3/8"
• Air Exhaust Connection Size: 2 3/8"
• Inlet Water Pressure (PSI): 10Psi / 0.7bar
• Ambient Temperature: 2 C- 40
• Product Size (LxWxH) Inches: 16.5x14x18
• Product Weight (LBS): 62lbs

Options

• #WV-AWS Single Pump Air/Water Separator $200.00
• #CP-3 Control Panel – 3 Button- Vac / Air / Water $390.00
• #CP-4 Control Panel – 4 Button- Vac / Vac / Air / Water $460.00
• #CV22 Air Compressor and Vacuum Pump Stacking Rack $780.00

Shipping

Shipping Dimensions: WV3: 17" x 18" x 20" 65 lbs.

Warranty

5-year full product limited warranty
