TPC Superb Vac(5) 2HP Vaccum Pump WV10 (Twin) 10 Users

Product Description

TPC Superb Vac(5) 2HP Vaccum Pump WV10 (Twin) 10 Users

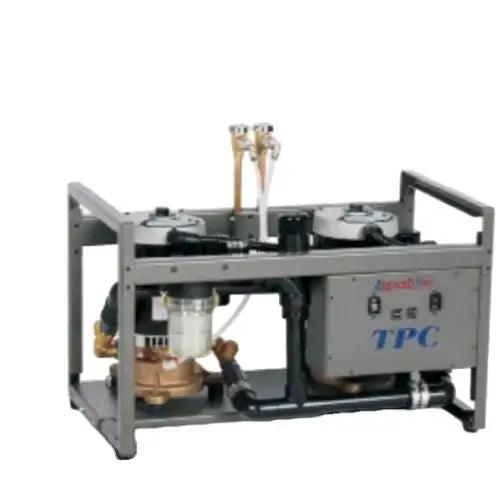

The TPC Superb Vac wet ring vacuum pump offers a quiet operation for small to medium size dental practices. Our twin TPC Superb Vac wet ring vacuum pump provides vacuum suction when operating in peak work periods. The twin pump offers back-up protection to minimize downtime and costly interruption to work flow.

Feature

TPC Superb Vac(5) 2HP Vaccum Pump WV10 (Twin)

Standard Features

• 220V 50/60 Hz
• 2 3/8" air exhaust connection size
• 20Amp circuit breaker
• Noise level less than < 58 dB Single
• Noise level less than < 65 dB Twin
• 3/8" city water connection
• 3/4" inlet connection
• Stainless steel impeller
• Unique water recycling to save up to 80% water
• NFPA 99C level 3-compliant
• UL/CUL classified
• 5 year limited warranty

WV10

Superb Vac(5) 2HP

• Water consumption without water recycling: 6L/min
• Water consumption with TPC water recycling: 1.0L/min
• Suction Rate: 3000L/min
• Vacuum Level (1N Hg) Factory set to 10HG: 8-15 HG
• Noise Level dB (A): 65
• Horse Power: 4 HP
• Voltage: 220V
• Frequency: 50/60Hz
• Max. users:10
• Current (A): 13Ax2
• Circuit Breaker: (A) 20Ax2
• Inlet Connection Size: 1”
• Drain Connection Size: 1.25"
• City Water Connection Size: 3/8"
• Air Exhaust Connection Size: 2 3/8"
• Inlet Water Pressure (PSI): 10Psi / 0.7bar
• Ambient Temperature: 2 C- 40
• Product Size (LxWxH) Inches: 28x17x18
• Product Weight (LBS): 198lbs

Options

• #WV-AWS Single Pump Air/Water Separator $200.00
• #CP-3 Control Panel – 3 Button- Vac / Air / Water $390.00
• #CP-4 Control Panel – 4 Button- Vac / Vac / Air / Water $460.00
• #CV22 Air Compressor and Vacuum Pump Stacking Rack $780.00

Shipping

Shipping Dimensions:

• L" x W: x H"
• WV6: 32" x 25" x 24" 188 lbs.
• WV6R: 32" x 25" x 24" 188 lbs.
• WV10: 32" x 25" x 24" 208 lbs

Warranty

5-year full product limited warranty

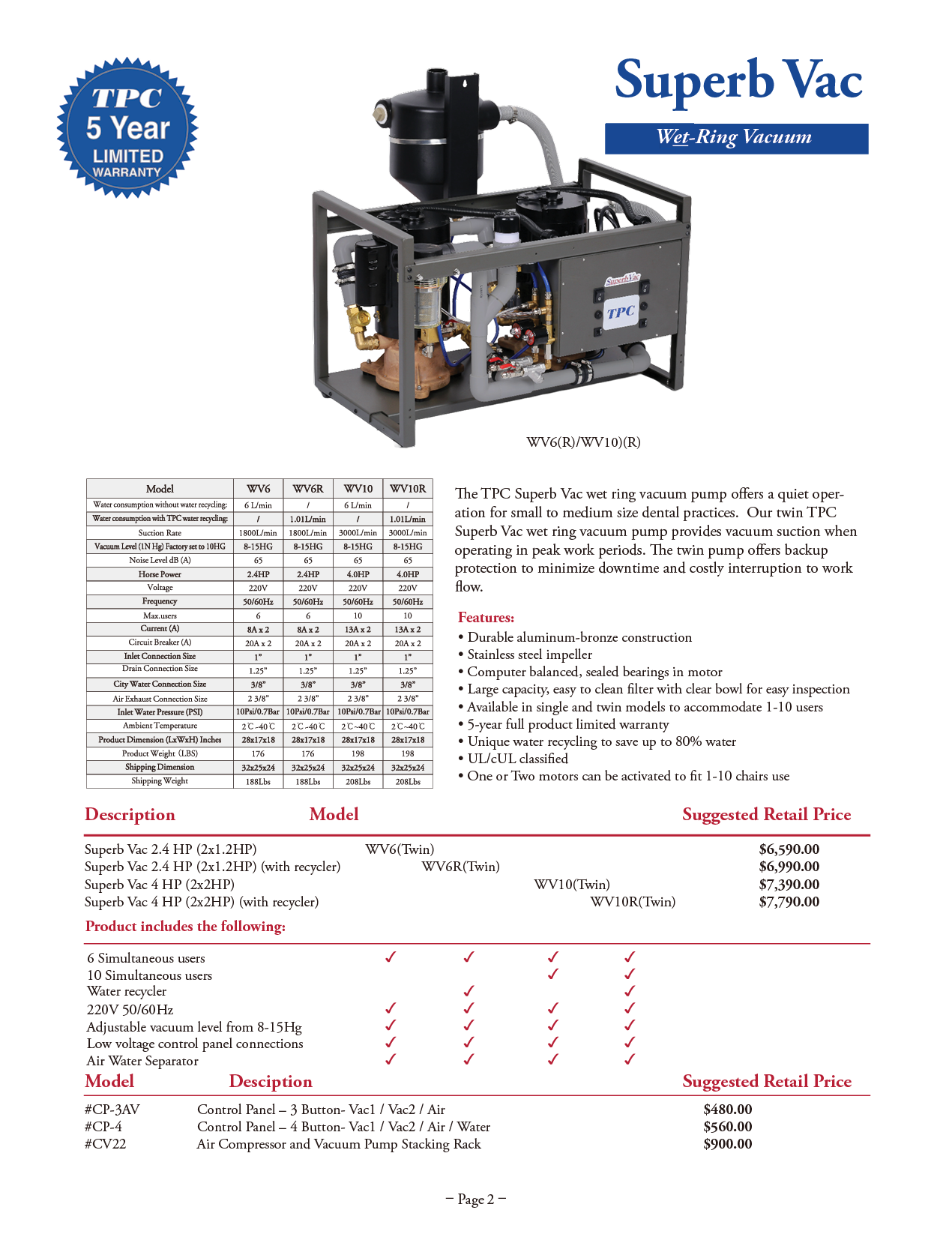

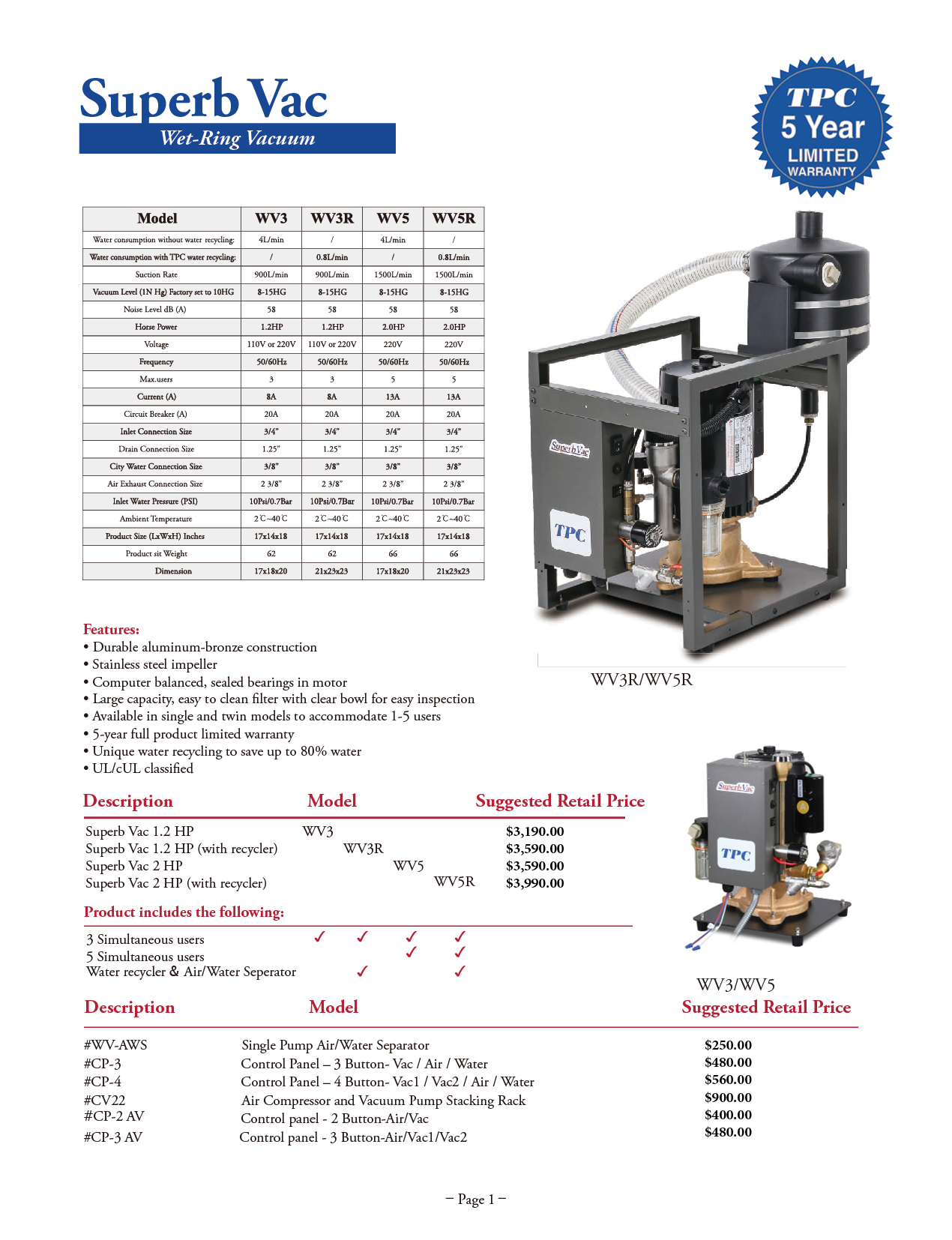

Specifications & Available Options

Review the manufacturer specifications below for the exact model and configuration. Optional accessories are sold separately unless explicitly included.

Technical Library

• Manufacturer product information
• Literature
• Manual
