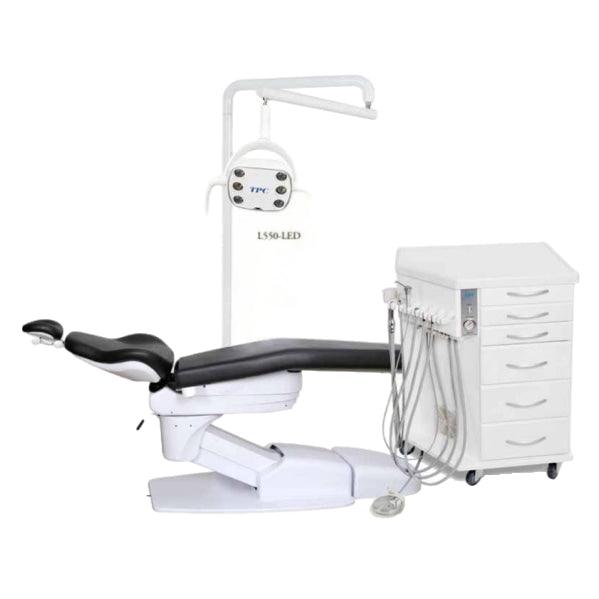

TPC Mirage2.0 Mirage Orthodontic Package MOP3000-L550LED-2.0

Mirage 2.0 Orthodontic Package MOP3000-550LED-2.0

Packages include the following:

  • 3000-2.0 Hydraulic patient chair with wide back and full lumbar support, double articulating headrest with sliding height adjustment, 30 degree swivel from left and right of center, 4 programmable positions with automatic return and foot control
  • 2375 This orthodontic mobile delivery cabinet offers a pullout writing surface, two instrument drawers, one medium and two large storage drawers for materials and supplies that fully extend and quickly remove for easy cleaning. In addition, these cabinets provide a large open space for accessories with convenient access from the front. Oversized locking dual-caster wheel
  • L550-LED Lustrous LED operatory light with Poliblock mode 8,000 - 30,000 LUX , dual axis light head rotation
  • TPCBRKT The chair bracket is included at no charge (value: $270) when purchasing the Mirage Orthodontic Package.
  • Synchronous backrest
  • Articulating dual axis headrest
  • Cast aluminum base
  • Programmable foot control
  • Short pump cover
  • Hydraulic pump for quite operation
  • Intergrated non cure mode
  • 24V DC power Supply
  • Bulb type: 4 White LEDs 2 Yellow
  • Light intensity (Lux): High 30,000; Low 8,000
  • Focal length: 27" (70 cm)
  • Illumination area: 100mm x180mm
  • Sensor mode only
  • 3 HP Automatic selection
  • 3-way Syringe
  • Vacuum package with saliva ejector and hve
  • Self contained water bottle system
  • Variable speed disc-type foot control
  • Water coolent on/off switch with flow control
  • 1 Year warranty
  • Requires central air and vacuum for plumbing
  • WIC840 Mirage flat screen monitor bracket with 16” extension $190.00
  • MO17 17” LCD multi media flat screen monitor $540.00
  • H7000 Illumination System – ISO B (5 hole) – tubing, control box, bulb, power supply $310.00
  • H7660 Illumination System – ISO C (6 pin) – tubing, control box, power supply $270.00
  • ALED55BN-A LED 5W curing light – built in to dental unit $410.00
  • TP-2005 Touch pad control – dental chair mounted $358.00
  • 3 preset, auto return, last position OMC2200 LCD monitor bracket $300.00
  • 53016-L-100 Disposable Solids Collector Trap 2 1/8" (Pack of 100) $45.00
  • OMC-ST81 Optional Stone Surface on OMC 2375, Color Artic $380.00 OMC-ST82 Optional Stone Surface on OMC 2375, Color White $380.00
  • OMC-ST85 Optional Stone Surface on OMC 2375, Color Cream $380.00
  • OMC-ST86 Optional Stone Surface on OMC 2375, Color Bamboo $380.00
  • M4000-09 Optional Magnetic Headrest $420.00

TPC Mirage2.0 Mirage Orthodontic Package MOP3000-L550LED-2.0

TPC Mirage2.0 Mirage Orthodontic Package MOP3000-L550LED-2.0

Packing Dimensions (L x W x H) Weight

  • Chair: 54 x 34 x 31 300 lbs.
  • Cushion: 51 x 24 x 10 27 lbs.
  • Light 26 x 14 x 8 21 lbs.
  • Cabinet 28 x 26 x 37 155 lbs.

All returns require prior authorization. Returns must be authorized by TPC within 7 days of date received by the customer.
• Contact Customer Service for Return Authorization Number
• Returned products are subject to a 25% restocking charge
• All returned goods must have Return Authorization Number
• All returned goods must be shipped prepaid
• All authorized returns must be received by TPC in original packaging, accessories, documentation and in original condition
for credit considerations
• All outbound repair / warranty freight charges are the responsibly of the customer.
• No returns accepted after 14 days.
Special Orders:
• Special order items and custom made products are not returnable for credit
Minimum Orders:
• Orders less than $50.00 will incur an additional $5.00 handling charge.
• All drop ship orders will incur an additional $5.00 fee.

All of our products sold are guaranteed to be free from defects in workmanship and materials for one year from date of purchase, unless otherwise stated. TPC will repair or replace any defective part at no charge. TPC will not be responsible for labor charges or shipping charges to / from the TPC facility. This guarantee does not cover normal wear or stains on surface finish. The guarantee does not cover damage resulting from improper installation, misuse or accidents incurred in shipping and handling. All claims against the freight carrier must be initiated at the time the damaged items are received. The claim is the responsibility of the customer. We are improving our products on a continuous basis. We reserve the right to make modifications without the need for prior notification and are not obliged to modify previously manufactured items. Bulbs and batteries are not covered under any type of warranty.

Products: Warranty Period:
Patient Chairs 5 year limited

Delivery Units 5 year limited:
Flex Arm
Rigid Arm
Light Post
Brake assembly
Unit head frame and holder bar
PMU (excluding plastic covers- top, front, sides)
Tri Block

Covered under 2 year warranty:
2015 & 2015.2.0 Cuspidor.
Solenoid Valves & Coil / Control PCB

Covered under 1 year warranty:
Handpiece tubing
Syringe tubing
Hve & Saliva ejector tubing
Internal plumbing (only defects in workmanship)
Plastics (hangers, unit head cover, side box covers, 4 position asst holder, arm caps, j box frame and cover)
Air brake push button valve
Hve & Se valves & 3 way syringe
Block gasket diaphragm
Cuspidor bowl and frame assembly
Telescoping assistants arm


LED Operatory Lights 2 year

Seating 1 year


Curing & Bleaching Systems 1 year

Mobile Cabinets 1 year


Imaging Products 1 year

Air-Driven Handpieces 1 year


Scaling Products 1 year

Amalgamator 1 year

Extended Manufacturer Warranty (selective models):
H6000, H6005, H6025, H7005 Lubrication System 2 year
LED Curing Lights (All Models) 2 year
AdvanceCAM Intraoral Camera System(s) 2 year

Limited Manufacturer Warranty (selective models):
6 month Manufacturer Warranty (selective models) Fiber optic systems, S333, M333, QS222, QM222, ELCA760, ELS736.

Total Satisfaction Policy
If you cancel your purchase for any reason within 7 days from date of receipt, we'll refund your purchase price minus shipping costs and less a 15% re-stocking fee (excluding intraoral products). You are responsible for the cost of shipping the product back to us.



Note: Some equipment and products are ready for shipment. whereas others are manufactured when the order is placed. Please ask the delivery time before purchasing.
