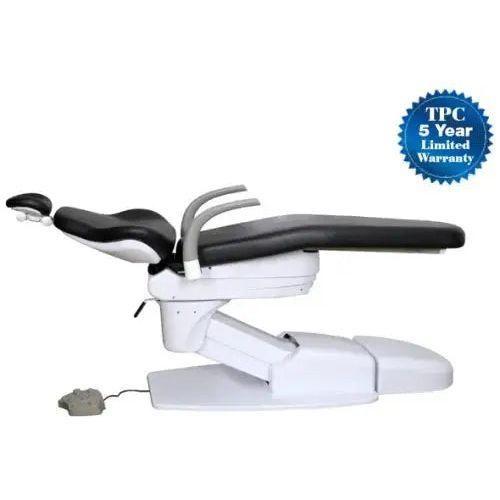

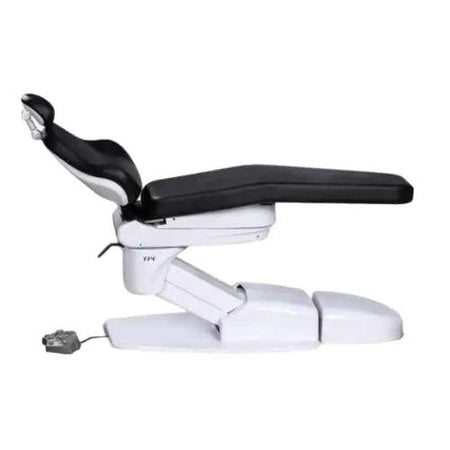

TPC Mirage 2.0 Orthodontic Hydraulic Dental Chair 3000-2.0

Product Description

TPC Dental Mirage 2.0 Orthodontic Hydraulic Patient Chair 3000-2.0

Mirage 2.0 Orthodontic Hydraulic Patient Chair #3000-2.0

Packages include the following:

• Two programmable positions
• One preset exit position
• Electronic foot control with auto return function
• Built-in fuse / surge protection
• Toe guard protection to prevent scuffing
• All-metal construction
• Safety shut-off base plate
• Double articulating headrest, adjustable for height
• and wheelchair positioning
• Locking swivel, 60 degree
• Seamless Upholstery
• Coordinated leg rest tilt
• Input voltage 110V or 220V

Specifications

• Lifting/lowering mechanism: Hydraulic, cantilever type
• Initial height/stroke: 15.5” / 15”
• Backrest reclining angle: 0° (Horizontal) – 70°
• Seat tilting: 10° – 20°, synchronized with backrest
• Preset position: Microcomputer control. Three preset position, autoreturn, last position
• Chair rotation angle: 30° left / 30° right of centerline
• Headrest: Dual axis type
• Safety shut-off plate: Under the main link
• Emergency stop: Any switch can cancel chair movement
• Warranty 5 Year Limited

Features

• Synchronous backrest
• Articulating dual axis headrest
• Cast aluminum base
• Programmable foot control
• Short pump cover

Dimensions

Packing Dimensions (L x W x H) Weight

• Chair: 54 x 34 x 31 300 lbs.
• Cushion: 51 x 24 x 10 27 lbs.

Options

• TP-2005 Touch pad control – unit head or dental chair mounted, 3 preset, auto return, last position $ 358.00

• TPCBRKT TPC Post mount chair bracket $ 290.00

• PC-1000-DU Replacement Dental Chair Upholstery-Wide Back $850.00

• Duration Vinyl- Specify Color and Product Code PC-1000-Vinyl-UC Upcharge Non-Standard Dental Chair Upholstery-Wide Back $490.00

• Vinyl- Specify Color and Product Code PC-1000-ULTR-UC Upcharge Ultra leather Dental Chair Upholstery-Wide Back $760.00

• Ultra leather- Specify Color and Product Code PC-1000-PR-UC Upcharge Nauga Soft Dental Chair Upholstery-Wide Back $300.00

• Nauga Soft- Specify Color and Product Code ( PR50, 49, 47, 40, 37 ) M4000-09 Magnetic Pillow Headrest $420.00

Warranty

Warranty Information (All stated warranties are intended for USA market ONLY):

All of our products sold are guaranteed to be free from defects in workmanship and materials for one year from date of purchase, unless otherwise stated. TPC will repair or replace any defective part at no charge. TPC will not be responsible for labor charges or shipping charges to / from the TPC facility. This guarantee does not cover normal wear or stains on surface finish. The guarantee does not cover damage resulting from improper installation, misuse or accidents incurred in shipping and handling. All claims against the freight carrier must be initiated at the time the damaged items are received. The claim is the responsibility of the customer. We are improving our products on a continuous basis. We reserve the right to make modifications without the need for prior notification and are not obliged.

Products: Warranty Period:

• Products: Warranty Period: Patient Chairs 5 year limited
• Delivery Units 5 year Limited
• Seating 1 year
• Curing & Bleaching Systems 2 years
• Mobile Cabinets 1 year
• Imaging Products 1 year
• Air-Driven Handpieces 1 year
• Scaling Products 1 year Amalgamator
• 1 year Air Compressor 5 Year limited
• Vaccumm Pump 5 year limited

Specifications & Available Options

Review the manufacturer specifications below for the exact model and configuration. Optional accessories are sold separately unless explicitly included.

Upholstery Colors

Standard LK vinyl colors: Sand (LK-03), Stormy (LK-04), Taupe (LK-08), Grey Stone (LK-11), Orange (LK-27), Cobalt (LK-31), Desert Rose (LK-34), Grey Teal (LK-49), Atlantis (LK-59), Black (LK-72). Screen colors may vary; confirm with a physical swatch.

Technical Library

• Manufacturer product information
• Color Chart
