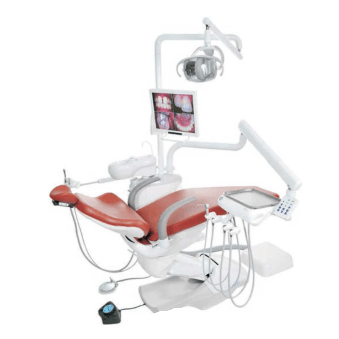

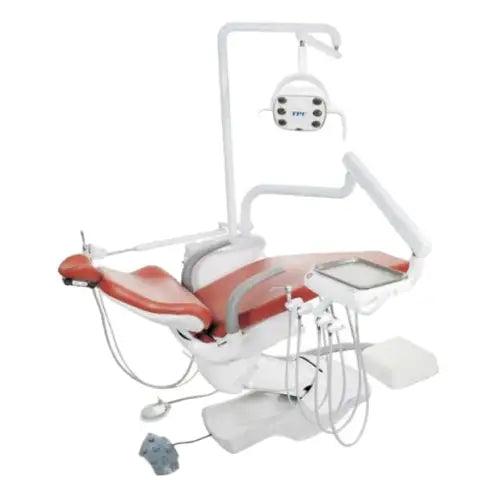

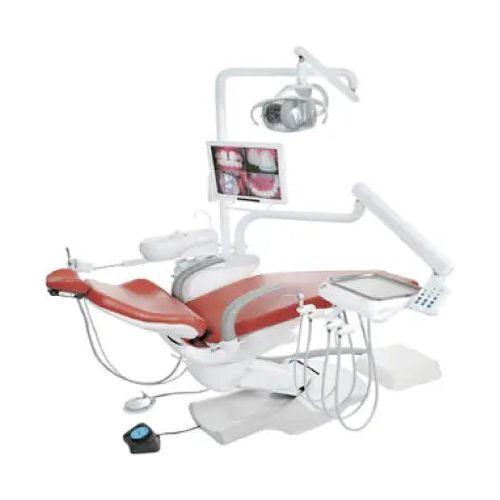

TPC Mirage 1.0 Chair Mounted Operatory System MP2000-550LED-1.0

Original price $7,995.00 - Original price $7,995.00
Original price
$7,995.00 - $7,995.00
Current price $7,995.00

  • Mirage Operatory Package with Cuspidor MP2000-550LED-1.0
  • Mirage Operatory Package with Assistant’s Instrumentation MP2015-550LED-1.0

Packages include the following:

  • 4000-1.0 Hydraulic patient chair with wide back and full lumbar support, rotating armrests left or right, double articulating headrest with sliding height adjustment, 30 degree swivel from left and right of center, 3 programmable positions with automatic return and foot control.
  • Asepsis 3 Handpiece automatic control with coolant controls, flex arm with air brake, diaphragm block design, wet/dry variable speed foot control, deluxe utility center with air /water filters and regulators, master shut off valves. Includes 3 way syringe and light post with cutout for internal wires and monitor bracket.
  • L550-LED Lustrous LED post mounted light with adjustable intensity, 8,000-30,000 Lux.
  • 2000-1.0 Porcelain cuspidor with timed bowl rinse and cup filler, telescoping 4 position assistant’s package, Hve and saliva ejector, water / air quick disconnects, solids collector and clean water system.
  • 2015-1.0 Asepsis telescoping 4 position assistant’s package, Hve and saliva ejector, water / air quick disconnects, solids collector.


  • TPC3WAY-PRT Additional autoclavable 3 way syringe with tubing $78.00
  • P2335+TB Deluxeautoclavable Hve Long valve with tubing $67.00
  • WIC800 Standard flat screen monitor bracket $118.00
  • WIC825 Deluxe flat screen monitor bracket with 16” extension $390.00
  • WIC840 Mirage flat screen monitor bracket with 16” extension $190.00
  • MO17 17” LCD multi media flat screen monitor $540.00
  • A800N-1 Advance 800 piezo scaler – built in $530.00
  • H7000 Illumination System – ISO B (5 hole) – tubing, control box, bulb, power supply $310.00
  • H7040 Illumination handpiece tubing – 5 hole $120.00
  • H7070-LED Fiber optic bulb cartridge $58.00
  • H7660 Illumination System- ISO C (6 pin) – tubing, control box, power supply $270.00
  • H7045 Illumination handpiece tubing- 6 pin $120.00
  • ALED55BN-A LED 5W curing light – built in to dental unit $410.00
  • TP-2005 Touch pad control – unit head or dental chair mounted 3 preset, $358.00 auto return, last position
  • 53016-L-100 Disposable Solids Collector Trap, 2 1/8' (pack of 100) $45.00
  • 2000-C Mirage Cuspidor $700.00
  • TPE-2011 Touch pad Control - Chair & Electric Motor System touch pad $460.00
  • EMB-901 Built in Electric Motor System $1,790.00
  • XV100 Super thin X-ray film viewer $140.00
  • XV150-R X-ray film viewer bracket (curved) for TPC Mirage unit only $80.00

Packing Dimensions (L x W x H) Weight

  • Chair: 54 x 34 x 31 310 lbs.
  • Cushion: 51 x 24 x 10 27 lbs.
  • Unit: 51 x 21 x 18 53 lbs.
  • Unit: 19 x 21 x 23 36 lbs.
  • Dental Light: 38 x 17 x 15 28 lbs.
  • Cuspidor 20 x 13 x 14 18 lbs.

Warranty Information (All stated warranties are intended for USA market ONLY):

All of our products sold are guaranteed to be free from defects in workmanship and materials for one year from date of purchase, unless otherwise stated. TPC will repair or replace any defective part at no charge. TPC will not be responsible for labor charges or shipping charges to / from the TPC facility. This guarantee does not cover normal wear or stains on surface finish. The guarantee does not cover damage resulting from improper installation, misuse or accidents incurred in shipping and handling. All claims against the freight carrier must be initiated at the time the damaged items are received. The claim is the responsibility of the customer. We are improving our products on a continuous basis. We reserve the right to make modifications without the need for prior notification and are not obliged.

Products: Warranty Period:

  • Products: Warranty Period: Patient Chairs 5 year limited
  • Delivery Units 5 year Limited
  • Seating 1 year
  • Curing & Bleaching Systems 2 years
  • Mobile Cabinets 1 year
  • Imaging Products 1 year
  • Air-Driven Handpieces 1 year
  • Scaling Products 1 year Amalgamator
  • 1 year Air Compressor 5 Year limited
  • Vaccumm Pump 5 year limited
In stock
