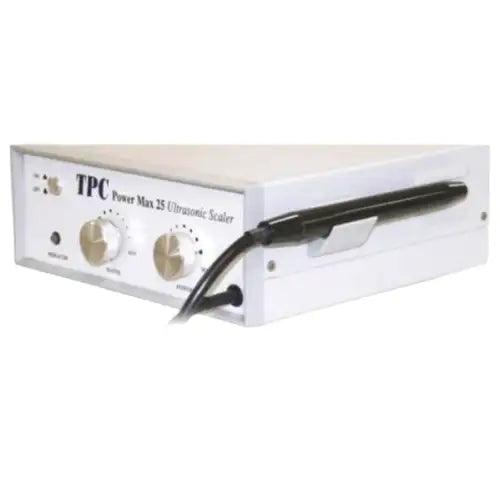

Tpc Advance Powermax25 Ultrasonic Scaling System PM25

TPC Advance - PowerMAX25 Ultrasonic Scaling System (with insert), Model PM25

PACKAGE INCLUDES:

• PowerMAX ultrasonic scaler
• 25K universal scaler insert
• Foot control
• TPC 1 Year Warranty

Features

Available in 25 KhzPrecision automatic tuning circuitryLinear power control for exact power settingAccepts Cavitron*, P, SLI, TFI, and FSI scaler insertsCompact and lightweightAuto-ranging 110-240 VAC inputIncludes one ultrasonic scaler insert and foot control

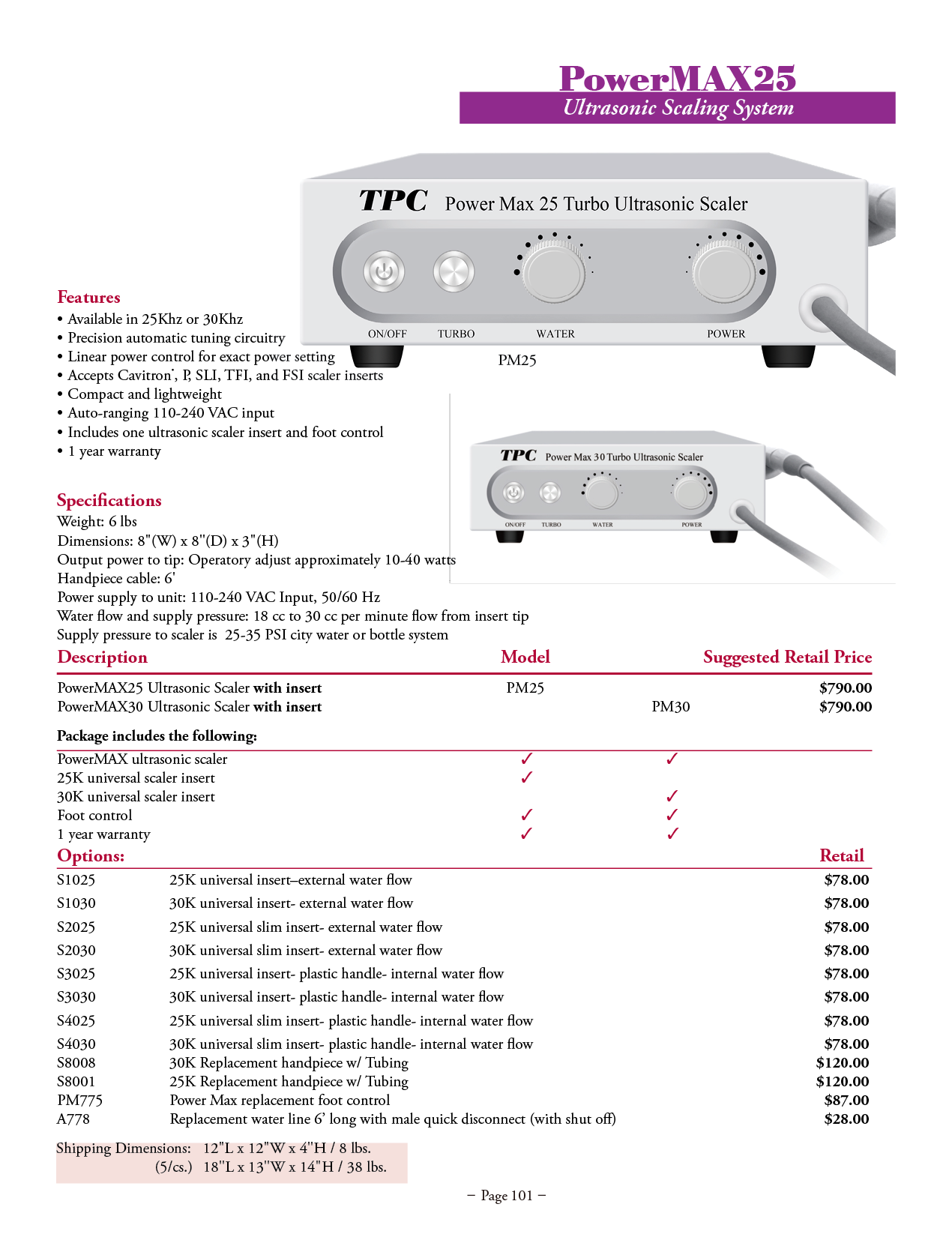

Specifications

• Output power to tip:
• Operatory adjust approximately 10-40 watts
• Handpiece cable: 7.5 feet
• Power supply to unit: 110-240 VAC Input, 50/60 Hz
• Water flow and supply pressure: 18 cc to 30 cc per minute flow from insert tip
• Supply pressure to scaler is 25-60 PSIG city water or bottle system
• Shipping Dimensions: 12”L x 12”W x 5”H / 8 lbs.

Options

• S1025 - 25K universal insert - external water flow
• S2025 - 25K universal slim insert - external water flow
• S3025 - 25K universal insert - plastic handle - internal water flow
• S4025 - 25K universal slim insert - plastic handle - internal water flow
• S8001 - 25K Replacement handpiece w/ Tubing
• S1030 - 30K universal insert - external water flow
• S2030 - 30K universal slim insert - external water flow
• S3030 - 30K universal insert - plastic handle - internal water flow
• S4030 - 30K universal slim insert - plastic handle - internal water flow
• S8002 - 30K replacement handpiece w/ Tubing
• PM775 - Power Max replacement foot control
• A778 - Replacement water line 6 feet long with male quick disconnect (with shut-off)
