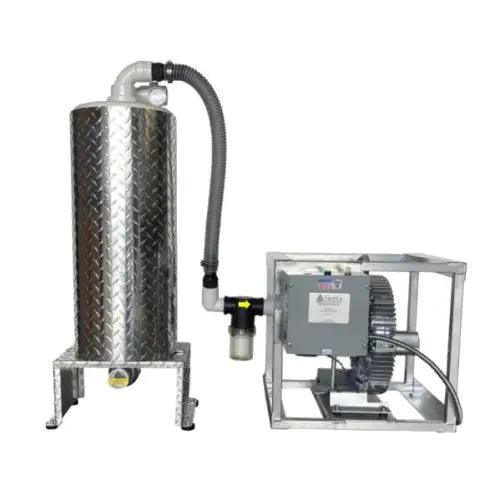

TV-10 10 Years Single Dry Vacuum System 1.75HP (1-5 users)

 SPECIFICATIONS:

• Description Specification (TV-10)
• Voltage 230 V AC
• Operating load 8.3 Amps
• Start-up load 14 Amps
• Frequency 50 –60 Hz
• Low voltage remote 24 V AC
• Max operators 5 users (5 HVE) or (10 SE)
• Tank capacity 12 Gallons
• Air flow 62 cfm
• Ambient temp 41° -104°F
• Max operating temp 214° F
• Decibels 61 decibels
• Thermal Safety Switch YES

TANK SPECIFICATIONS:

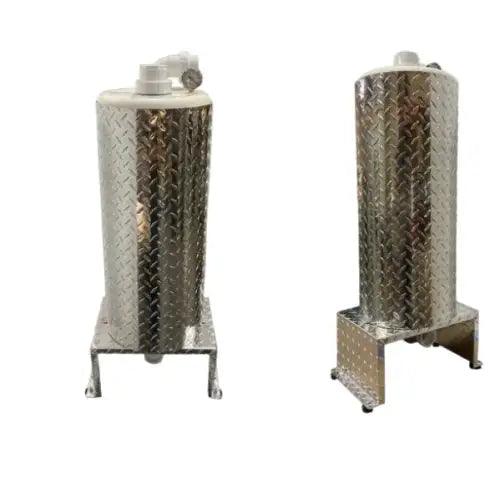

• TANK: V.A.S.
• Weight: 43 lbs
• Length: 15”
• Width: 17”
• Height: 40”
• Capacity: 12 Gal.

SITE REQUIREMENTS:

Description Specification (TV-10)

• Circuit breaker rating 15 Amp (230 Volts)
• Minimum wire size 14 Gauge
• Vacuum piping 2” trunk -1 ½’ branch (PVC) Minimum exhaust vent pipe 2” High temperature flex hose, 2" SCH. 80 Gray PVC, 2" galvanized, 2" copper, 3" CPVC.
• (DO NOT USE 90 DEGREE ELBOWS) (Over 50 feet requires 3-4")
• Minimum drain line 1 ½” flex pipe 1 ½” Sch. 40 PVC

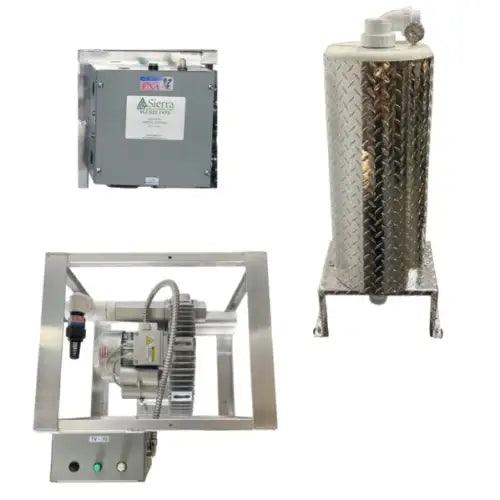

• WHAT’S INCLUDED 7 a) X1 90 Degree Elbow…………………….………………..….......................................……..(1 ½” mpt x 1 ½” fpt)
•  X1 90 Degree Elbow………………………………..………………..................….…...(1 ½” male slip x 1 ½” fpt )
•  X2 Black Nipple..……….....……………….….. ….......................................................(1 ½” mpt x 1 ½” Barbed)
•  X2 Stainless Steel Hose Clamps………..…….……..……………………......………….....….…..(1 13/16” -2 ¾”)
•  X1 Vacuum Flex Hose………….……………………………..…………....…..…..…………(1 ½” dia. x 5’ Length)
• X1 Low Voltage Controller…….…………………...…….……………….....…...…….(24 Volt, Remote Capability)
•  X1 VAS Collection Tank……………..………....…………......…….....(12 Gallon, 1 ½” Female Slip connections)
•  X1 Motor Assembly….............….......................................……(1.75 HP, 1 ½” fpt inlet. 2" fpt Outlet “Exhaust”)
• X1 Vacuum Relief Valve/Tee........................................................................(1 ½" Male Slip x 1 ½" Female Slip)
•  X1 Filter.......................................................................................................................(1 ½" fpt x 1 ½" male slip)
•  X1 TV-10………………………...…..……………………………………......….……………….…….USER MANUAL
•  X1 Warranty Card…………….….………………………………….….....……(Fill Out And Return within 30 days)
