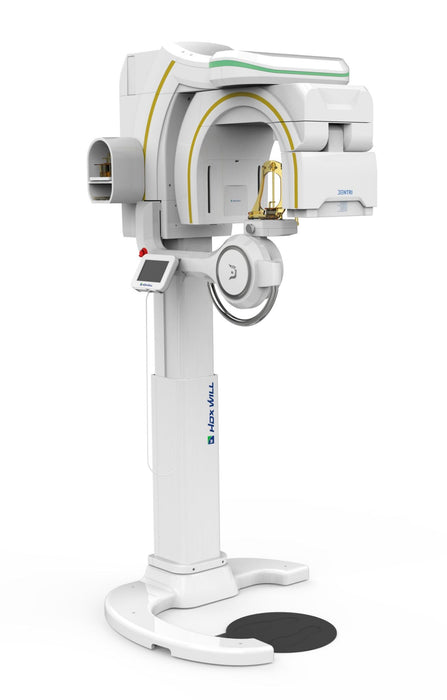

Ritter Dentri Max CBCT — FOV 18 × 16.5

Ritter Dentri Max CBCT — FOV 18 × 16.5

by Ritter Dental
$87,000.00 - $87,000.00
$87,000.00
$87,000.00 - $87,000.00
$87,000.00
Shipping estimate

Estimated shipping: $1,000.00

Estimated total before taxes: $88,000.00

48 contiguous U.S. states only. Estimate for this product and quantity, based on order value. Other cart items and discounts may change the shipping tier. Final shipping is shown at checkout.

Product Description

Dentri MAX Specifications
Model Panorama Cephalo CT FOV(D x H) 18 x 16.5 cm FOV(D x H) 16 x 9 cm Free FOV Model Scan
Dentri Max x   x x x x x
Dentri S Max x x (Scan Type) x x x x x
Dentri C Max x x (One Shot Type) x x x x x
  Mode Normal Low Dose
Scan Time (Adult) CBCT Dental Arch, Sinus FOV 16 × 9 cm 24 s 8 s or 12 s, 24 s
FOV 18 × 16.5 cm 24 s or 36 s 16 s or 24 s 24 s or 36 s
Free FOV, Ear, Nose, TMJ 24 s 8 s or 12 s, 24 s
PANO Teeth Full Arch 14 s 7 s
Bitewings 8 s 6.2 s
Bitewing Right (or left) 4 s 3 s
TMJ Open / Close
(Capture Both)		 6 s 3.2 s
Open / Close
(Select One)		 3 s 1.6 s
Sinus 10.2 s 5.2 s
CEPH
(Scan Type)		 Lateral Large Area 8 s 4 s
Lateral Small Area 6 s 3 s
Frontal(PA)/Carpus/
Waters/SMV		 8 s 4 s
CEPH (One Shot Type) 0.5 s, 1.0 s, 1.5 s, 2 s
Model Scan 24 s
  Mode Normal Low Dose
Scan Time (Child) CBCT Dental Arch Sinus FOV 16 × 9 cm 24 s 8 s or 12 s, 24 s
FOV 10x14.5 cm 24 s or 36 s 16 s or 24 s 24 s or 36 s
Free FOV, Ear, Nose, TMJ 24 s 8 s or 12 s, 24 s
PANO Teeth Full Arch 12.2 s 6.2 s
Bitewings 6.2 s 4.2 s
Bitewing Right (or left) 3.0 s 2.2 s
TMJ Open / Close
(Capture Both)		 4.2 s 2.3 s
Open / Close
(Select One)		 2.2 s 1.2 s
Sinus 9.2 s 4.8 s
CEPH
(Scan Type)		 Lateral Large Area 6 s 3.2 s
Lateral Small Area 3.2 s 2.5 s
Frontal(PA)/Carpus/
Waters/SMV		 7 s 3.5 s
CEPH (One Shot Type) 0.5 s, 1 s, 1.5 s, 2 s
Model Scan 24 s
Field of View (CT)
(cm × cm)
(Diam. × Height)		 18 × 16.5(Adult, Stitch), 16 x 9(Child, Non-Stitch)
10 x 14.5(Child, Stitch), 10 x 8(Child, Non-Stitch)
Free FOV (min. 3 × 3)
Voxel Size (CT) (mm) 0.10, 0.15, 0.20, 0.25, 0.30
Focal Spot (mm) 0.5
Reconstruction Time min. 10 s (standard recon, MAR off)
Patient Alignment Vertical Column: Electric motion
Column: Electric motion
Temple Support: Motion
Control Device Alignment : Touch Panel
Exposure & Imaging Acquisition: Workstation
Install Standing
Tube Voltage 60 kV to 90 kV
Tube Current 4 mA to 10 mA
Patient Position Standing (Wheelchair accessible)
Detector Type CT & Panorama TFT: a-Si
One-Shot Type Cephalo TFT: a-Se
Scan Type Cephalo CMOS
Gray Scale CT & Panorama 16 bits
One-Shot Type Cephalo 14 bits
Scan Type Cephalo 14 bits
Dimensions (W × D × H)
(mm × mm × mm) (in × in × in)
(Tolerance: 5 %)
DENTRI Max: 1201 × 1361 × 2455 mm (47.3" × 53.6" × 96.7")
DENTRI C Max: 1999 × 1361 × 2455 mm (78.7" × 53.6" × 96.7")
DENTRI S Max: 1941 × 1361 × 2455 mm (76.4" × 53.6" × 96.7")
System Weight
(Tolerance: 10 %)
DENTRI Max: 243 kg (536 lbs)
DENTRI S Max: 270 kg (595 lbs)
DENTRI C Max: 260 kg (573 lbs)
Product Dimensions
Dentri α
Dentri Cα
Dentri Sα
Configuration

Price is for the base model. Cephalometric and other family configurations shown require a separate quotation.

Brochures and Resources

Manufacturer / supplier product information

Ritter Dental equipment catalog
