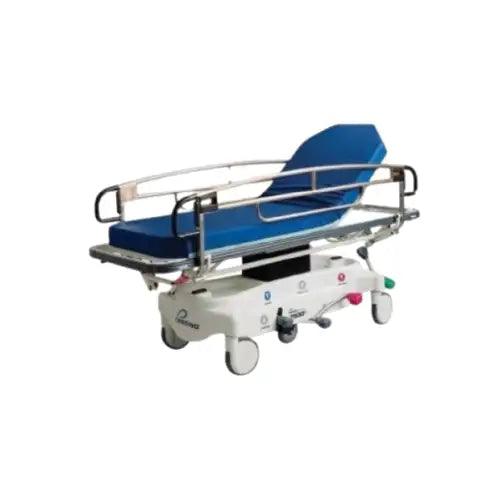

Pedigo Wide Transport/Trauma Stretcher 7500-W
Pedigo Wide Transport/Trauma Stretcher 7500-W7500 Series
Pedigo’s 7500 Series Stretcher allows for the transfer of patients easily and comfortably with a load capacity up to 750 pounds. Superior stability, mobility, and braking capabilities make the 7500 versatile for all your department needs such as OR, ED, PACU, Patient Transportation, Radiology or Cath Lab.
Easy to wipe clean and disinfect, full length tuck-away side rails allow for easier patient transfer by creating a zero transfer gap. Rails feature a release latch centrally located on either side of the litter top under the patient surface.
Oxygen Tank Holder:
Pedigo’s ergonomic Quick-Release O2 Tank Holder is side mounted and conveniently located under the patient surface to reduce caregiver bending. (US Patent 7,865,984 B2)
IS6™ – Instant Steer Six Wheel Steering:
The two IS6™ wheels are centered directly under the chassis for increased maneuverability and control. Dual ball bearing wheels feature a softer wheel tread for improved grip and traction.
CENTER COLUMN SUPPORT:
Sturdy steel column with single hydraulic lift cylinder design uses sixteen precision ball-bearings to smoothly raise and lower the patient.
Hydraulic height adjustment foot pedals:
Hydraulic Foot Pedals are located on each side of the stretcher within the patient care zone. Color-coded pedals and function graphics are quickly and easily understood.
The 7500 Series Stretcher has 5-⅞” H of clearance between floor and cowling to easily accommodate and utilize patient lifts.
- 750 lbs. weight capacity
- Instant Steer 6 Wheel Steering (IS6)
- Side rails – full length, dual release
- Integrated push/pull handles
- Center column design with precision ball bearings
- Quick-Release O2 Tank Holder (US Patent 7,865,984 B2)
- Positive/negative Trendelenburg dual pneumatic assist cylinder
- Pneumatic assist Fowler (600 N 135# force)
- Mechanical Level Lock
- Brake & Steer activated foot pedals
- Dual side-mounted hydraulic foot pedals
- Four corner IV pole receptacles
- Four restraint strap positions
- Full PVC perimeter bumper
- 8″ easy mobility casters
- Latex Free
- Weight Capacity: 750 lbs
- Overall length: 83″
- Overall Width: 29.5″
- Height Range – Low: 23″
- Height Range – High: 32.75″
- Fowler Backrest: 0º-90º
- Trendelenburg: +12º
- Reverse Trendelenburg: -7º
- Patient Surface: 77″ x 27″
- Side Rails: 14″ x 76″
- Casters: 8″
