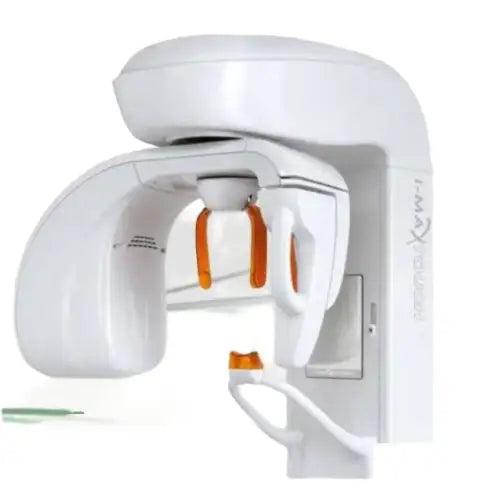

Owandy I-MAX Touch 3D Cone Beam and Panoramic X Ray

Universal3D volume

The high volume Max Touch 3D (ø93mm x H83mm) delivers acquisition in one single image, covering the entire jaw, including impacted molars, regardless of patient morphology.

Multi FOV

The I-Max Touch 3D multi FOV tridimensional imaging system is an essential tool for identifying and analysing complex cases in implantology and guided surgery, as well as dental surgery, endodontics, periodontics, and general practice.

The following volumes can now be acquired:

  • Mandibular: 93x53mm
  • Maxillary : 93x43mm

HD sensor

The high-contrast HD image generated by the flat panel sensor enables the practitioner to make an accurate diagnosis in seconds.

3 in 1: 3 three acquisition modes in a single device

The I-Max Touch 3D panoramic unit is an economical, upgradeable, high quality imaging solution. With three complete programs (Pan / Ceph / 3D), you can perform 3D examinations and also take true panoramic shots (not just reconstructed from 3D volume) and cephalometric images (optional).

The only turnkey system of its kind in the world

The combination of the I-Max Touch 3D high-performance panoramic unit with SimPlant® Pro, one of the top therapeutic 3D planning software packages, offers precise and dependable planning and simulation of your implant work.



  • 3D Rotation:
  • 200° (180° ATM)
  • Rotation time:
  • 20 s
  • Exposure time:
  • 8 s (pulse generator)
  • Digital sensor:
  • amorphous silicon panel
  • Area:
  • 130 x 130 mm, 512 x 512 pixels
  • F.O.V. (Field Of View):
  • 93 x 83 mm / 93 x 53 mm / 93 x 43 mm
  • Voxels:
  • 92 μm
  •

    Owandy I-MAX Touch 3D Cone Beam and Panoramic X Ray



    Owandy I-MAX Touch 3D Cone Beam and Panoramic X Ray



    video

    Brochure

    brochure

    Note: Some equipment and products are ready for shipment. whereas others are manufactured when the order is placed. Please ask the delivery time before purchasing.
