Description

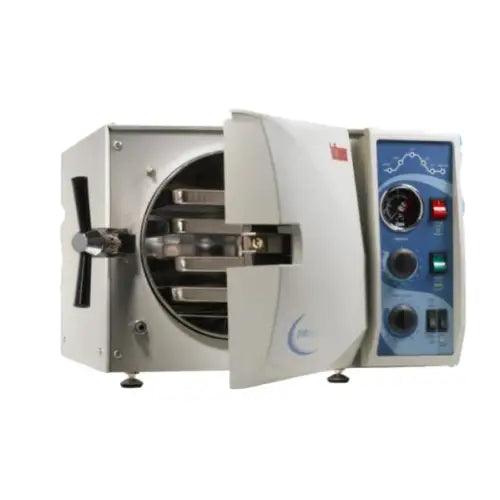

New Tuttnauer 2540MKA Quick-Cycle Manual Steam Sterilizer
The only manual autoclave with closed door drying.
Fast cycles without compromising patients' safety! T-Quick cycles deliver dry instruments, no wicking and no recontamination to put patients at risk. Set it and forget it! Sterilizes and dries without the need to supervise.
Brochure:
Fast, efficient, space-saving powerhouse
Packed with features for the fastest, most versatile operation, the T-Quick delivers outstanding performance, speed, alongside unmatched safety features and intuitive controls. Everything you need for the most demanding high volume environments.
Post Covid-19 Chairside sterilization
Chairside sterilization is no longer recommended due to aerosols. The T-Quick autoclave solves this issue.
Sterilize more often
More loads throughout the day vs. full loads
Fast cycles
Faster cycles that deliver dry instruments and no wicking
Closed door drying
Your equipment will dry without having to open the door, saving you time
Simple Drainage
Valve is conveniently located at the front to allow quick and easy reservoir drainage
Overheating Protection
The dual safety thermostat and automatic shut-off deliver reliable protection from overheating
Sterilization Programs
| Cycle Programs | Load Type | Cycle Time * |
|---|---|---|
| Unwrapped 134 | Unwrapped Instruments | 11 minutes |
| Wrapped 134 | Wrapped Instruments | 15 minutes |
| Unwrapped delicate 121 | Unwrapped Delicate Instruments | 25 minutes |
| Wrapped 121 | Wrapped Delicate Instruments | 25 minutes |
| Unwrapped | Single Instruments |
9 minutes |
* Cycle times are based on:1 kg standard loads (including drying), Warm chamber (and subject to load size)
Control Panel
Easy-to-use control panel with pressure gauge.
Technical specifications:
- Overall Dimensions (DxWxH) 20” x 14.3” x 21.7" (W x H x D) 508mm x 362mm x 550mm) (W x H x D)
- Chamber Volume 23 Liter 6.1 Gallon
- Chamber Dimensions 10” x 18.4” (Diameter x Depth) 250mm x 467mm (Diameter x Depth)
- Tray Capacity 4 Trays
- Standard Cassette Capacity 3 full
- Tray Dimensions 16.3” x 6.7" x 0.8” (414mm x 168mm x 20mm)
- Voltage & Frequency 230V 50-60Hz
- Power & Current** 2200W 9.6A
- Warranty 1 year parts and labor
NOTES
* Standard full size cassette is 8” x 11”
** Model T-Quick requires a voltage between 220V and 235V for proper operation. When applicable a buck/boost transformer (0.5 kVA) may be required.
** Model T-Quick requires a voltage between 220V and 235V for proper operation. When applicable a buck/boost transformer (0.5 kVA) may be required.
Designed to meet the most current sterilization standards
Standards
ASME
UL/EN 61010-1
FDA
ISO 13485:2003
ISO 9001:2000
Aligns with AAMI guidelines
