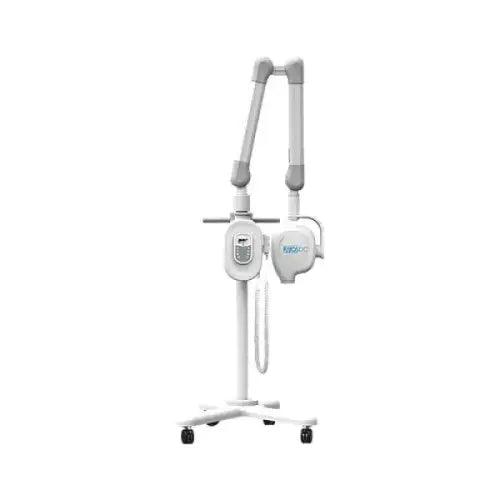

MOBILE INTRAORAL X-RAY – MOBILE INTRASKAN 9992720300-HD

MOBILE INTRAORAL X-RAY – MOBILE INTRASKAN 9992720300-HD

MOBILE INTRAORAL X-RAY – MOBILE INTRASKAN

• One Unit for Multiple Operatories: Make your X-Ray unit work for you by leveraging your investment across many different operatories.
• Easy Installation: No wall mounting or invasive construction work to your office.
• Small Footprint: Compact design allows it to fit in many tight spaces.
• Best in Class Performance: All the same dosage and image quality advantages of Intraskan DC, but now it’s mobile!

Features:

• Line Voltage 110V + 10% 60Hz
• Line Current 8 A
• Tube Potential 60 to 70 kVp
• Tube Current 4 to 8 mA
• Exposure Time 0.04-4s
• Min.Inherent Filtration 2.5 mm Al Eqv @ 70 kVp
• Focal Spot 0.4 mm IEC 60336
• Duty Factor 1:15
• Ship Wt (Wall Mt) 100 lbs
• Ship Wt (Mobile) 170 lbs
• Options Remote Timer,Two Stud Plate

• Near zero leakage radiation
• 3 point control - kV, mA & ms
• 50-70 kV range in steps of 1kV
• 4-8 mA range in steps of 1mA
• Perfectly balanced zero-drift scissor arm

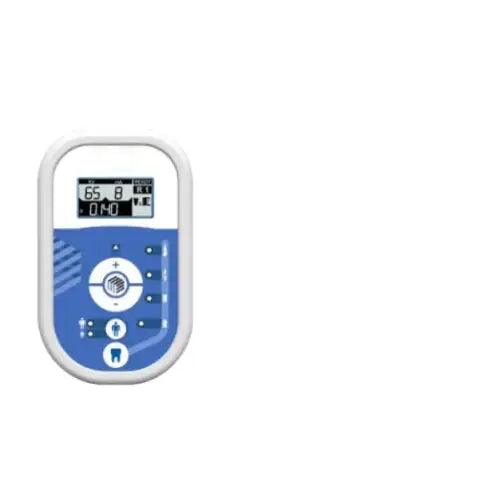

• Operator console with APR
• Available in wall mount or mobile

• X-Ray Generator Only (Mobile or Wall Mount)
• 1 Mounted Hand Switch
• 1 Power Cord
• 1 Instruction Manual

• 2-Year Warranty

Brochure:

brochure
