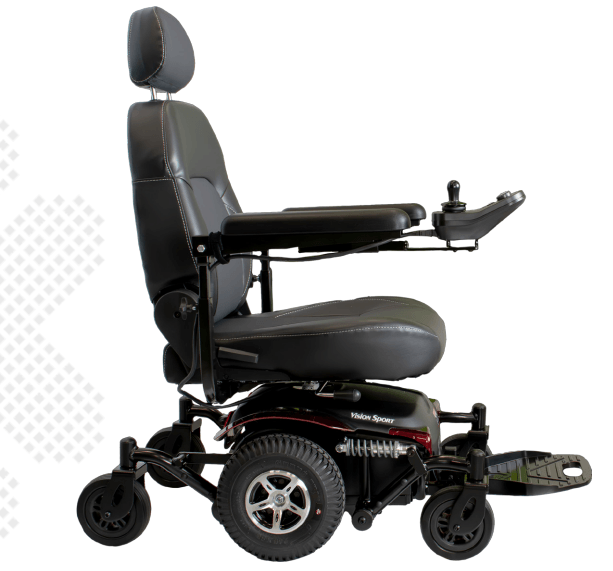

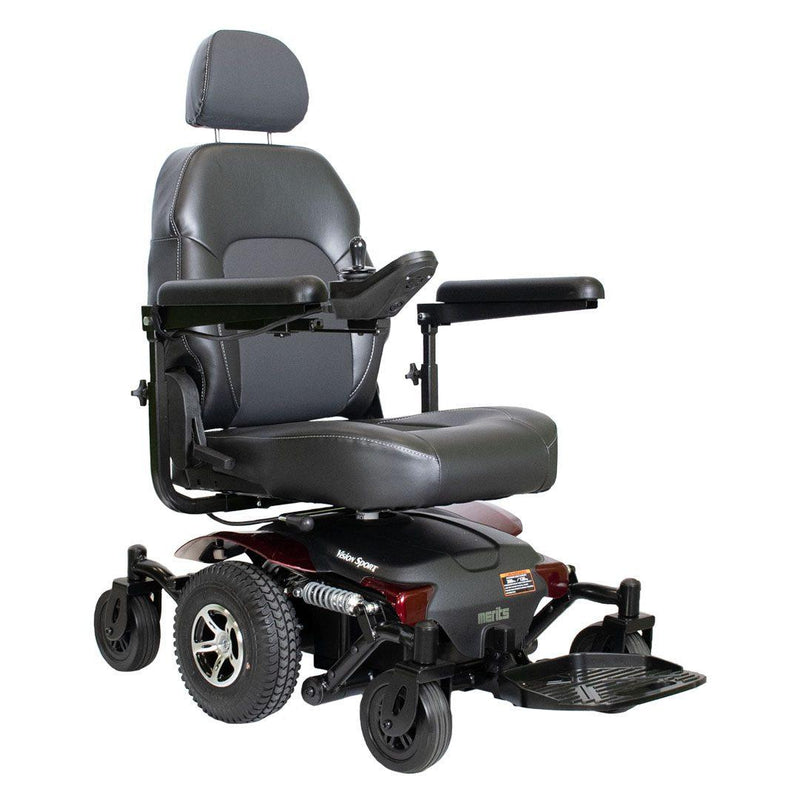

Merits Power Wheelchair Vision Sport P326E0M-ARMUB
Merits Power Wheelchair VISION SPORT P326E0M-ARMUB MWD Powerbase
K0822 / K0823
VISION SPORT P326E0M-ARMUB
MWD, 16",18",20", CAPTAIN or PAN SEAT, RED, 300 LBS CAP, 10"
FOAM-FILLED DRIVE TIRES, LiNX, INCLUDES U1 BATTS
VISION SPORT P326E0M-SBMUB
MWD, 16",18",20", CAPTAIN or PAN SEAT, BLUE, 300 LBS CAP, 10"
FOAM-FILLED DRIVE TIRES, LiNX, INCLUDES U1 BATTS
The Vision Sport electric wheelchair offers exceptional comfort for daily outings. This mid-wheel power wheelchair features full suspension for enhanced stability, durability, and reliability, ensuring a smoother ride. With a turning radius of 20", you can navigate turns effortlessly. It comes equipped with solid 6" tires in the front and rear and 10" tires in the middle, so you won't have to worry about flat tires while on the move.
Features
True mid-wheel: 20ā turning Radius
ā¢ Robust independent suspension can absorb up to 250 lbs. on
the footplate without tipping.
ā¢ Premium, semi-reclining ergonomic seat, up to 135Ā°
ā¢ 10ā Solid drive tires for superior traction
ā¢ Dynamic LiNX 40A controller for convenient Bluetooth
programming and diagnostics
ā¢ 16ā - 20ā customizeable seat depth
Specifications
Product# P326
Weight Capacity 300 lbs.
Drivetrain MWD
Seat Type Captain or Pan
Seat Width 18ā - 20ā
Seat Depth 16ā - 20ā
Backrest Height 18ā - 20ā
Seat-to-Floor Height 17ā - 21ā
Overall Length 34ā
Overall Width 24ā
Overall Height 48.5ā
Turning Radius 20.6ā
Ground Clearance 2ā
Total Weight 184 lbs.
Wt of Heaviest Pc. 90 lbs.
Max Speed 5 mph
Range Per Charge up to 18 mi.
Battery Size (2 required) 33Ah, U1 AGM
Motor DC24V / 160W
Controller Dynamic LiNX 40A
Charger 4A off-board
Gradient 6Ā°
Front Wheels 6ā - solid
Drive Wheels 10ā - solid
Rear Wheels 6ā - solid
HCPCSCode K0822 / K0823
Options
Unoccupied transit tie down kit
ā¢ Cup holder
ā¢ USB charger
ā¢ Oxygen tank holder
ā¢ Walker holder
16ā - 20ā seat width option
ā¢ Swing-away joystick
ā¢ Elevating leg rests (K0195)
ā¢ Foldable rear basket
ā¢ Cane & crutch holder
