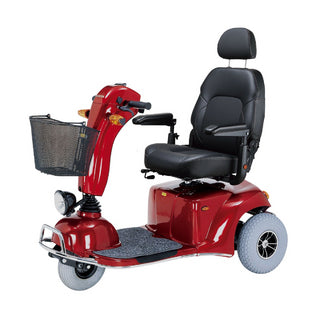

Merits Health S331 PIONEER 9

by Merits Health
$3,539.56 - $3,539.56
$3,539.56
$3,539.56 - $3,539.56
$3,539.56
Shipping estimate

Estimated shipping: $300.00

Estimated total before taxes: $3,839.56

48 contiguous U.S. states only. Estimate for this product and quantity, based on order value. Other cart items and discounts may change the shipping tier. Final shipping is shown at checkout.

Model: S331

Product Description

Product Description
  • One-piece frame for increased strength.
  • Suspension system offers smoother ride, more support.
  • Large wheels with knobby tread tackle rough terrain.
  • Weight capacity up to 227kg.
  • Chromed steel bumper protect shroud.
  • Safety sensor assures half-speed turns
  • Headlights and tail lights come standard
  • Includes turn signals and hazard lights
  • Chrome detailing.
  • Carpet floor mat.
  • Swivel and sliding captain seat.
  • Shopping basket included.
Product Highlights
Weight Capacity:227 kg / 500 lb
Product Weight:123 kg / 271 lb
Driving Range:50 km / 32 mi.
Max Climbing Angle:12°
Features & Benefits

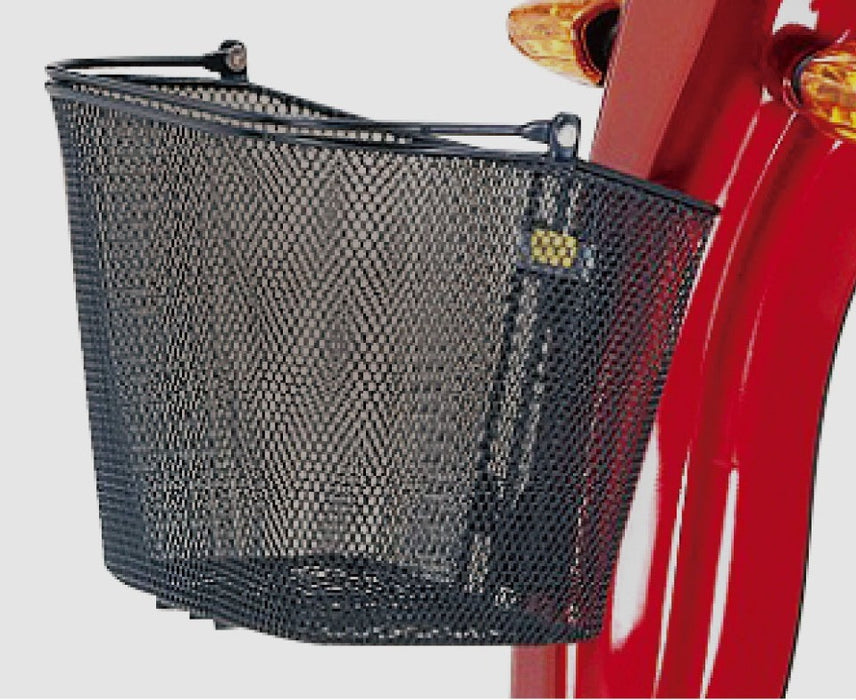

Large shopping basket
Head and tail light
Chromed steel bumperprotect shroud
Specifications
Dimensions
(cm/in)
Seat Width
Seat Depth
Seat Height from Ground
Seat Height from Deck
Backrest Height
Wheel Base
Overall Length
Overall Width
Overall Height
S331 56 cm / 22" 51 cm / 20" 56-64 cm / 22"-25" 41-48 cm / 16"-19" 56 cm / 22" 91cm / 36" Expanded Size: 124 cm / 49"Folded Size: --- 69 cm / 27" Expanded Size: 119 cm / 47"Folded Size: ---
Key Details:
Driving Range 50 km / 32 mi.
Max Speed 12 km/h , 7.5 mph
Battery Type 12V / 75AH x 2 pcs
Motor DC 24V,400W (gear ratio 1/19.5)
Max Climbing Angle 12°
Weight Capacity 227 kg / 500 lb
Total Weight 123 kg / 271 lb
Turning Radius 127 cm / 50"
Ground Clearance 10 cm / 4"
Controller Dynamic Rhino 2 160A
Charger 6A off-board
Front wheel 10" (3.00-4) pneumatic tire
Rear wheel 12" (4.00-5) pneumatic tire
Base 46 kg / 101 lb
Battery 25 kg / 55 lb
Seat 27 kg / 60 lb
Brake Intelligent, regenerative, electromagnetic brakes
Color ---
