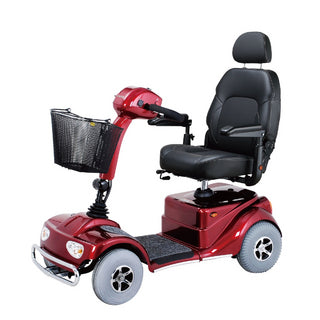

Merits Health S141 PIONEER 4 — manufacturer product photo

Merits Health S141 PIONEER 4

by Merits Health
$2,481.00 - $2,876.00
$2,481.00
$2,481.00 - $2,876.00
$2,481.00
Shipping estimate

Estimated shipping: $200.00

Estimated total before taxes: $2,681.00

48 contiguous U.S. states only. Estimate for this product and quantity, based on order value. Other cart items and discounts may change the shipping tier. Final shipping is shown at checkout.

Color: Red
Seat Lift: Standard Seat

Product Description

Product Description
  • One-piece frame holds up to 181kg.
  • Steel bumper comes standard.
  • Adjustable captain seat.
  • Padded foam armrests are height, weight, and angel djustable.
  • Hazard lights.
  • Turn signals.
  • Headlight and tail lights.
  • Anti-tippers.
  • Optional Oxygen tank holder.
  • Optional Cane & crutch holder.
  • Optional Walker holder.
  • Optional Foldable rear basket.
Product Highlights
Weight Capacity:182 kg / 400 lb
Product Weight:86 kg / 189 lb
Driving Range:28 km / 18 mi.
Max Climbing Angle:10-12°
Features & Benefits
Looped Tiller

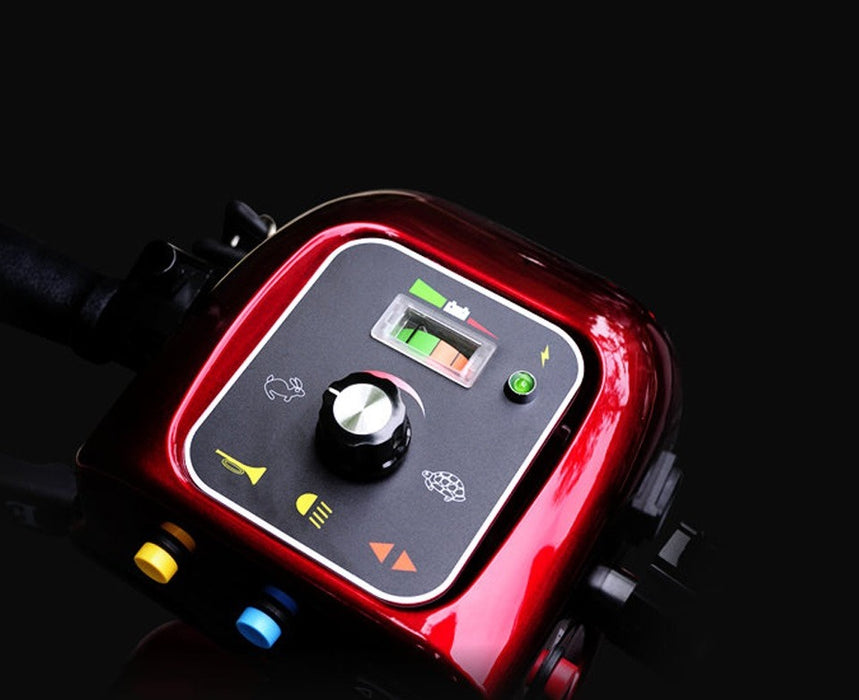

Easy-to-read dashboard panel
Specifications
Dimensions
(cm/in)
Seat Width
Seat Depth
Seat Height from Ground
Seat Height from Deck
Backrest Height
Wheel Base
Overall Length
Overall Width
Overall Height
S141(300 lb) 51 cm / 20" 46 cm / 18" 56-64 cm / 22"-25" 41-48 cm / 16"-19" 51 cm / 20" 84 cm / 33" Expanded Size: 120 cm / 47"Folded Size: --- 58 cm / 23" Expanded Size: 115 cm / 45"Folded Size: ---

S141(400 lb)		 51 cm / 20" 46 cm / 18" 56-64 cm / 22"-25" 41-48 cm / 16"-19" 51 cm / 20" 84 cm / 33" Expanded Size: 120 cm / 47"Folded Size: --- 58 cm / 23" Expanded Size: 115 cm / 45"Folded Size: ---
Key Details:
S141(300 lb)
Driving Range 28 km / 18 mi.
Max Speed 8 km/h , 5 mph
Battery Type 12V / U1 x 2 pcs
Motor DC 24V, 250W (Rating) / 915W (Max)
Max Climbing Angle 12°
Weight Capacity 182 kg / 400 lb
Total Weight 86 kg / 189 lb
Turning Radius 132 cm / 52"
Ground Clearance 10 cm / 4"
Controller Dynamic Rhino 2 120A
Charger 4A off-board
Front wheel 10" (260 x 85) Foam filled tire
Rear wheel 10" (260 x 85) Foam filled tire
Base 44 kg / 97 lb
Battery 12 kg / 26 lb
Seat 18 kg / 40 lb
Brake Intelligent regenerative, electromagnetic brakes
Color ---

S141(400 lb)
Driving Range 28 km / 18 mi.
Max Speed 8 km/h , 5 mph
Battery Type 12V / U1 x 2 pcs
Motor DC 24V, 250W (Rating) / 915W (Max)
Max Climbing Angle 10°
Weight Capacity 182 kg / 400 lb
Total Weight 86 kg / 189 lb
Turning Radius 132 cm / 52"
Ground Clearance 10 cm / 4"
Controller Dynamic Rhino 2 120A
Charger Dynamic Rhino 2 120A
Front wheel 10" (260 x 85) Foam filled tire
Rear wheel 10" (260 x 85) Foam filled tire
Base 44 kg / 97 lb
Battery 12 kg / 26 lb
Seat 18 kg / 40 lb
Brake Intelligent, regenerative, electromagnetic brakes
Color ---
Models & Options

Colors: Red or Blue. Seat options: Standard Seat or optional Elevating Seat.

Colors

Color swatches for the Merits Health Pioneer 4.

Accessories

See the manufacturer’s specifications for compatible accessories and optional equipment.
