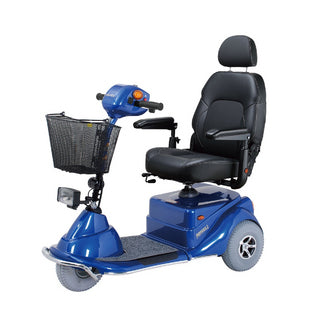

Merits Health S131 PIONEER 3 — manufacturer product photo

Merits Health S131 PIONEER 3

by Merits Health
$2,267.00 - $2,662.00
$2,267.00
$2,267.00 - $2,662.00
$2,267.00
Shipping estimate

Estimated shipping: $200.00

Estimated total before taxes: $2,467.00

48 contiguous U.S. states only. Estimate for this product and quantity, based on order value. Other cart items and discounts may change the shipping tier. Final shipping is shown at checkout.

Color: Red
Seat Lift: Standard Seat

Product Description

Product Description
  • High-torque drivetrain provides increased power.
  • One-piece frame supports up to 181 kg.
  • Steel bumper protects shroud and serves as lift handle.
  • Captain seat offers additional support.
  • Tiller angle adjustable.
  • Swivel and sliding captain seat.
  • Flip-up armrests are height, angle & seat width adjustable.
  • Available in red or blue.
  • Reflectors and non-slip mat included.
  • Tight turning radius 99cm for indoors and outdoors use.
  • Big shopping basket comes standard.
  • Ground clearance 10cm.
Product Highlights
Weight Capacity:181 kg / 400 lb
Product Weight:81 kg / 178 lb
Driving Range:28 km / 18 mi.
Max Climbing Angle:10°
Features & Benefits

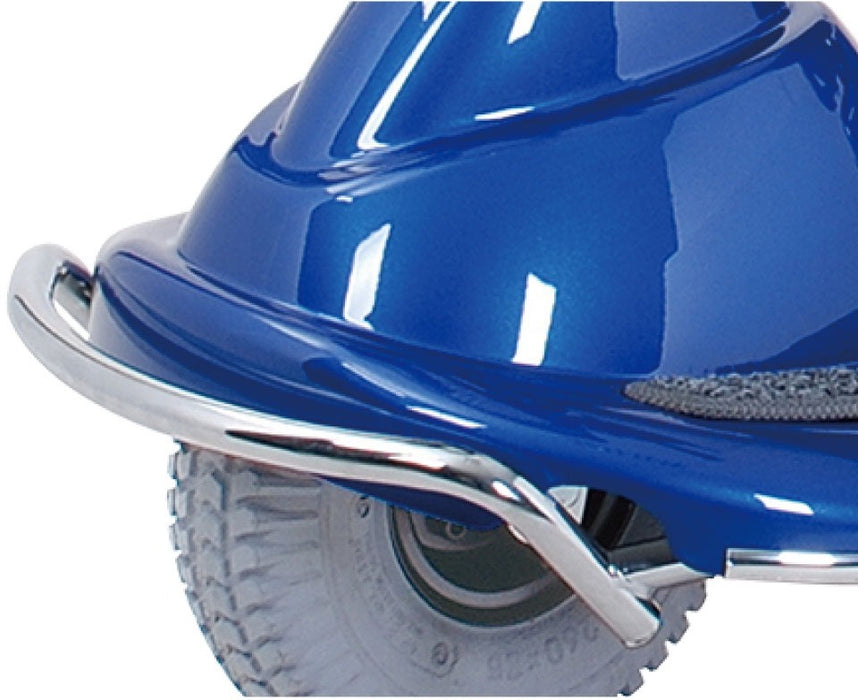

Steel bumper protects shroud
Tiller angle adjustable
Specifications
Key Details:

S131 (400 lbs)
Driving Range 28 km / 18 mi.
Max Speed 8 km/h , 5 mph
Battery Type 12V / U1 x 2 pcs
Motor DC 24V, 250W (Rating) / 915W (Max)
Max Climbing Angle 10°
Weight Capacity 181 kg / 400 lb
Total Weight 81 kg / 178 lb
Turning Radius 99 cm / 39"
Ground Clearance 10 cm / 4"
Controller Dynamic Rhino 2 120A
Charger 4A off-board
Front wheel 10"(260 x 85) Foam filled tire
Rear wheel 10" (260 x 85) Foam filled tire
Base 39 kg / 86 lb
Battery 12 kg / 26 lb
Seat 18 kg / 40 lb
Brake Intelligent, regenerative, electromagnetic brakes
Color ---
Models & Options

S131, 400 lb capacity. Colors: Red or Blue. Seat options: Standard Seat or optional Elevating Seat.

Accessories

See the manufacturer’s specifications for compatible accessories and optional equipment.
