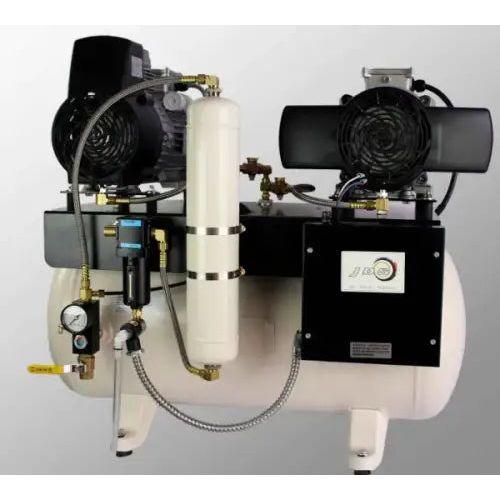

JDS Oil-less Compressor JM Series JM224

JDS Oil-less Compressor JM Series JM224 delivers clean, reliable air for busy workshops without the mess and maintenance of oil-lue systems. This 4 HP, 230V unit powers 4–5 users with a robust 30-gallon tank and a two-head pump, making it ideal for multiple tools and continuous air demand.

Key advantages and what makes JM224 different

• New motor design reduces operating noise while boosting reliability, so you can work comfortably in shared spaces.
• Intake filtration redesigned for greater convenience: filters are mounted directly on the motors, eliminating the need for a wall-mount intake filter.
• Coalescing filter traps contaminants from the air supply, helping keep downstream tools cleaner and extending their life.
• Desiccant air dryer removes moisture to deliver drier compressed air—crucial for paint apps, fasteners, and precision tools.
• Purge tank clears residual humidity after each cycle, reducing moisture-related issues over time.
• Oil-free operation provides cleaner air and minimizes maintenance, keeping downtime to a minimum.
• Two-head pump design with a 30-gallon tank supports 4–5 users and multiple tools simultaneously.
• Generous warranty coverage: 5 years on the motors and 3 years on the rest of the compressor.

Specifications

• Total HP: 4
• User capacity: 4–5
• Voltage: 230V
• Frequency: 60 Hz
• Total Amps: 30
• Circuit Breaker: 40 A
• CFM @ 80 PSI: 19.6
• Head: 2
• Estimated noise level: 73 dBA
• Tank capacity: 30 gallons
• Dimensions (H × W × D): 33" × 39" × 26"
• Temperature range: 40°F–104°F
• Shipping weight: 330 lbs

What to expect in daily use

With its oil-less design, JM224 delivers clean air straight from start-up, reducing maintenance and eliminating oil carryover to tools. The integrated filtration and drying system help maintain performance across a range of shop environments, from woodworking to automotive bays. The compact footprint for a 30-gallon unit pairs with a two-head pump to sustain steady air supply for multiple tools, keeping your workflow smooth and downtime minimal.
