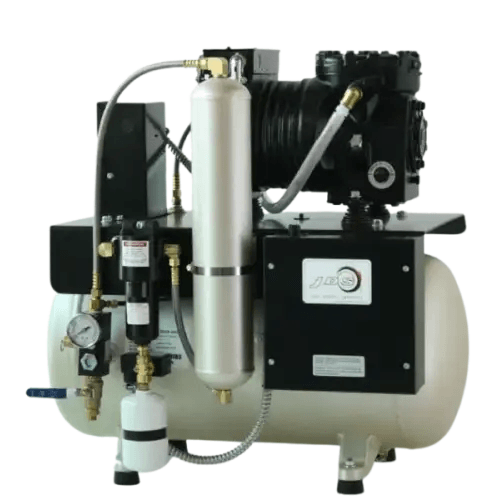

JDS Lubricated Dental Air Compressor JLC11/JLC12

Meet the JDS JLC11/JLC12 Lubricated Dental Air Compressor—the dependable, clean-air solution your dental practice can count on all day. Built around a 1.0 HP motor, these lubricated compressors pair compact 12-gallon tanks with Copeland-powered heads for exceptionally quiet, reliable performance. A 0.01 micron filter traps the smallest contaminants, ensuring only the purest air reaches your equipment and patients. The integrated purge tank and desiccant dryer system work together to deliver the driest air possible, helping prevent moisture-related issues and keeping your mechanical room cleaner.

Variants

• JLC11 — 1.0 HP motor, 110V, 12 gallons, dimensions 32 x 26 x 35 H
• JLC12 — 1.0 HP motor, 230V, 12 gallons, dimensions 32 x 26 x 35 H

Key features

• Copeland-powered heads for quiet, reliable service
• 0.01 micron filter captures dust, oil, smoke, and even bacteria to keep the air clean
• Exhaust silencer minimizes noise while purge air is filtered to protect your mechanical room
• Purge tank and desiccant dryer system deliver the cleanest, driest air possible
• Lubricated design engineered for consistent performance in busy dental environments

Specifications (JLC12)

• Model Number: JLC12
• Total HP: 1.0
• User Capacity: 1-3
• Voltage: 208-230/110
• Line Frequency: 60 Hz
• Total Amps: 6
• Circuit Breaker: 20 Amp
• CFM @ 80 PSI: 5.3
• DBA: 68
• Tank Capacity: 12 Gallons
• Dimension (H x W x D): 32 x 26 x 35 in
• Temperature Range: 40°F - 104°F
• Shipping Weight: 220 lbs
