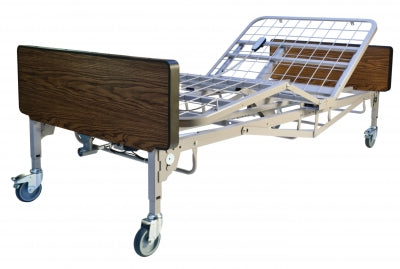

Graham-Field Bariatric Bed

Full-electric, three-function operation
New DC Electronics that are quieter and offer a faster Hi-Lo function than traditional AC
DC Electronics are splashproof and offer a lower voltage making them more reliable and less prone to electronic failures
Designed to meet the requirements of applicable HCPCS codes
Split-frame with removable ends for easy transport
Heavy-duty grid sleep deck

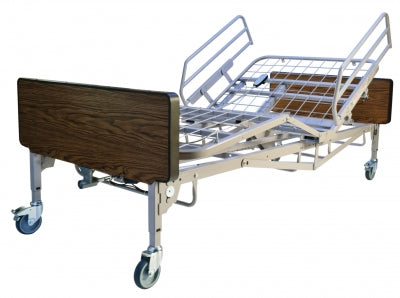

Optional Swing-down style trigger release rail requires no tool assembly and designed with quick release for easy removal
High-strength, steel-reinforced, truss frame
Durable powder-coated finish
Simple assembly: no special tools required
Self-wrenching nut: assembled for easy part replacement
Ball-screw bed ends
Bed height: low 17"; to high 27";
Maximum patient weight is 600 lbs
Maximum Patient Weight Capacity 600 lb – EVENLY DISTRIBUTED
700 lb evenly distributed total weight capacity including the patient, mattress, rails and accessories
Overall bed dimensions: 46.5"; width (with rails) and 87"; length
Sleeping surface dimensions: 42"; width and 80"; length
Total Bed Weight: 295 lbs

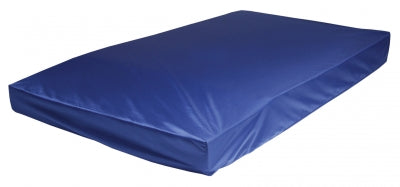

Also available as a package with 650-1501-1633N bariatric mattress and A8340 head half rails
Warranty:
Two year warranty for defects in workmanship and materials of mechanical components, frame, and electronics
During the warranty period, defective items will be repaired or replaced at manufacturer's option at no charge
