Flight Dental G.Comm Iris View (With Camera) LL-307GIV
Flight Dental G.Comm Iris View (With Camera) LL-307GIV
LL-307GIV, CL-307GIV, TL-1005IV, TL1006IV

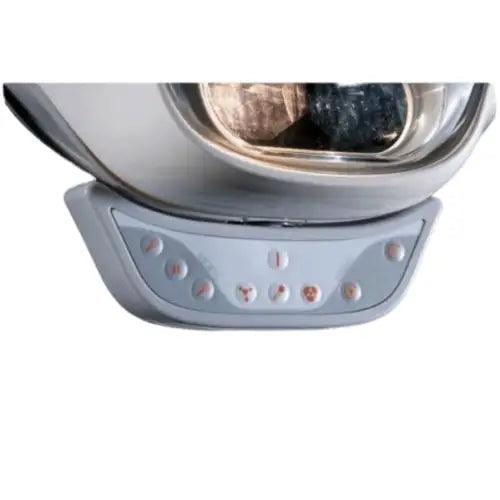

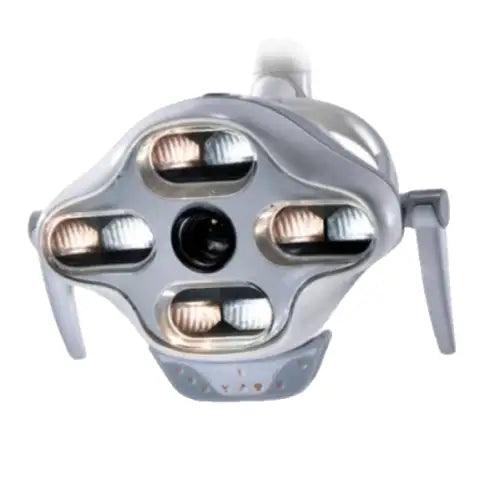

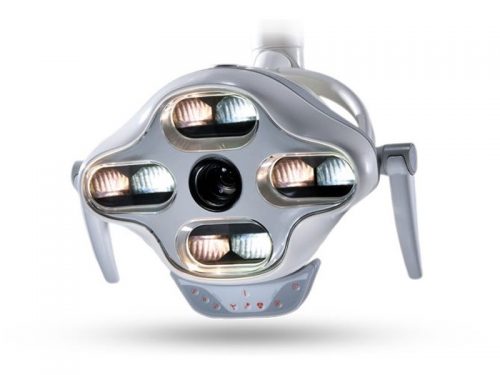

Flight Dental G.Comm IRIS View LED Light (With Camera)
LL-307GIV - G.Comm IRIS View (With Camera) – Chair Mounted
Includes: Gcomm IRIS View with Light Arm, Converter from Component to HDMI
CL-307GIV - G.Comm IRIS View (With Camera) – Ceiling Mounted
Includes: Gcomm IRIS View with Light Arm and Ceiling Mounted Set (65inch/165cm), Converter from Component to HDMI
TL-1005IV - G.Comm IRIS View (With Camera) – Single Track Mounted
Includes: Gcomm IRIS View with Light Arm, Converter from Component to HDMI, Post
TL-1006IV - G.Comm IRIS View (With Camera) – Dual Track Mounted -(Light/Camera with Monitor Bracket) Monitor Sold Separately
Includes: GComm IRIS View with Light Arm, Converter from Component to HDMI, Posts, Monitor Bracket
Sensor: 1/2.8” CMOS
Resolution: 1920 x 1080px (Full HD)
Zoom: 30x Optical
Working distance: From 35cm to 80cm
Zoom Speed: From Wide to Full Zoom (With Autofocus) in 4.6s
Video Output: Y/Pb/Pr Signal, progressive or interfaced. Scan up to 1/60s. Frame out up to 30fps
White Balance: Automatic from 3000k to 7500k
Brightness Balance: Automatic with Wide Dynamic Range Mode
Image Stabilizer: 90% Vibration Correction up to 10Hz
Maximum Power Absorbed: 50VA
Max Absorbed current: 3A
Illuminated Spot Dimension: Approx. 70 x 140mm
Brightness Intensity (5 Adjustable Steps): From 8000 lux to 35000 lux
Colour Temperature (5 Adjustable Steps): From 4200K to 6000
Focal Length: 70cm
CRI (Colour Rendering Index): >90%
Light Source: 8 LEDs
Emission Spectrum: 380 – 780 nm
Autofocus with 30X Optical Zoom
Built in WiFi control for light control and camera control through an iPad App – MyLight
Freeze Frame and Recording capability
Automatic White Balance Adjustment from 3000-7500K
90% Vibration Correction up to 10Hz
Provides a detailed image of the operating area
Highlights the details that are difficult to see with the Naked eye
Relieves eye strain by allowing the camera to focusing in on a specific area
Allows the multimedia documentation of procedures in high definition
Live Streaming capabilities for recording and viewing operations for conferences, teaching schools, hospitals and university lectures
Improves and facilitates better communication with the patient
Allows better communication during diagnosis phase and education for the patient by providing real-time video streaming.
- Returning / Warranty
No goods shall be returned without prior permission by Flight Dental
Systems. If permission is granted for the return of the goods, the
amount of credit issued, if any, will be at the sole discretion of the
Flight Dental Systems home office in accordance with established
policies. If a return for non-warranted credit is authorized, a 20%
restocking fee will be charged on all catalogued items.
No returns on replacement parts after 180 days from date of purchase
from Flight Dental Systems. The customer is responsible for any
freight costs. Call Customer Service to obtain a Return Authorization
Number (RMA) before returning any item for credit consideration.
Product information and photography included in this catalog were as
accurate as possible at the time of publication.
Subsequent refinements may be evident in the actual product. Prices
and specifications are subject to change without notice.
If within the warranty time limits described below a product or
any of its components fail, the original user-owner must contact
an authorized Flight Dental Systems dealer with the product sale
and service records. Should the dealer be unable to complete the
repair, the dealer may contact Flight Dental Systems for
disposition. The product’s model, serial number and original
Flight Dental Systems invoice number must be furnished.
Transportation charges to and from Flight Dental Systems, if
necessary, must be paid by the dealer. If upon receipt at the
factory, an examination reveals faulty or defective original parts,
materials, or workmanship, Flight Dental Systems will, at its sole
discretion issue a credit.
This warranty does not cover damages caused by misuse,
accident, neglect or damage caused by the use of replacement parts
which were not manufactured or distributed by Flight Dental
Systems. Service performed by unauthorized dealers or service
technician or the usage of replacement parts not manufactured or
distributed by Flight Dental Systems may nullify this warranty.
All chairs sold and installed by authorized Flight Dental Systems
dealers are warranted to be free from defects in parts,
workmanship and materials for five (5) years, unless otherwise
stated, from date of purchase. Plastic Chair base cover and unit
covers, foot control and circuit boards are warranted for one (1)
All delivery systems sold and installed by authorized Flight
Dental Systems dealers are warranted for five (5) years from
defects in parts, workmanship and materials, unless otherwise
stated, from date of purchase. Damage resulting from the use of
improper chemicals and process for cleaning, disinfecting or
sterilization are excluded from this warranty. Wear and tear
items are excluded from this warranty such as gaskets, tubing and
All lights (Track Mounted Lights, Unit/Post Mounted Light and
Ceiling Mounted Lights) sold by Flight Dental Systems are
warranted for (2) two years to be free from defects in parts,
workmanship and materials, unless otherwise stated, from date of
purchase. Light Bulbs are excluded from this warranty.
All stools sold by Flight are warranted for five (5) years from
manufacture defect and workmanship.
Chair and stool upholstery, or surface discoloration or abrasion
from improper use of cleaners and disinfectants are not considered
a manufacturer’s defect and will not be covered by this warranty.
The warranty excludes all normal expected service items such as but
not limited to: light bulbs, filters, o-rings, hoses, HVE valves, SE
valves and 3-way syringes.
The warranty excludes add-on components such as scalers intraoral
handpiece illumination systems and custom upholstery materials,
unless noted elsewhere in this document. Warranty is limited to
repair or replacement as determined by Flight Dental Systems and
does not include any shipping or dealer labor charges. Products
returned to the factory and determined to be defective will be repaired
or replaced free of charge. If a product is installed by anyone other
than an authorized Flight Dental Systems dealer, or their
representative, all warranties will be void. No claim for labor or
consequential damages will be allowed.
All intraoral handpiece illumination systems and accessories are
warranted to be free from defects in parts, workmanship and materials
for one (1) year from date of purchase unless otherwise noted. Light
Bulbs are warranted to be free from manufacturing defects in material
and workmanship at the time of installation in an electrical circuit
having the correct characteristics. The useful life of light bulbs is not
covered under warranty. Scalers and accessories featured in this
catalog carry a manufacturer’s warranty and are not covered by the
Flight Dental Systems warranty. Please contact the manufacturer
directly for all warranty and/or service issues or questions.
Replacement parts and accessories are warranted for a period of one
(1) year from date of purchase from Flight Dental Systems.
Replacement parts, either purchased or replaced through a warranty
claim shall not interrupt or prolong the term of the original warranty.
