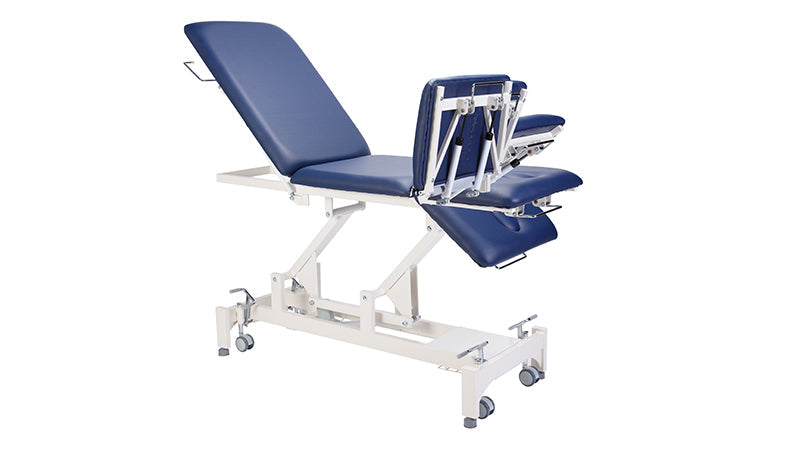

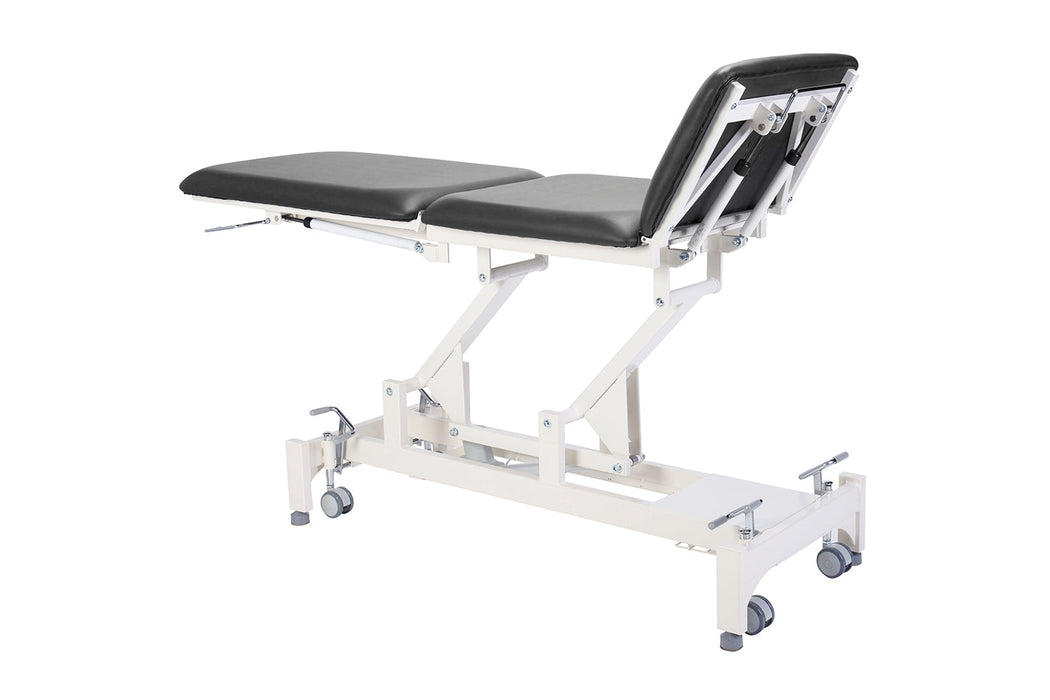

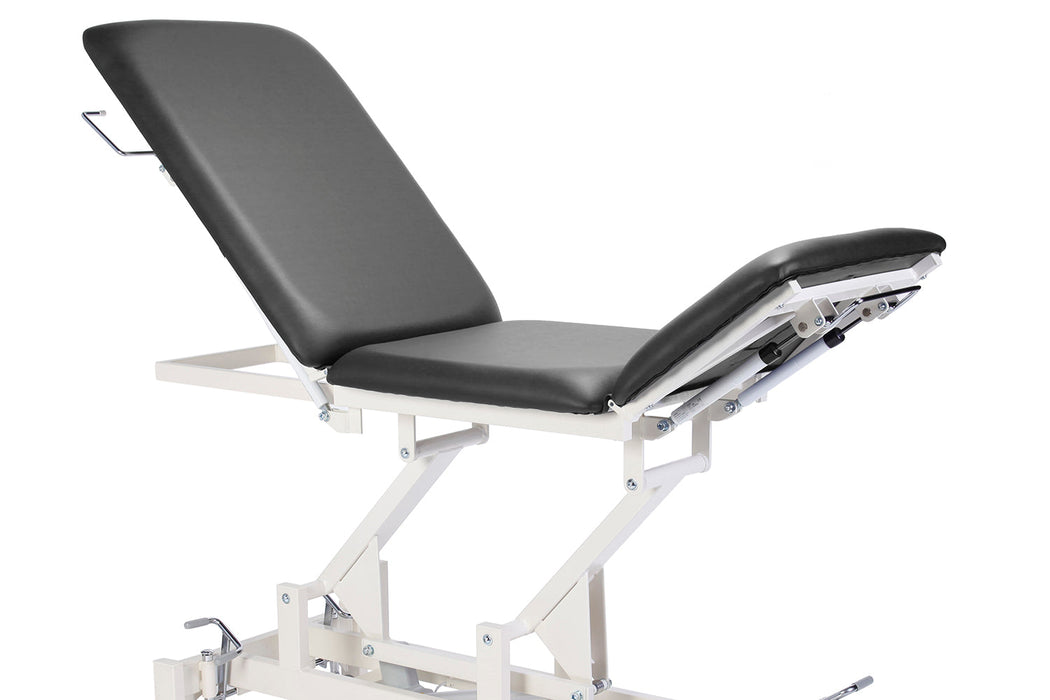

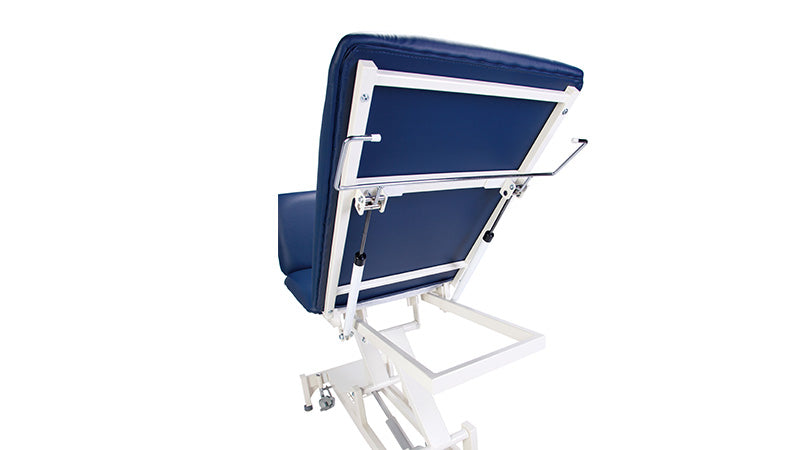

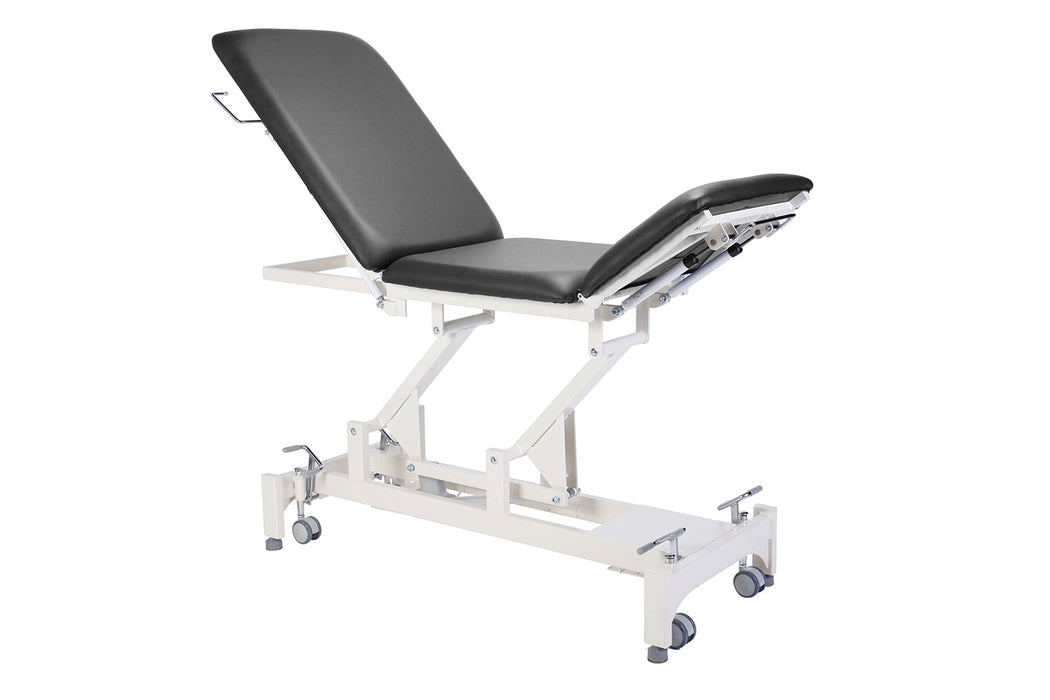

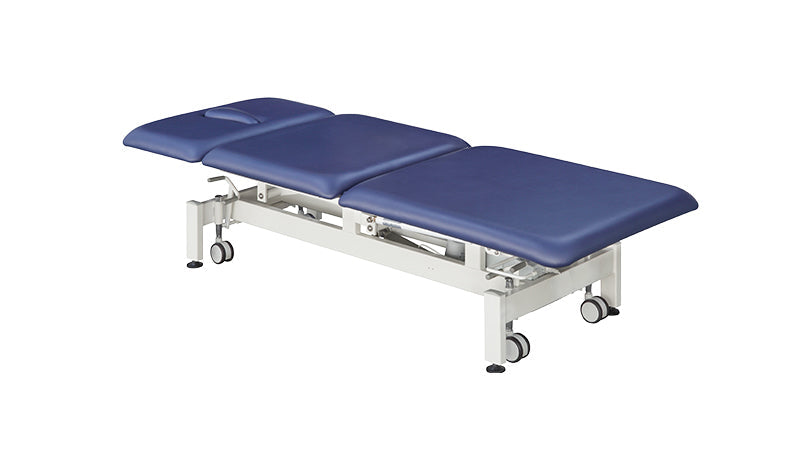

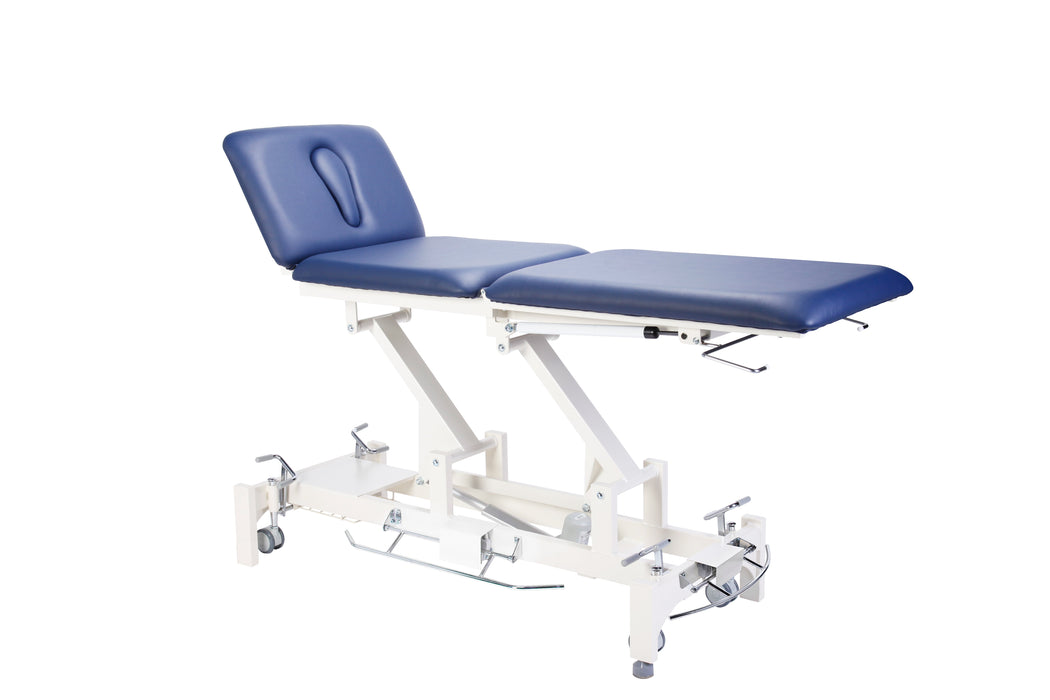

Everyway4all EU25 "TRISTAR" 3 Section Therapeutic Table (No Drop Foot / 1 Motor) with 4-side Elevating Bars

Hydraulic version (EU25H) is also available (pre-order only)

• Short Head Section (Length: 41cm / 16.1” inch)
• Long Leg Section (Length: 85cm / 33.5” inch)
• Equipped with 1 Motorized Actuator for Hi/Lo Adj.
• Twin “Oversized” Pillars for Added Stability
• Retractable Castors at Both Ends

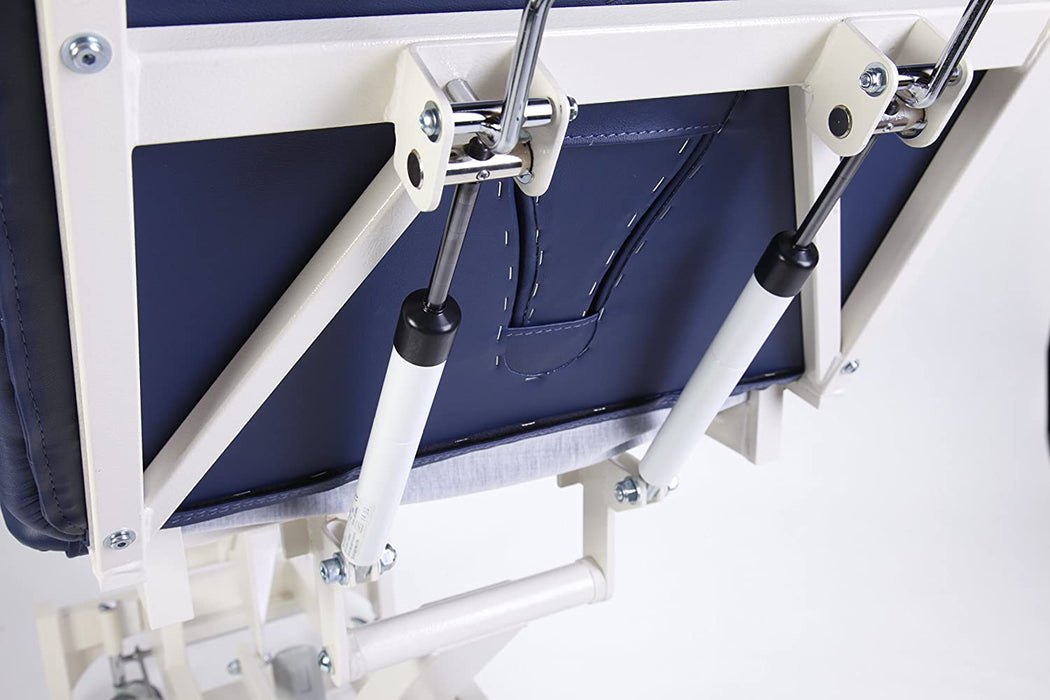

• Twin Gas Struts for Solid Head and Leg Sections Support
• Bracket Frame with 2 Welding Points for Solid Support
• Maximum User Weight :225 kgs / 496 lbs
• 4-side elevating foot bars

The EU25 TRISTAR 3 Section Therapeutic Adjustment Table with an electric motor has no drop foot, which is altogether a different type of 3 section table, as opposed to the CA65.

The leg section is further supported by a bracket frame underneath. Due to this added support at the leg section, the EU25 cannot be dropped down like its sister, the CA65, which is why it's called the “No Drop Foot 3 Section Table".  The advantage of "No Drop Foot (End)" is that the foot section is further supported a bracket frame for the added strength and reliability.

The EU25 TRISTAR 3 section electric adjustable table has the following features:

• Short Head Section (Length: 41cm / 16.1”inch)
• Long Leg Section (Length: 85cm / 33.5”inch)
• 1 * Motor for Height Adjustment

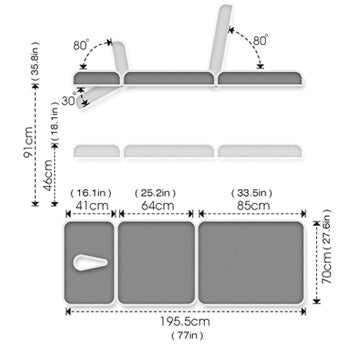

Technical Specifications:

• Minimum Height: 460mm / 18.11” inch
• Maximum Height: 910mm / 35.83” inch
• Table Top Width: 700mm / 27.56” inch

• Head Section Length: 410mm / 16.14” inch
• Mid Section Length: 640mm / 25.19” inch
• Leg Section Length: 850mm / 33.46” inch
• Total Length: 1955mm / 76.97” inch

• Head Tilt Angles: -30º to +80º
• Leg Tilt Angles: 0º to +80º
• Lift Mechanism: Electric
• Breathing Hole/Plug: 1

• Retractable Castors: 4
• Weight Rating (Max. Load): 225kgs / 496lbs
• Weight: 221 lbs.
• Package Dimension: 88X32X22”H

• Control Box Input Voltage & Rating: 100~240VAC, 50/60Hz, 2A
• Control Box Output Voltage: DC 32V, 80VA

• Actuator Input Voltage: DC 24V
• Duty cycle: Max. 10% 2min. ON / 18min. OFF
• Max. Load: Push 8000N
• Max. Current: Max. 6A

CERTIFIED TO AAMI / CSA / IEC / EN STD

AAMI ES 60601-1, CSA-C22.2 NO. 60601-1

IEC 60601-1, EN 60601-1

The electrical components of this adjustable table used are approved by IEC 60601-1

Warranty policy:

1. 12-month on upholstery, head/foot/switch controls, castors leveling foot, and gas struts
2. 24-month on motorized actuator, control box, and metal side bars
3. 36-month on table frame and table pillars
