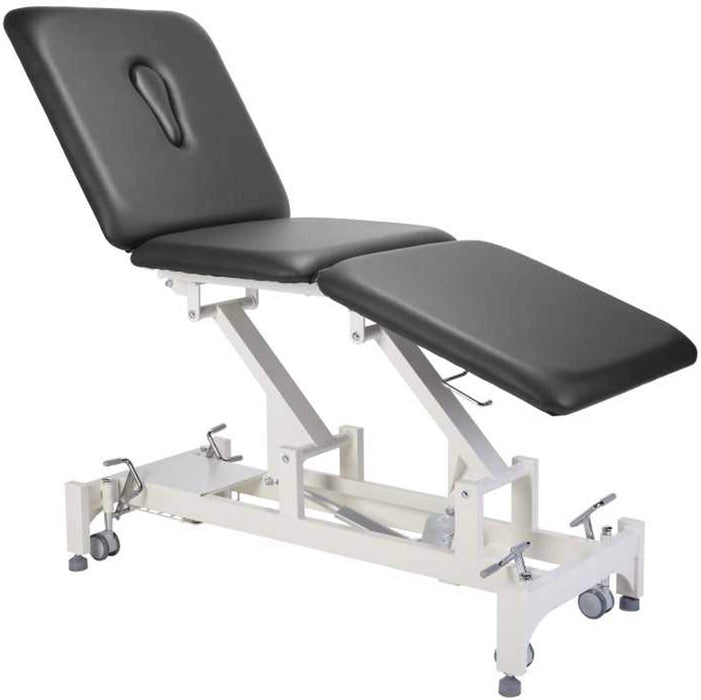

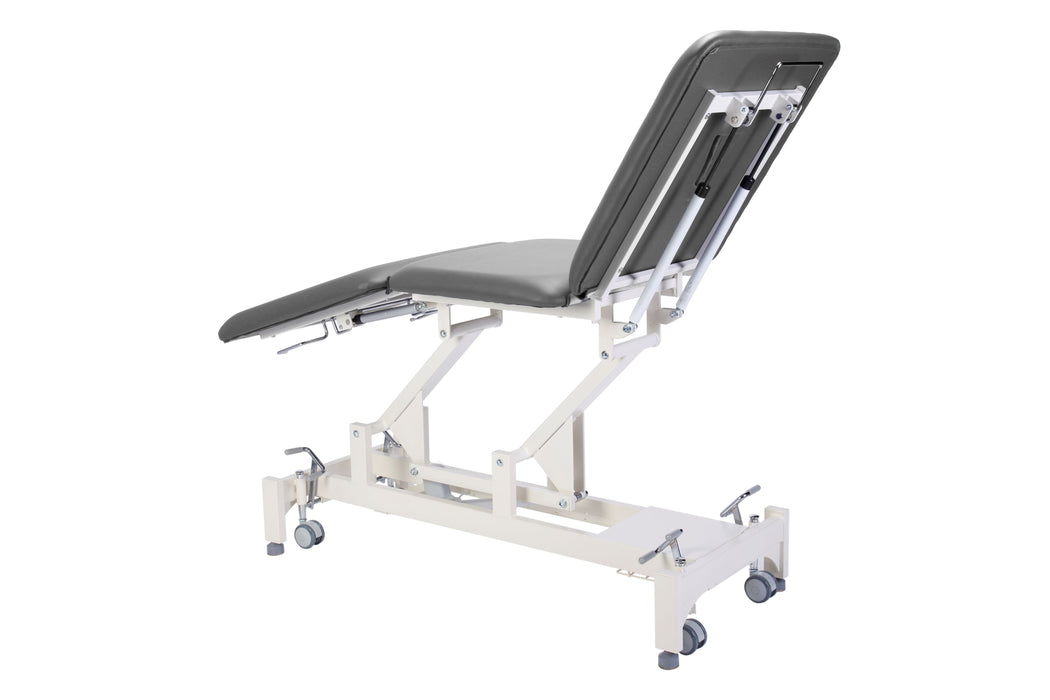

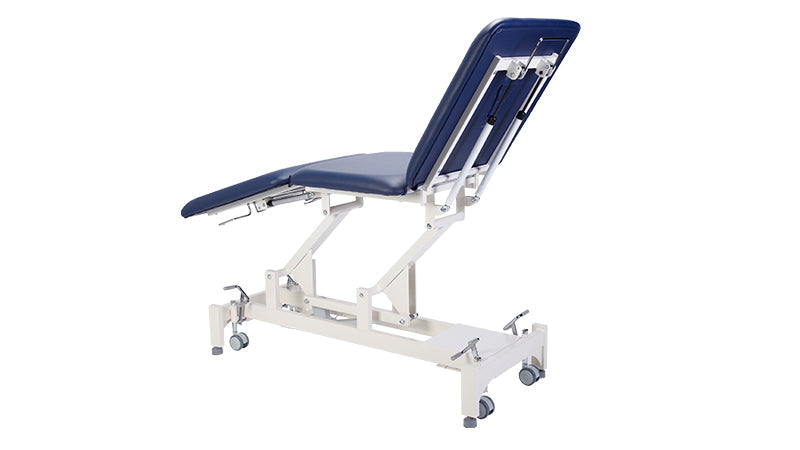

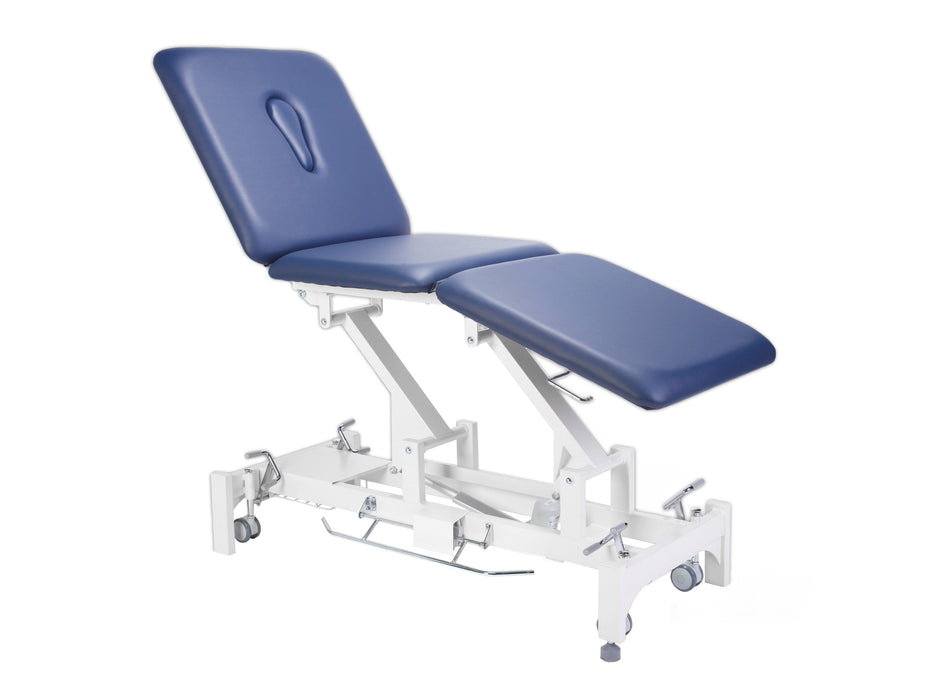

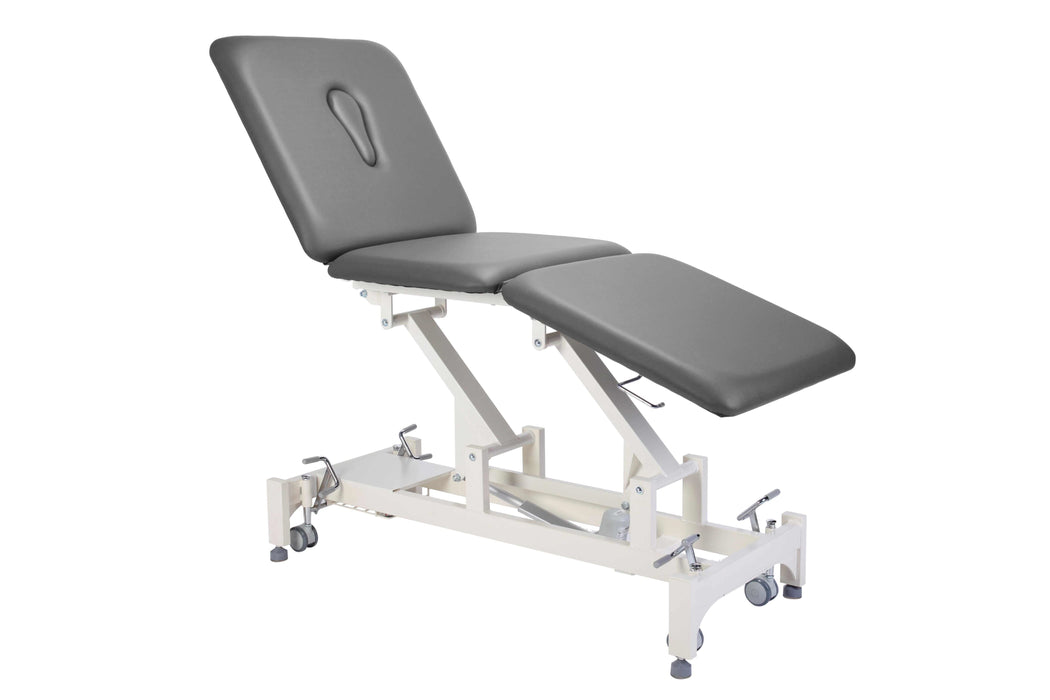

Everyway4all CA65 "TRIO" 3 Section Therapeutic Table / Couch (1 Motor) with 4-side Elevating Bars
The CA65 Trio Power Hi-Lo Treatment Table for physical therapy is one of the most popular 3-section therapeutic tables in our existing product range. This electric hi-lo treatment table is sought-after for physical therapy purposes due to its versatility in terms of adjustable head and foot drop sections.
Hydraulic version (CA65H) is also available.
Equipped with 1 Electric Motorized Actuator for Hi-Lo Treatment Table Adjustment
Twin “Oversized” Pillars for Added Stability
Retractable Castors at Both Ends
Twin Gas Struts for Solid Head and Leg Sections Support
Maximum User Weight :225 kgs / 496 lbs
100~240VAC (Universal Voltage)
Plug Type: US Plug

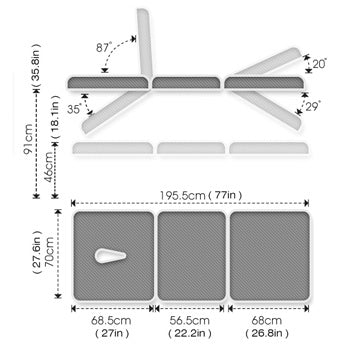

Technical Specifications:
- Minimum Height: 460mm / 18.11” inch
- Maximum Height: 910mm / 35.83” inch
- Table Top Width: 700mm / 27.56” inch
- Head Section Length: 685mm / 26.97” inch
- Mid Section Length: 565mm / 22.24” inch
- Leg Section Length: 680mm / 26.77” inch
- Total Length: 1955mm / 76.97” inch

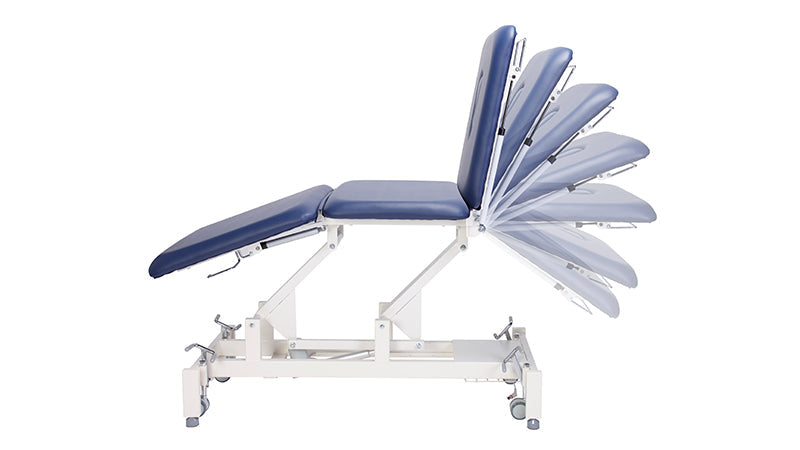

- Head Tilt Angles: -35º to +87º

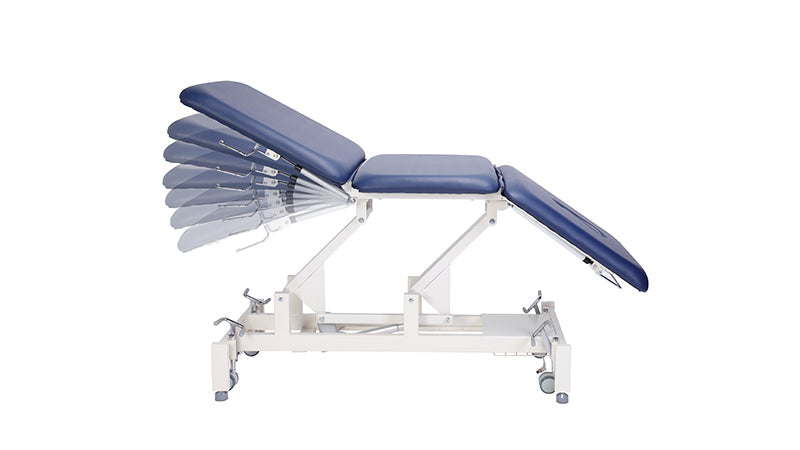

- Leg Tilt Angles: -29º to +20º
- Lift Mechanism: Electric
- Breathing Hole/Plug: 1
- Retractable Castors: 4
- Weight Rating (Max. Load): 225kgs / 496lbs
- Weight: 190 lbs.
- Package Dimension: 88X30X22”H
Electrical Data:
- Control Box Input Voltage & Rating: 100~240VAC, 50/60Hz, 2A
- Control Box Output Voltage: DC 32V, 80VA
- Actuator Input Voltage: DC 24V
- Duty cycle: Max. 10% 2min. ON / 18min. OFF
- Max. Load: Push 8000N
- Max. Current: Max. 6A
CERTIFIED TO AAMI / CSA / IEC / EN STD
AAMI ES 60601-1, CSA-C22.2 NO. 60601-1
IEC 60601-1, EN 60601-1
The electrical components used are approved by IEC 60601-1
Warranty policy:
- 12-month on upholstery, head/foot/switch controls, castors leveling foot, and gas struts
- 24-month on motorized actuator, control box, and metal side bars
- 36-month on table frame and table pillars
