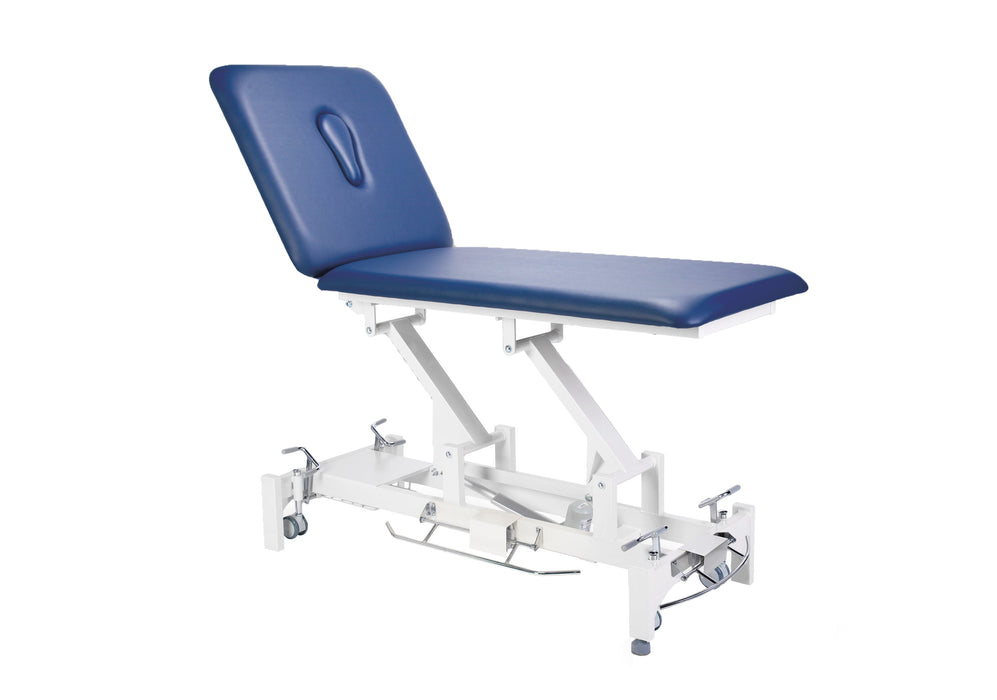

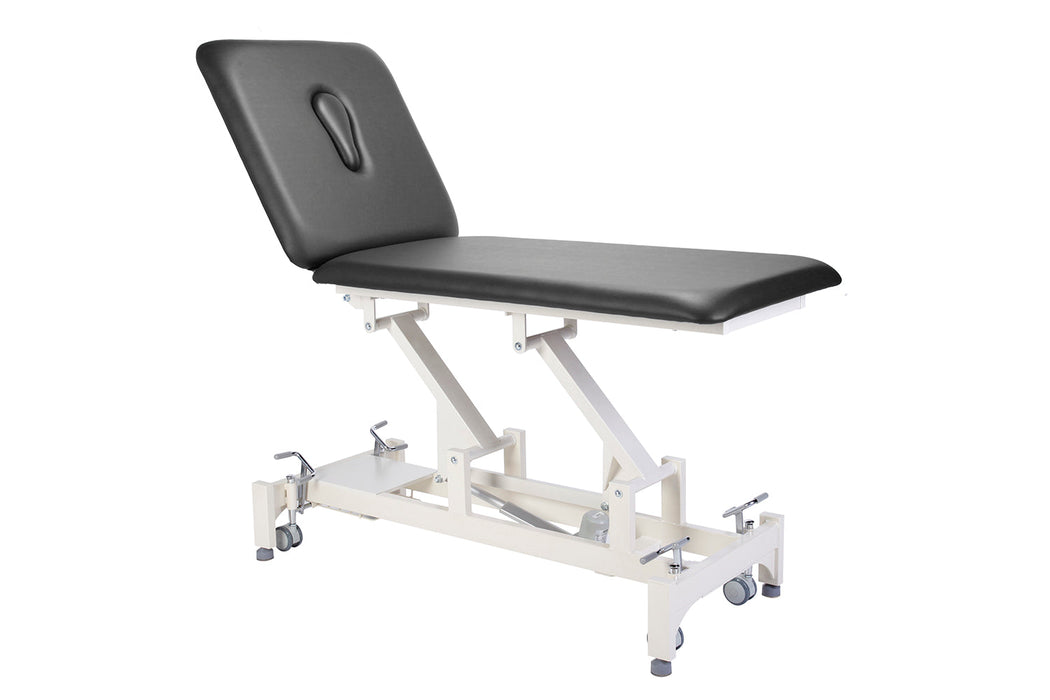

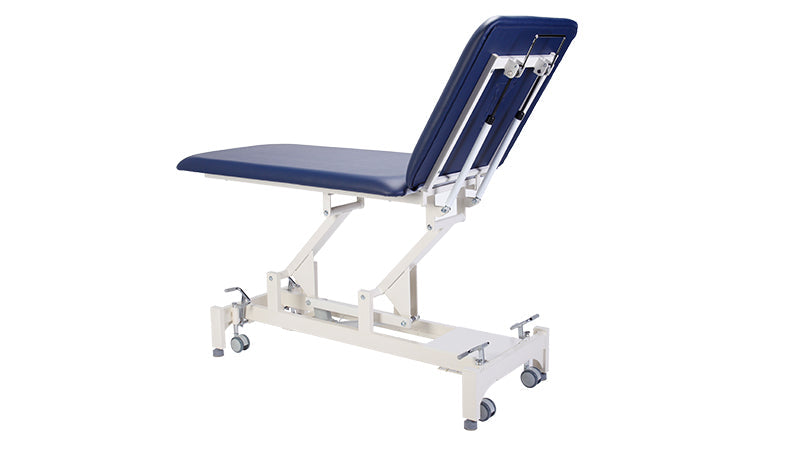

Everyway4all CA20 (DUO) 2-section Treatment Table with 4-side Elevating Bars

The CA20 Duo 2-Section Therapeutic Table comes with an electric motor for hi-lo physical therapy adjustments. This electric 2-section hi-lo physical therapy table for sale has always been a popular model. The body and leg section of the CA20 is made into a single piece that provides sturdy support at all times.

• Hydraulic version (CA20H) is also available (Pre-Order Only)
• Equipped with 1 Electric Motorized Actuator for Hi-Lo Therapy Table Adjustment
• Twin “Oversized” Pillars for Added Stability
• Retractable Castors at Both Ends

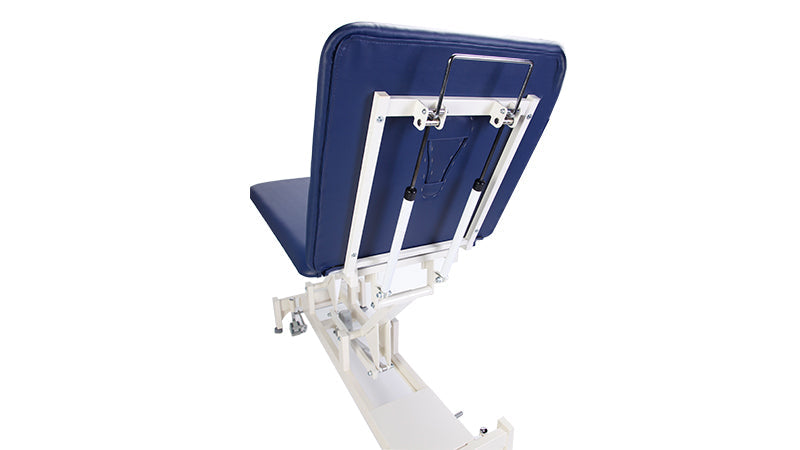

• Twin Gas Struts for Solid Head Section Support
• Maximum User Weight :225 kgs / 496 lbs
• 4-Side elevating foot bars
• 100~240VAC (Universal Voltage)
• Plug Type: US Plug

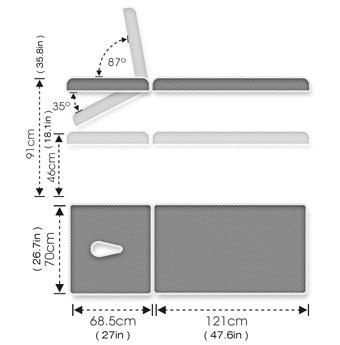

• Minimum Height: 460mm / 18.11” inch
• Maximum Height: 910mm / 35.83” inch
• Table Top Width: 700mm / 27.56” inch
• Head Section Length: 685mm / 26.97” inch
• Leg Section Length: 1210mm / 47.64” inch
• Total Length: 1930mm / 75.98” inch
• Head Tilt Angles: -35º to +87º
• Lift Mechanism: Electric
• Breathing Hole/Plug:1
• Retractable Castors: 4
• Weight Rating (Max. Load): 225kgs / 496lbs
• Weight: 190 lbs.
• Package Dimension: 88X32X22”H



Electrical Data

• Control Box Input Voltage & Rating: 100~240VAC, 50/60Hz, 2A
• Control Box Output Voltage: DC 32V, 80VA
• Actuator Input Voltage: DC 24V
• Duty cycle: Max. 10% 2min. ON / 18min. OFF
• Max. Load: Push 8000N
• Max. Current: Max. 6A

CERTIFIED TO AAMI / CSA / IEC / EN STD

AAMI ES 60601-1, CSA-C22.2 NO. 60601-1

IEC 60601-1, EN 60601-1

The electrical components used are approved by IEC 60601-1

Warranty policy:

1. 12-month on upholstery, head/foot/switch controls, castors leveling foot, and gas struts
2. 24-month on motorized actuator, control box, and metal side bars
3. 36-month on table frame and table pillars
