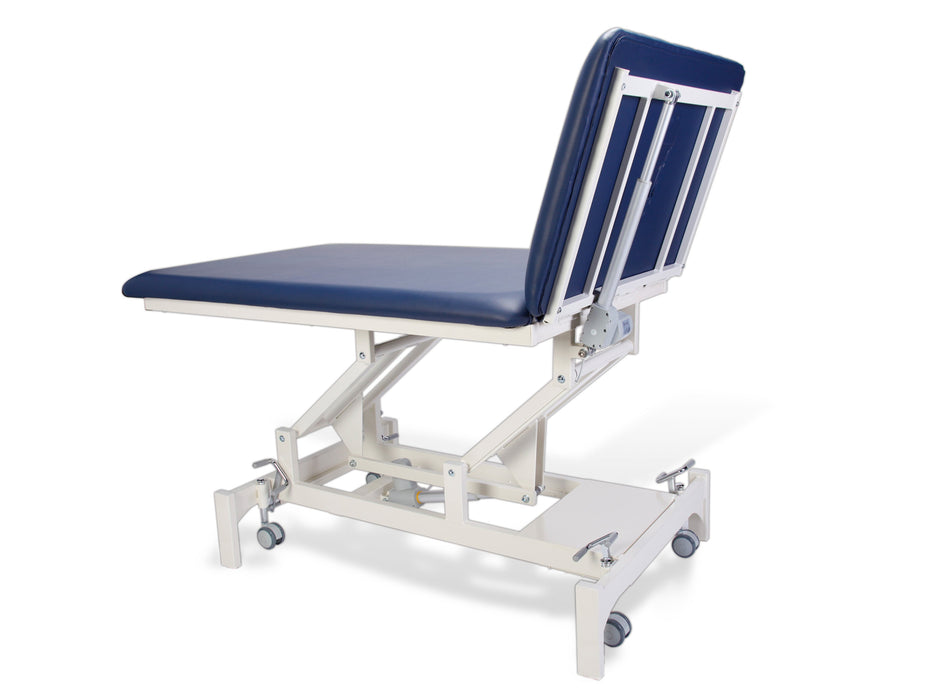

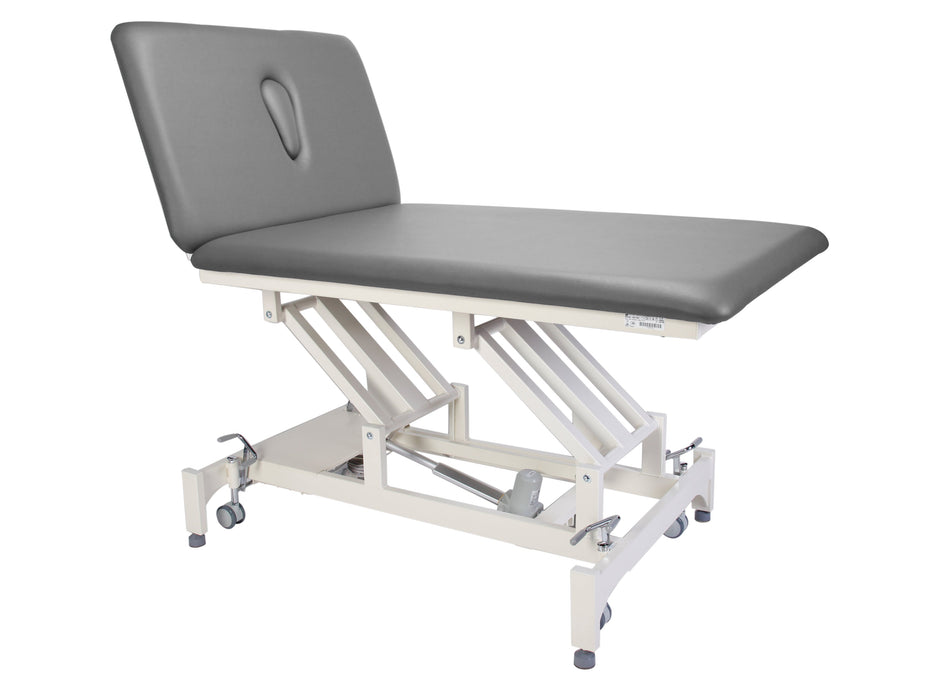

Everyway4all CA160 2-SECTION BO-BATH TABLE 40"/48" WIDE HEAVY DUTY with Foot Control

CA160 "BOBATH CONCEPT 2" - 2 Section Bobath Table (2 Motors)

Please select a size:  Width 40" or 48"

Main Features:

CA160 - 2 Section Bobath (Neurology) Table (BOBATH CONCEPT 2) is equipped with Re-Enforced Twin Pillars + Dual Side Support Beams. On top of the
heavy-duty frame of the wide CA160 Bobath Treatment Table is a large top with two different widths to choose from: 1 or 1.2 meter (39.37” or 47.24” inches).

The TWIN PILLARS of the CA160 Bobath Concept 2 Treatment Table are further re-enforced by dual-side support beams. The whole table is strengthened even further to provide patients with greater stability and support. This wide bobath treatment table can be lowered to a low 46cm (18” inches) off the ground which makes a sturdy neurological platform for patients to get ON or OFF the table from a wheelchair or bed. The CA160 Bobath Concept 2 Treatment Table, avaliable at an affordable price, can easily hold and support a patient’s weight of up to 250kgs / 551lbs due to it being a wider, more durable table.

• There are in total 2 Motorized Actuators:
• 1st Motorized Actuator controls the Height of Table
• 2nd Motorized Actuator controls the Back Rest
• Twin Oversized Pillars with Dual-Side Support for Greater Stability & Support
• Individual “Leveling Foot” on All 4 Corners
• Retractable Castors at Both Ends
• Maximum Load Capacity: 250kgs / 551lbs
• Warranty Period (Years):
• 100~240VAC (Universal Voltage)
• Plug Type: US plug

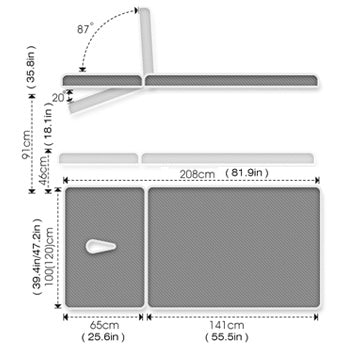

  Technical Specifications:

• Minimum Height: 460mm / 18.11” inch
• Maximum Height: 910mm / 35.83” inch
• Table Top Width: (1M) 1000mm / 39.37” inch, (1.2M) 1200mm / 47.24” inch
• Head Section Length: 650mm / 25.59" inch
• Body & Leg Section Length: 1410mm / 55.51" inch
• Total Length: 2080mm / 81.89” inch
• Head Tilt Angles: -20º to +87º
• Lift Mechanism: Electric
• Breathing Hole/Plug: 1
• Retractable Castors: 4
• Weight Rating (Max. Load): 250kgs / 551lbs
• Weight: 277 lbs.
• Package Dimension: 87x51x23”H



Electrical Data:

• Control Box Input Voltage & Rating: 100~240VAC, 50/60Hz, 2A
• Control Box Output Voltage: DC 32V, 80VA
• Actuator Input Voltage: DC 24V
• Duty cycle: Max. 10% 2min. ON / 18min. OFF
• Max. Load: Push 8000N
• Max. Current: Max. 6A

CERTIFIED TO AAMI / CSA / IEC / EN STD

AAMI ES 60601-1, CSA-C22.2 NO. 60601-1

IEC 60601-1, EN 60601-1

The electrical components used are approved by IEC 60601-1

Warranty policy:

1. 12-month on upholstery, head/foot/switch controls, castors leveling foot, and gas struts
2. 24-month on motorized actuator, control box, and metal side bars
3. 36-month on table frame and table pillars
