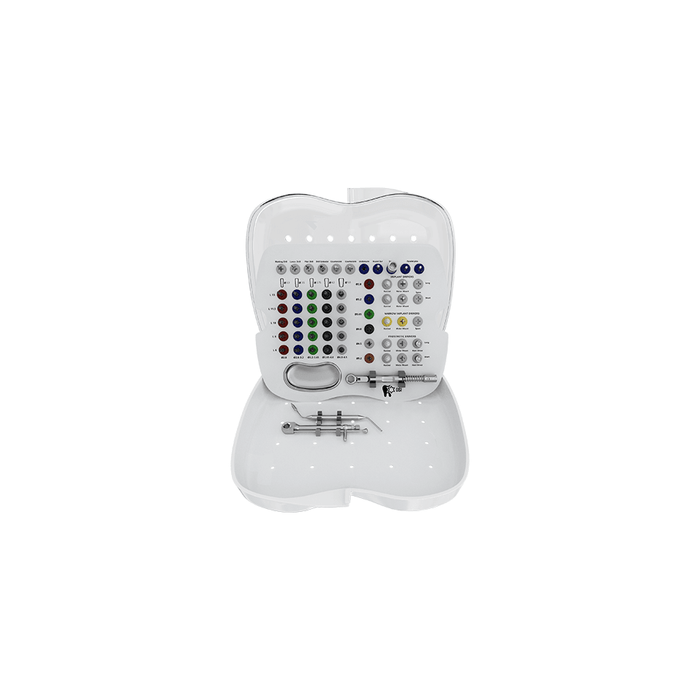

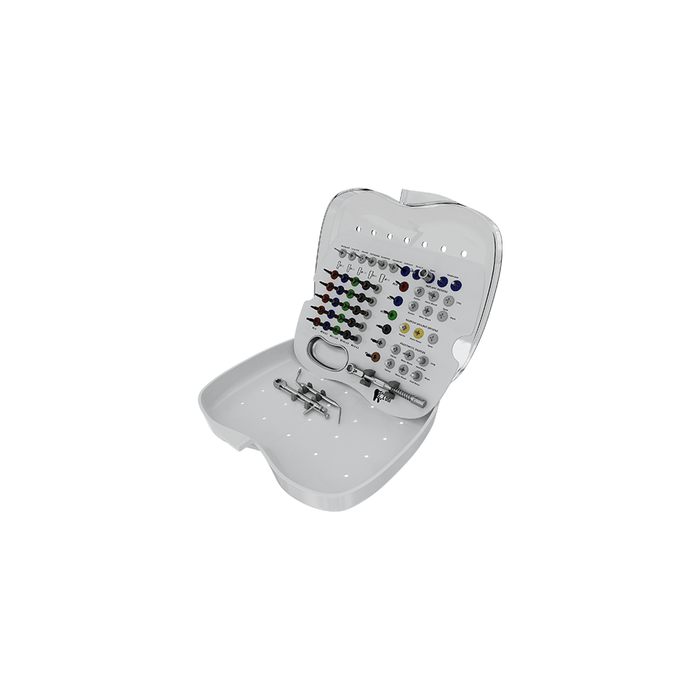

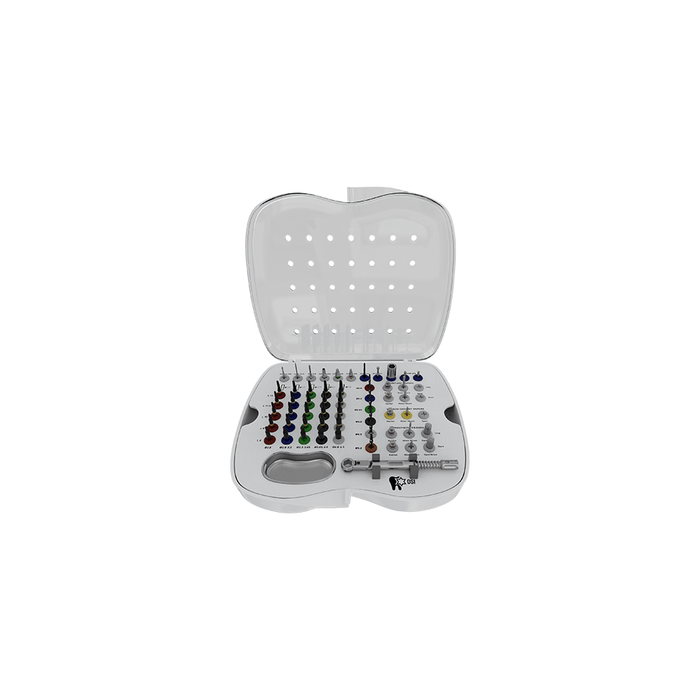

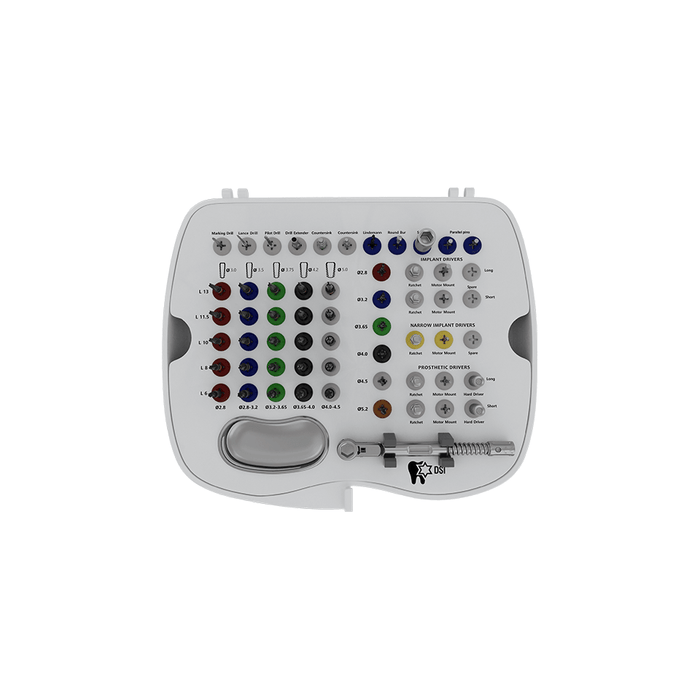

DSI Conical Surgical Kit is organized for the utmost convenience. All the instruments are labeled and arranged with an ergonomic design and intuitive usage in mind. The drills have been carefully placed according to a designated drilling protocol, allowing for effortless use during a drilling sequence. DSI Conical Stopper Drills and DSI Stepped Drills are compatible with DSI Implants and most of the platforms available on the market such as Alpha-Bio, A.B, ZIMMER, Adin, Cortex, Implant Direct, MIS, and more.
The DSI Surgical Conical Drills kit is also equipped with DSI Stepped Drills that are used for an initial perforation of the implant socket. Each of the stepped drills is following the drill being guided by the previous one. The dimensions of these drills and their shapes are made to fit implant geometries perfectly. The innovative design of DSI Stepped drills has been created with precision to modify the socket shape and reduce pressure on the implant neck. This provides more stable implantation, especially during the first weeks, which is critical in some cases. With DSI Stepped Drills being followed by the DSI Conical Drills the whole drilling procedure is significantly shortened resulting in improved efficiency and expediting the implant installation process.
All the drills, drivers, and other instruments have the best quality and are made only of top-grade stainless steel. it gives the instruments superior hardness, purity, and wearability. As of all each component is crafted with extreme accuracy and care to deliver the best results and work consistency that you need in the daily routine. Such determination and attention to detail result in an impressive set of instruments that have excellent sharpness, remarkable durability, and unbeatable precision.

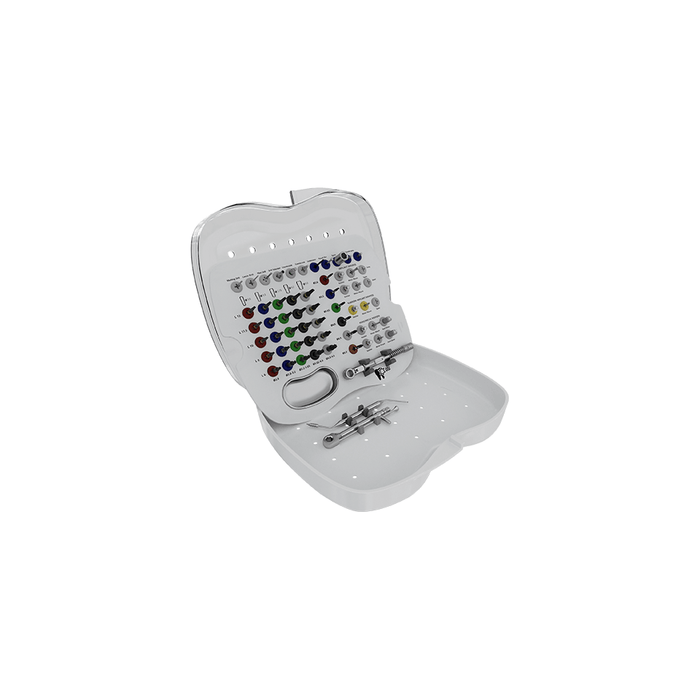

āThe instruments come in a special plastic polymer box with rigid rubber inserts and it is autoclavable at a temperature of 134Ā° C.
Features
ā¢ Outstanding performance and exceptional accuracy.
ā¢ Minimal heat generation as well as little vibration during the drilling sequence.
ā¢ Designed for optimal implantation, ensuring exceptional results each time.
ā¢ Reliable and safe solution for any drilling requirement.
ā¢ Reduce the time of healing for patients.
ā¢ 100% compatible with any DSI implants and most of the platforms available on the market such as Alpha-Bio, A.B, ZIMMER, Adin, Cortex, Implant Direct, MIS, and more.
ā¢ Diamond-like Carbon DLC coating for a superior finish, and unbeatable performance.
ā¢ Built with quality and consistency in mind.

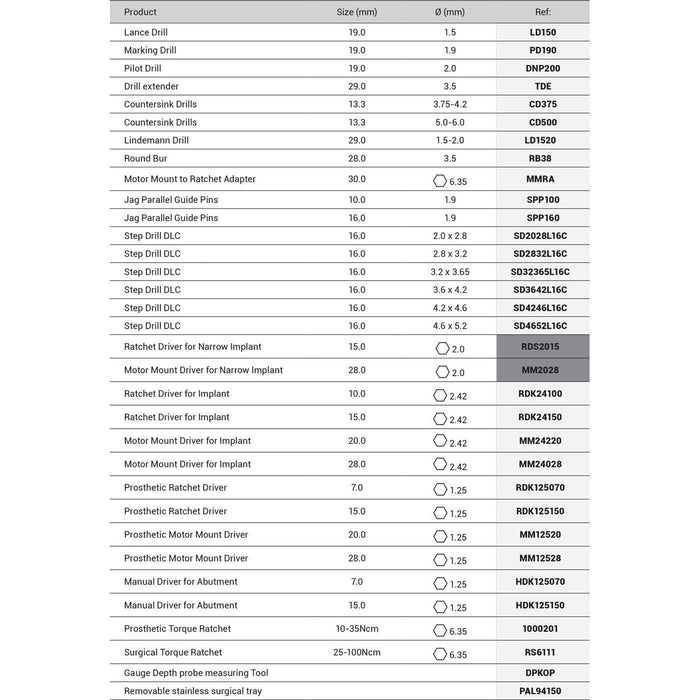

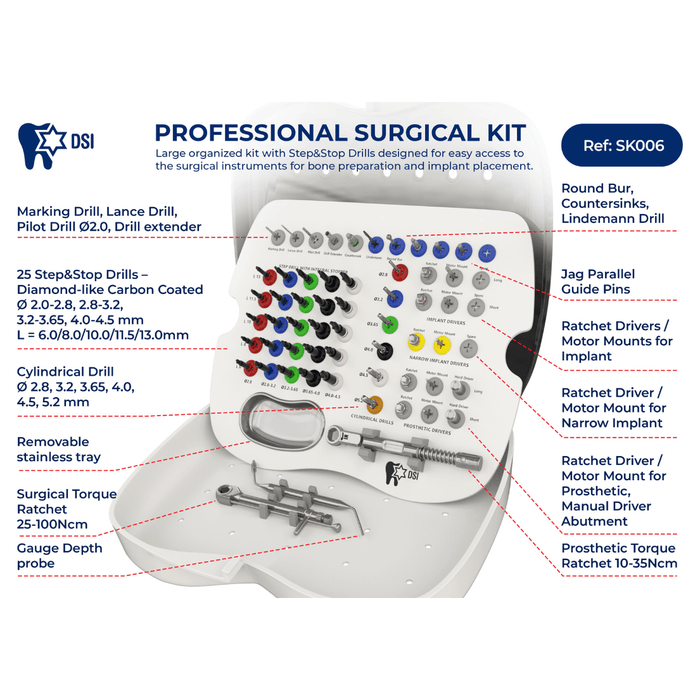

SK006C: FullĀ DSI Conical Drills Surgical Kit
ā

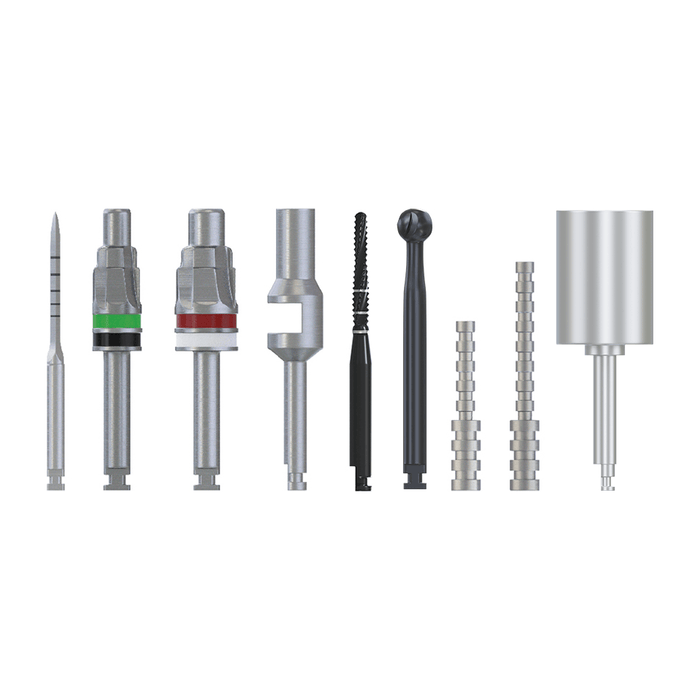

LD150:Ā Lance drill Ć1.5mm
PD190:Ā Marking drill Ć1.9mm
PD200:Ā Pilot drill Ć2.0mm
TDE:Ā Drill extender
CD375, CD500:Ā Countersink drills Ć3.75-4.2 and 5.0-6.0mm
LD1520:Ā Lindemann drill Ć1.5-2.0mm
RB38:Ā Round bur Ć3.5mm
MMRA:Ā Motor mount to ratchet adapter
SPP100, SPP160:Ā Jag parallel guide pins L 10 and 16mm

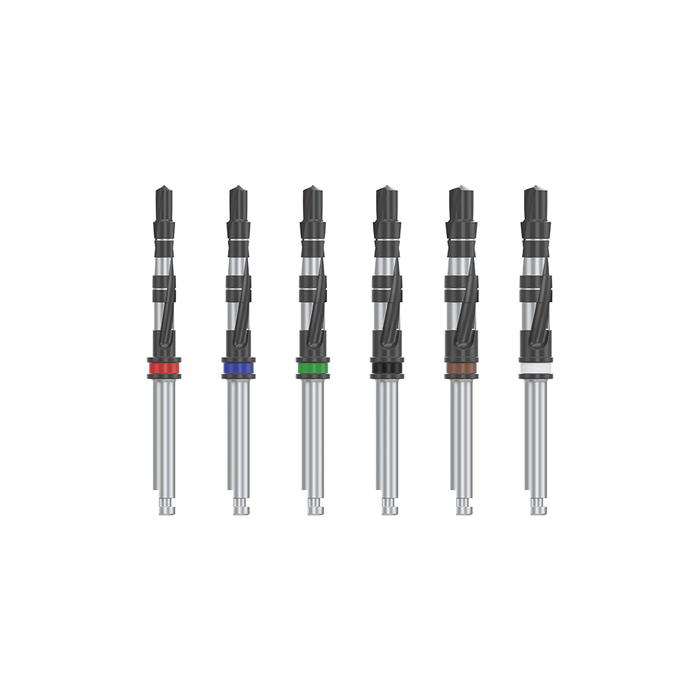

SD2028L16C, SD2832L16C, SD32365L16C, SD3640L16C, SD4045L16C, SD4652L16C:Ā Step drill with DLC coating Ć2.0x2.8, 2.8x3.2, 3.2x3.65, 3.6x4.0, 4.0x4.5, 4.6x5.2mm L 16mm

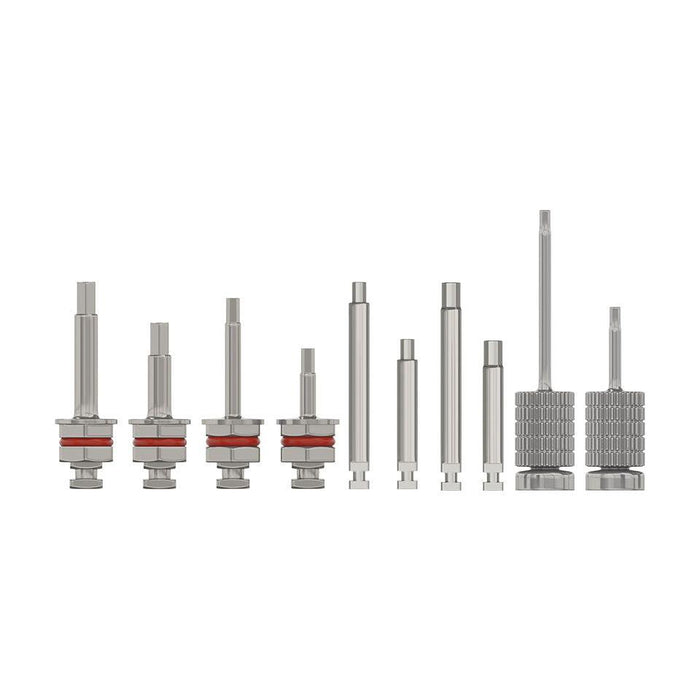

RDS2015:Ā Ratchet driver for narrow implant Ć2.0mm
MM2028:Ā Motor mount driver for narrow implant Ć2.0mm
RDK24100, RDK24150:Ā Ratchet driver for implant Ć2.42mm L 10 and 15mm
MM24220, MM24028:Ā Motor mount driver for implant Ć2.42mm L 20 and 28mm
RDK125070, RDK125150:Ā Ratchet driver for prosthetics Ć1.25mm L 7.0 and 15.0mm
MM12520, MM12528:Ā Motor mount driver for prosthetics Ć1.25mm L 20.0 and 28.0mm
HDK125070, HDK125150:Ā Manual driver for prosthetics Ć1.25mm L 7.0 and 15.0mm

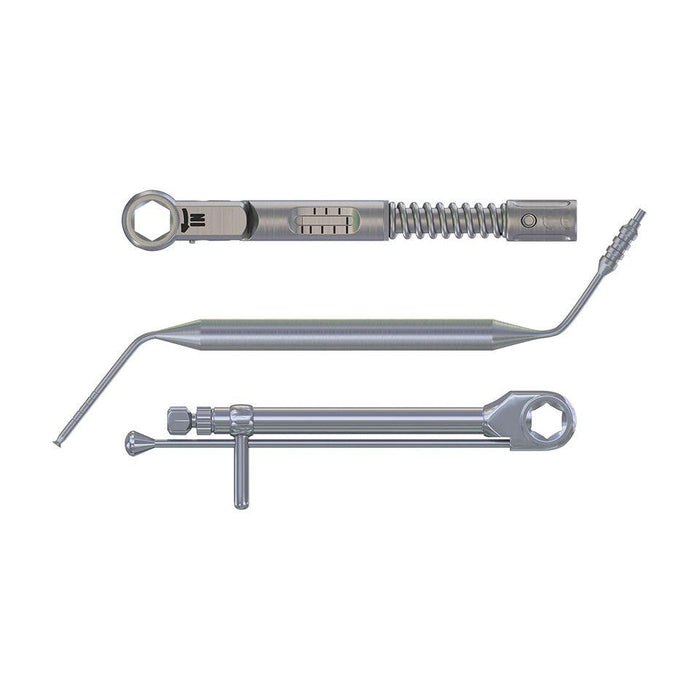

1000201:Ā Torque ratchet with hexagonal head Ć6.35mm 10-35Ncm
RS6111:Ā Surgical torque ratchet with hexagonal head Ć6.35mm 25-100Ncm
DPKOP:Ā Depth gauge probe measuring tool
PAL94150:Ā Removable stainless steel surgical tray

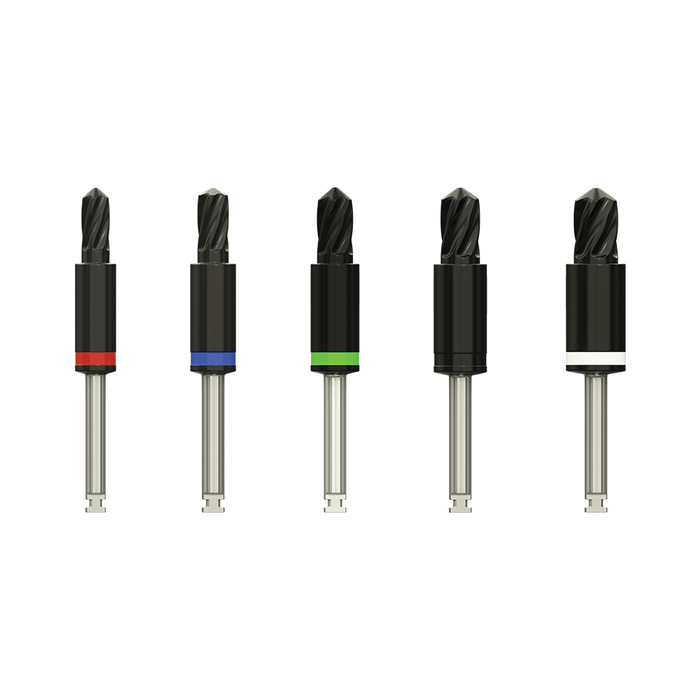

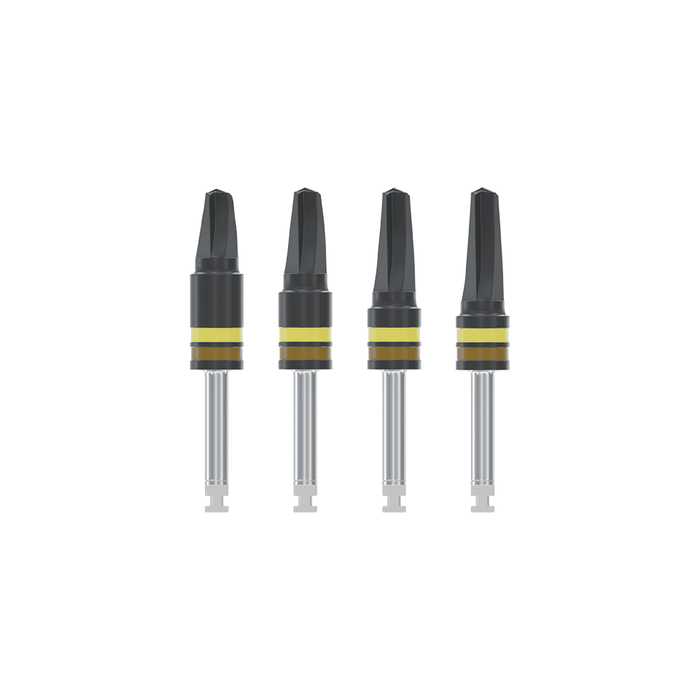

TD280L6SC, TD320L6SC, TD365L6SC, TD400L6SC, TD450L6SC:Ā DLC coatd stopper drills Ć2.8, 3.2, 3.65, 4.0, 4.5mm

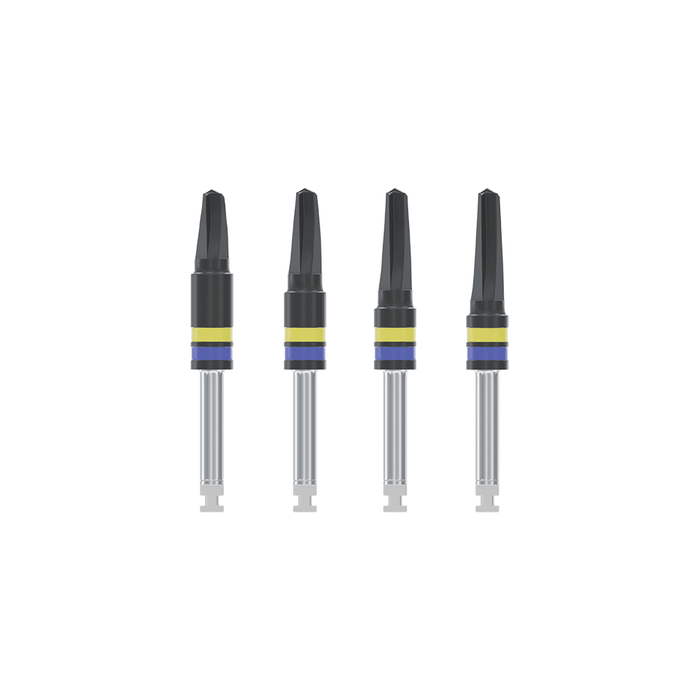

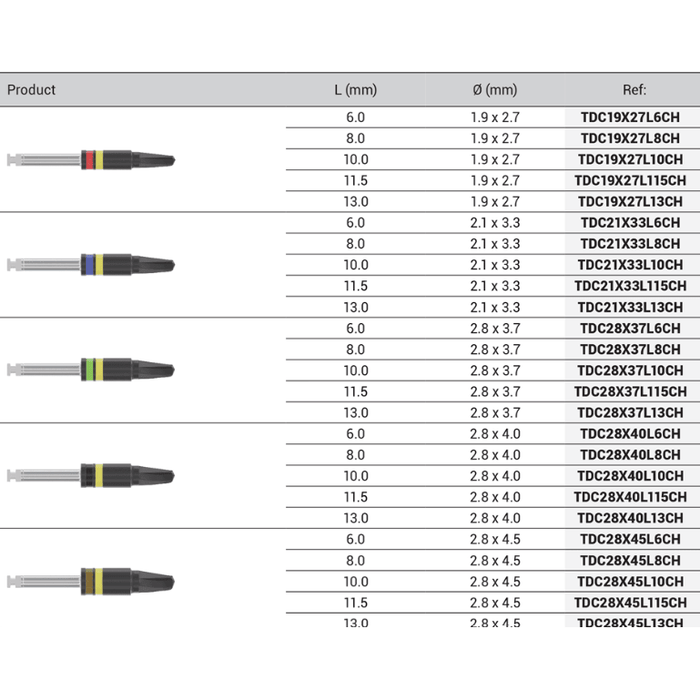

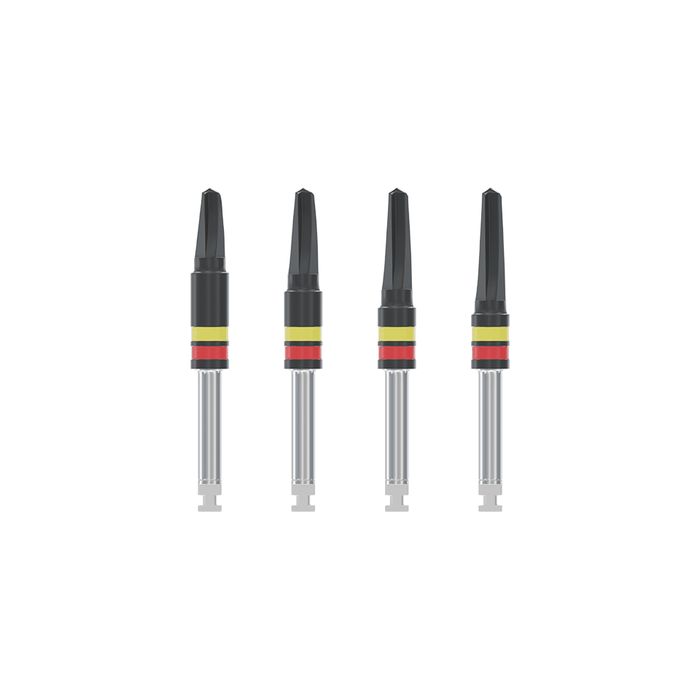

TDC19X27L8CH, TDC19X27L10CH, TDC19X27L115CH, TDC19X27L13CH:Ā Ć1.9-2.7mm L 8, 10, 11.5, 13mm
TDC21X33L8CH, TDC21X33L10CH, TDC21X33L115CH, TDC21X33L13CH:Ā Ć2.1-3.3mm L 8, 10, 11.5, 13mm
TDC28X37L8CH, TDC28X37L10CH, TDC28X37L115CH, TDC28X37L13CH:Ā Ć2.8-3.7mm L 8, 10, 11.5, 13mm
TDC28X40L8CH, TDC28X40L10CH, TDC28X40L115CH, TDC28X40L13CH:Ā Ć2.8-4.0mm L 8, 10, 11.5, 13mm
TDC28X45L8CH, TDC28X45L10CH, TDC28X45L115CH, TDC28X45L13CH:Ā Ć2.8-4.5mm L 8, 10, 11.5, 13mm
