Drive Medical Vacu-Aide® QSU Quiet Suction Unit 7314D-D

Original price $435.00 - Original price $435.00
Original price
$435.00 - $435.00
Current price $435.00

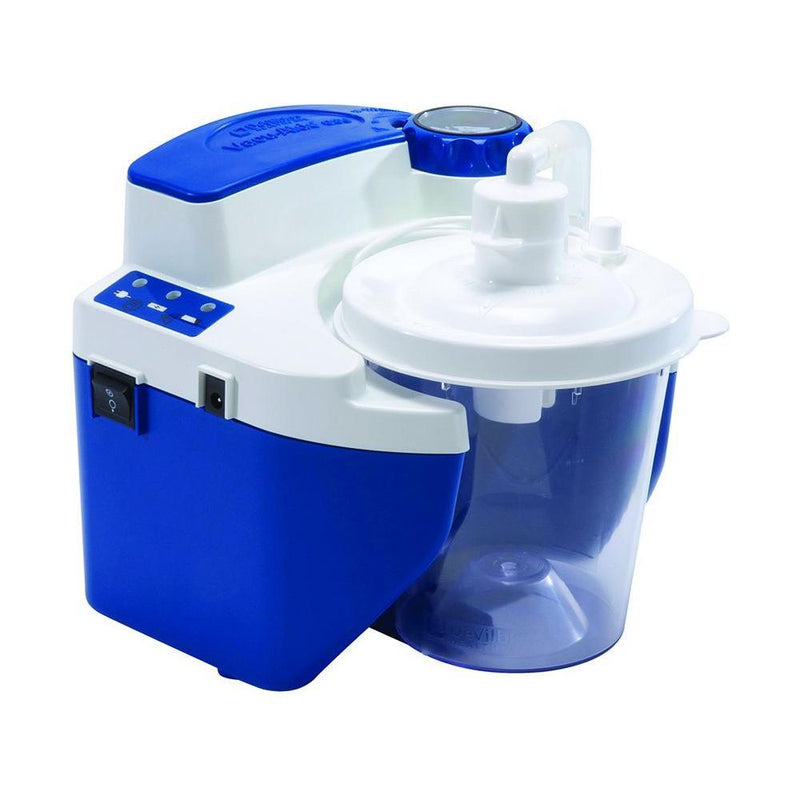

Drive Medical Vacu-Aide® QSU Quiet Suction Unit  7314D-D


  • With more than 50% reduction in sound, the Vacu-Aide QSU is the quietest high flow/high suction portable unit on the market, making it a smart choice for patients from neonate to adult

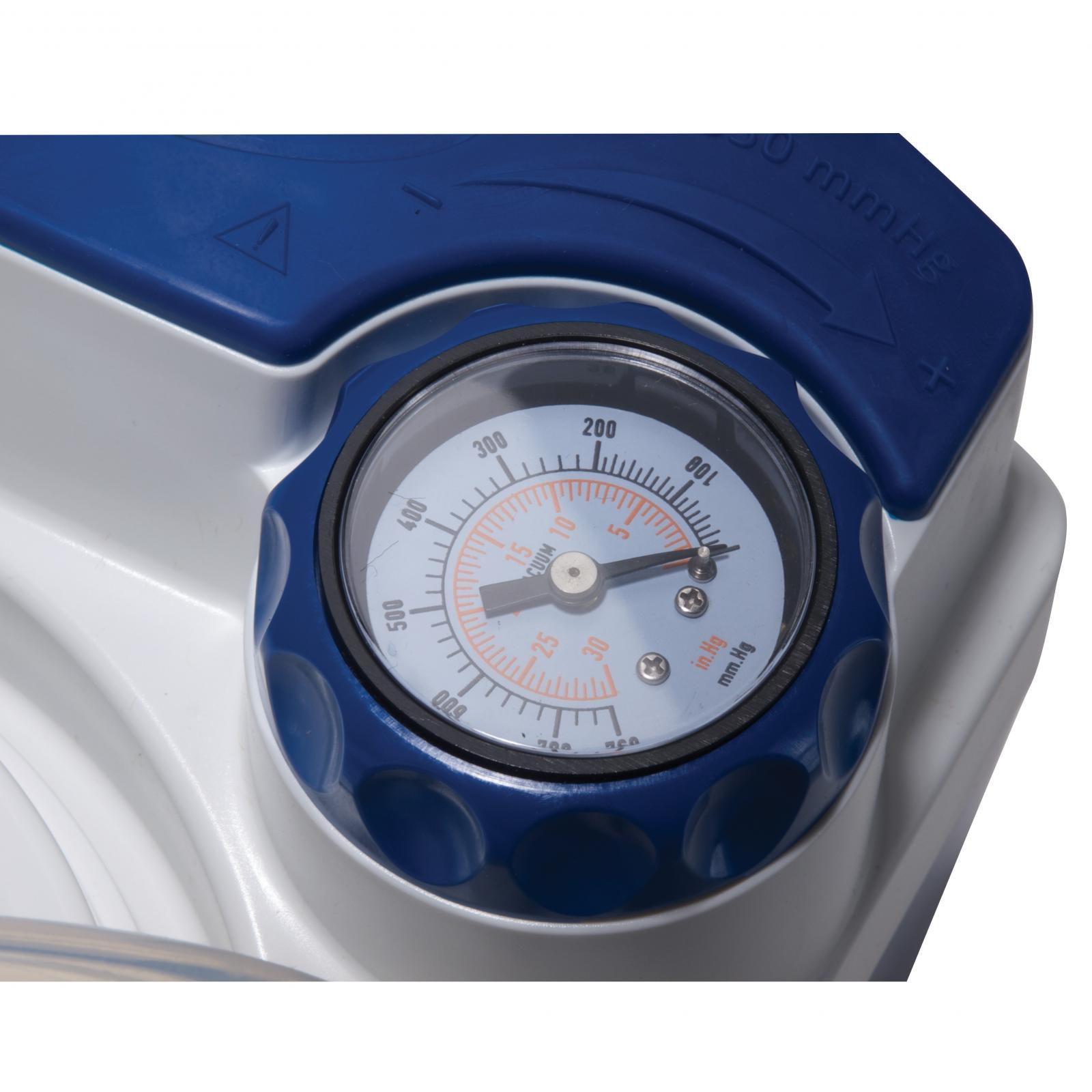

  • Vacuum adjustment allows for 50-550 mm Hg and a free flow of 27 liters/minute (Figure A)
  • Optional sealed lead acid battery for use up to one-hour operation
  • Meets American Association for Respiratory Care (AARC) guidelines for neonatal, infant, child and adult homecare suctioning
  • Can return a patient to a state of comfort quickly – Meets ISO 10079-1:2009 high vacuum, high flow classification

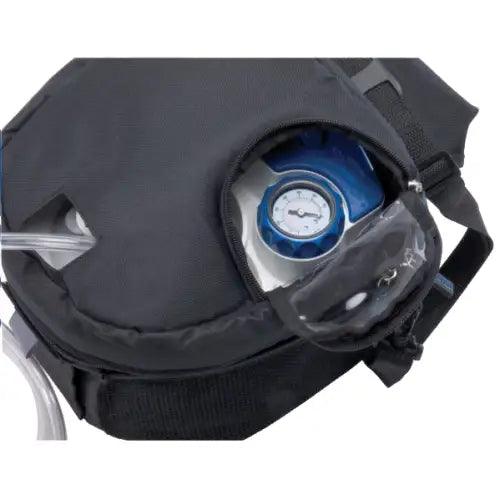

  • Unit can be operated while inside the carrying case (Figure B-C)
  • Float shutoff on container to protect against overflow and integrated bacteria filter to prevent back flow


Dimensions 8.0" (W) x 8.3" (H) x 8.5" (D)
Electrical Requirements 100-240V, 50/60 Hz, 1.2A Max., 12 V
Flow Range 27 lpm Free Flow, Unrestricted
Power Consumption 33 Watts Max.
Sound Level 55 dBA Typical
Vacuum Range 50-550 mmHg
Warranty Limited 2 Years on Unit, Limited 90 Days on Battery
Weight 6.6 lbs


Download PDFDownload Catalog Page

Download PDF Owners Manual
