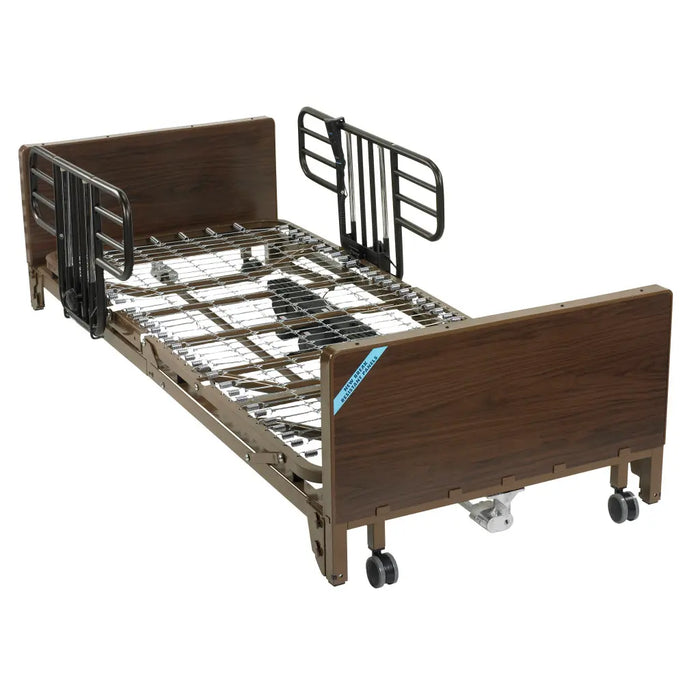

Drive Medical Delta® Ultra-Light 1000 Full-Electric Low Bed — 15235BV-PKG-1

Description

Delta® Ultra-Light 1000 Full-Electric Low Bed.

Product Options

Selected manufacturer item: 15235BV-PKG-1.

Related models in this product family: 15235, 15235BV-FR, 15235BV-HR, 15235BV-PKG, 15235BV-PKG-1, 15235BV-PKG-1-T, 15235BV-PKG-T. This listing is for 15235BV-PKG-1.

Features

• The Delta 1000 is truly universal because the bed frame can be used with Drive's and most other manufacturers' bed ends, old and new
• The transition box mounted on the foot section is key to interchangeability (Figure A)
• The transition box allows you to change the rotation of the high/low shaft
• Headboard is taller than footboard to better fit home decor (Figure B)
• The wood grain panels are break and scratch resistant
• Once installed, the high/low shaft will stay with the bed to eliminate loss or forgetting on future installations (Figure C)
• Labels and color-coded springs assure accurate installation of side rails for patient safety (Figure D)
• Unique motor is completely self-contained to reduce weight and noise
• 9.25" to 23" deck height
• Easy to set up
• Top mounted Hi/Lo crank accessibility
• Height-adjustable motor comes pre-installed on the foot section
• Caster easily moves from standard to low bed position
• The motor assembly can be installed and removed with patient in bed
• Bed, side rails and mattress safety-tested by SGS, a nationally recognized testing facility Satisfies all applicable FDA entrapment guidelines
• The motor is UL approved
• In the event of a power failure, a 9 volt battery, located in the hand control, can lower the head and foot sections nine times
• New and improved hand pendant has large, easy-to-use controls (Figure E)
• Bed ships in two cartons
• Hand crank located on the top of the footboard prevents bending for the caregiver when in the low position (Figure F)
• Channel frame construction provides superior strength and reduced weight
• Zinc-coated spring deck
• Extension kit available (model #15030EXTKIT) extends length from 80" to 84"
• Patent Pending
• Weight Capacity 450 lbs

Specifications
