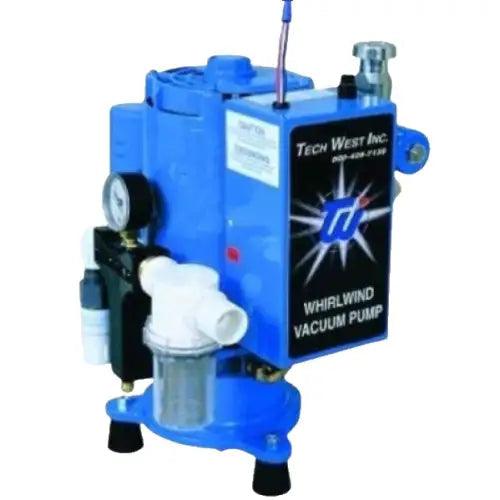

Dental Vacuum Pump VPL3SS / VPL3SSR

TECH WEST WHIRLWIND LIQUID RING SINGLE VACUUM PUMP
Models: VPL3SS / VPL3SSR

TECH WEST WHIRLWIND LIQUID RING VACUUM SYSTEM

Tech West Whirlwind liquid ring vacuum systems are engineered for reliable, long-term performance in professional dental equipment environments. These systems are designed to provide consistent operation with reduced maintenance requirements.

Whirlwind systems are available in single, dual, or triple configuration options. Air-water separators and water recyclers are available for select configurations. Tech West provides technical assistance for electrical and plumbing layouts upon request.

Specifications

Model: VPL3SS
System Capacity: Up to 3 operatory connections
Voltage: 115 / 230
Breaker Size: 20
Horsepower: 1.5 HP
Air-Water Separator: No
Water Recycler: No
Sound Level: 70 dB(A)
Dimensions: 18” H × 13” D × 13” W
Weight: 66 lbs
Shipping Weight: 81 lbs

Model: VPL3SSR
System Capacity: Up to 3 operatory connections
Voltage: 115 / 230
Breaker Size: 20
Horsepower: 1.5 HP
Air-Water Separator: No
Water Recycler: Yes
Sound Level: 70 dB(A)
Dimensions: 18” H × 13” D × 13” W
Weight: 66 lbs
Shipping Weight: 81 lbs

Warranty

Tech West Exclusive Warranty 5 • 4 • 3

• 5 years on the motor shaft
• 4 years on the brass components
• 3 years on all other components
