Clinton Power Imaging (ECHO) Table with Window Drop and Stirrups 85309

Original price $2,850.00 - Original price $2,850.00
Original price
$2,850.00
$2,850.00 - $2,850.00
Current price $2,850.00

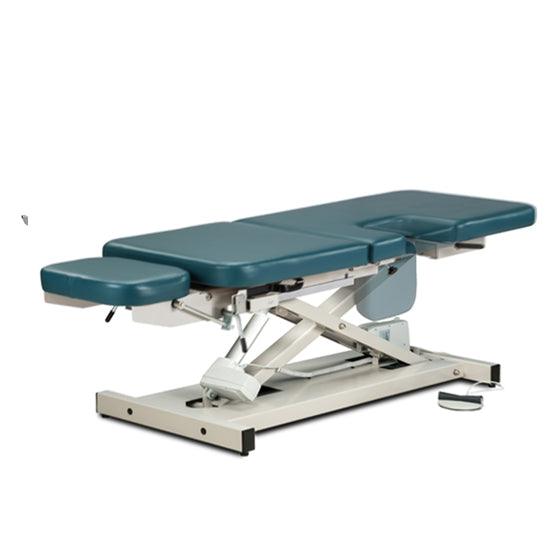

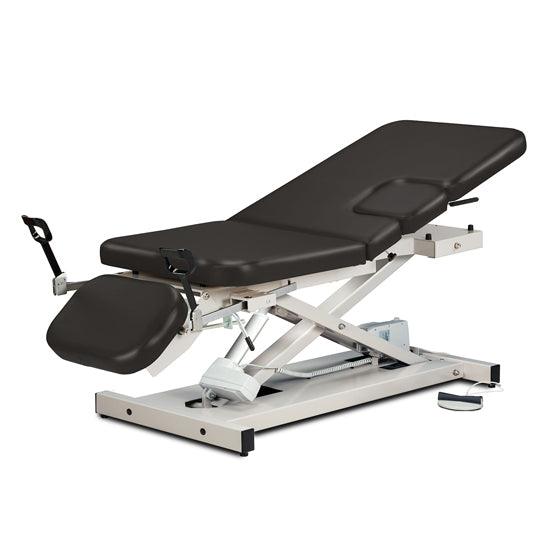

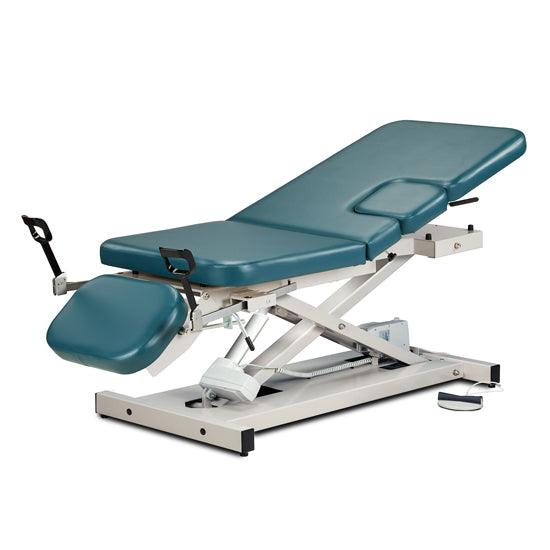

Clinton Power Imaging (ECHO) Table with Window Drop and Stirrups 85309

  • Pneumatic backrest is adjustable from either side and raises 80 degrees from flat
  • Footrest is adjustable from either side and lowers up to 80 degrees from flat
  • 10" x 10" hinged imaging window section with metal slide latch
  • Retractable, 2-position, length adjustable stirrups
  • Electric power height adjustment with foot control
  • Ultra-strong, uni-frame base and top construction
  • Heavy duty, all welded, lift mechanism
  • Durable gray powder-coated steel frame
  • Self-lubricating pivot points
  • Smooth 110 volt electric height adjustment
  • Power supply and motor meets UL 60601-1 and CAN/CSA C22.2 601.1
  • Hands-free low voltage foot control
  • Easy service, self contained, electrical components
  • Rounded corner, upholstered top
  • 2" ultra-firm padding
  • Low height may help achieve ADA tax credit
  • Customize with options
  • Made in the USA by Clinton Industries
  • 500 lbs. (227 kg) load capacity under normal use

Download Spec Sheet

85309 Open Base, Multi-Use Power Imaging Table with Stirrups Length Width Height Range
85309 (overall) 76" 27" 18" – 35"
Backrest 38" 27"
Drop Section 13" 19"



OPTIONS:

080 Safety Straps

• 2" x 89.5" (5 cm x 228 cm) strap is secured with quick hook and loop fasteners
• 2 safety staps per set.
• Bariatric straps available: 2" x 120" (5 cm x 305 cm) strap is secured with quick hook and loop fasteners

082 Side Rails

• Pair
• Positions up and down
• Plunger height adjustment
• 29" x 12"

084 Hand-Held Height Control

• Alternative to foot control
• Stores easily under top when not in use

NOTE: This option REPLACES the foot controller. ONLY the hand-held controller will accompany the table.

087 Locking Casters

• 3" heavy duty, rubber wheel, easy-roll casters

Note: The addition of casters adds 6" to the overall width of the table. (15.24 cm)

030 Paper Dispenser- Power Table

• Accommodates paper rolls from 18" (45.72cm) to 21" (53.34cm) wide

034-Paper Dispenser/Cutter Combo-Power Table

040 Paper Cutter-Power Table

• Clear plastic with elastic straps and buckle

Availability:
2 in stock, ready to be shipped
