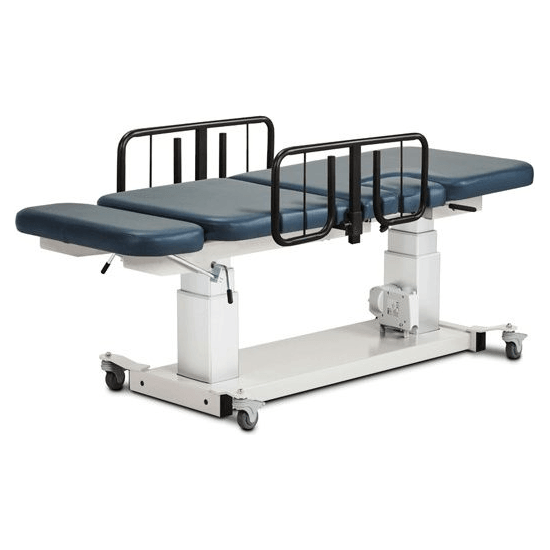

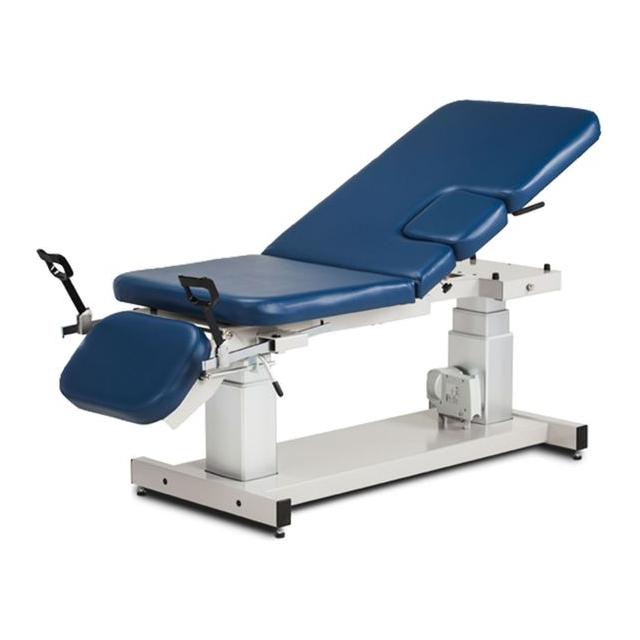

Clinton Multi-Use, Imaging Table with Stirrups and Drop Window 80079
Clinton Multi-Use, Imaging Table with Stirrups and Drop Window 80079
- Three-section table with pneumatic adjustable backrest, manual footrest, stirrups and window drop
- Footrest is adjustable from either side and lowers up to 80º from flat position
- Optional side rails & casters (see options below)
- Trendelenburg/Reverse Trendelenburg plus or minus 15º
- Easy-to-use hand control
- All-welded base and top frame
- Unobstructed base design
- Dual column lift system adds rigidity
- Paper dispenser included
- Power supplies and motors meet UL 60601-1 and CAN/CSA C22.2 601.1
- Industry leading 5-year, limited warranty
- 34" wide model available
- Model 80079: 500 lbs load capacity under normal use
- Model 80079-X: 600 lbs load capacity under normal use
80079 Multi-Use, Imaging Table with Stirrups and Drop Window | Length | Width | Height Range |
---|---|---|---|
80079 (overall) | 76" | 27" | 21.5" – 37.5" |
Backrest | 38" | 27" | |
Footrest | 12" | 18.5" | |
Window | 10" | 10" | |
80079-X (overall) | 76" | 34" | 21.5" – 37.5" |
Backrest | 38" | 34" | |
Footrest | 12" | 18.5" | |
window | 10" | 10" |
COLOR CHARTS:
OPTIONS:
011 Power Backrest
• Smooth power control raises backrest to 80º and lowers to flat
080 Safety Straps
• 2" x 89.5" (5 cm x 228 cm) strap is secured with quick hook and loop fasteners
• 2 safety staps per set.
• Bariatric straps available: 2" x 120" (5 cm x 305 cm) strap is secured with quick hook and loop fasteners
087 Locking Casters
• 3" heavy duty, rubber wheel, easy-roll casters
Note: The addition of casters adds 6" to the overall width of the table. (15.24 cm)
090 Power Footrest
• Smooth power control lowers footrest to 30º and raises to flat
098 Side Rails
• Pair
• Positions up and down
• Plunger height adjustment
• 29" x 12"
040 Paper Cutter-Power Table
• Clear plastic with elastic straps and buckle
