Clinton Imaging Table with Three-Section Top and Drop Window 80073

Regular price $4,180.00 Sale

Clinton Imaging Table with Three-Section Top and Drop Window 80073 Three-piece top with pneumatic adjustable backrest, manual footrest and window drop Footrest is adjustable from either side and lowers up to 80º from flat position Optional side rails & casters...

ESTIMATED DELIVERY BETWEEN and .

Product Type: Examination Chairs & Tables

Collections: Power Table

Product Details

Clinton Imaging Table with Three-Section Top and Drop Window 80073

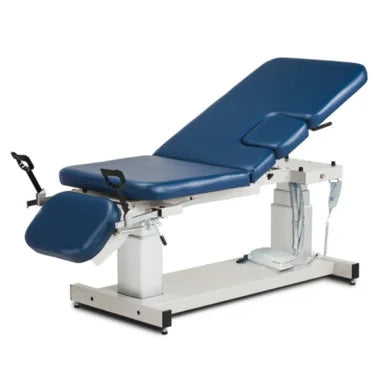

  • Three-piece top with pneumatic adjustable backrest, manual footrest and window drop
  • Footrest is adjustable from either side and lowers up to 80º from flat position

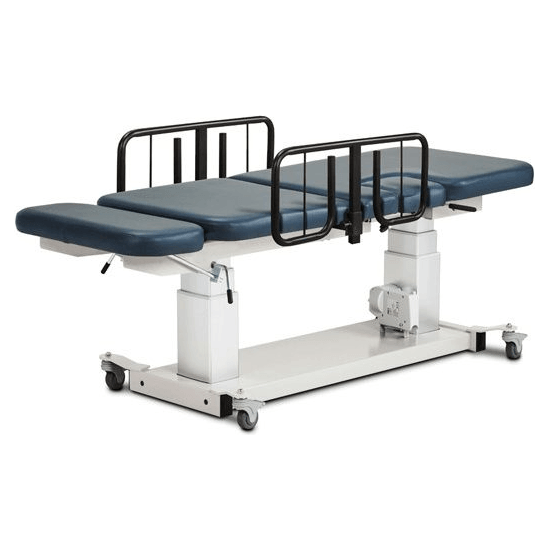

  • Optional side rails & casters (see options below)

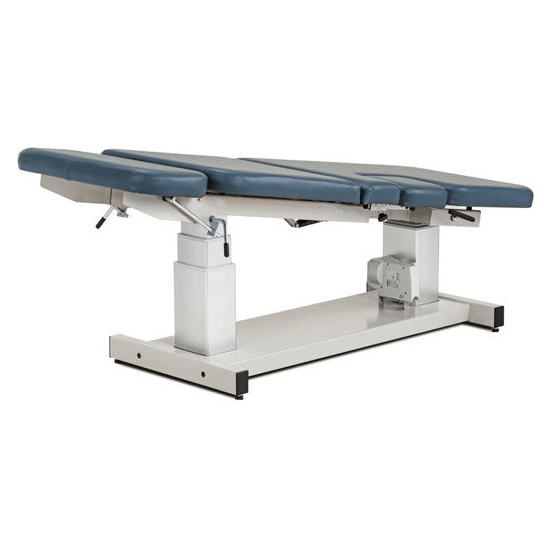

  • Trendelenburg/Reverse Trendelenburg plus or minus 15º
  • Easy-to-use hand control
  • All-welded base and top frame
  • Unobstructed base design
  • Dual column lift system adds rigidity
  • Paper dispenser included
  • Power supplies and motors meet UL 60601-1 and CAN/CSA C22.2 601.1
  • Industry leading 5-year, limited warranty
  • 34" wide model available
  • Model 80073: 500 lbs load capacity under normal use
  • Model 80073-X: 600 lbs load capacity under normal use

Download Spec Sheet

80073 Imaging Table with Three-Section Top and Drop Window Length Width Height Range
80073 (overall) 76" 27" 21.5" – 37.5"
Backrest 38" 27"
Footrest 12" 27"
Window 10" 10"
80073-X (overall) 76" 34" 21.5" – 37.5"
Backrest 38" 34"
Footrest 12" 34"
Window 10" 10"



COLOR CHARTS:

OPTIONS:

011 Power Backrest

• Smooth power control raises backrest to 80º and lowers to flat

080 Safety Straps

• 2" x 89.5" (5 cm x 228 cm) strap is secured with quick hook and loop fasteners
• 2 safety staps per set.
• Bariatric straps available: 2" x 120" (5 cm x 305 cm) strap is secured with quick hook and loop fasteners

087 Locking Casters

• 3" heavy duty, rubber wheel, easy-roll casters

Note: The addition of casters adds 6" to the overall width of the table. (15.24 cm)

090 Power Footrest

• Smooth power control lowers footrest to 30º and raises to flat

098 Side Rails

• Pair
• Positions up and down
• Plunger height adjustment
• 29" x 12"

040 Paper Cutter-Power Table

• Clear plastic with elastic straps and buckle
