Description
Model #148072L

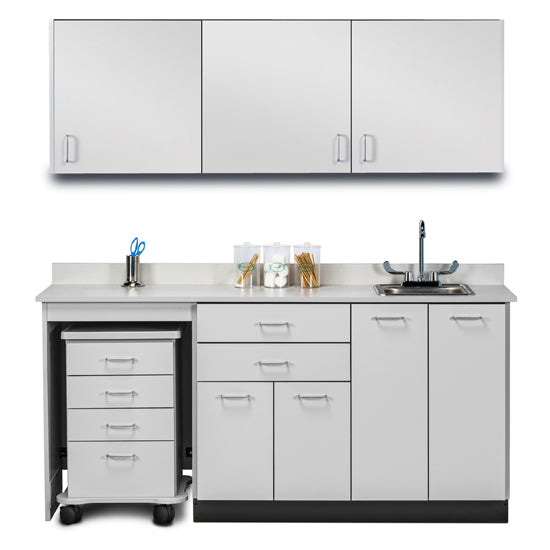

Combination 72" Wall & 72" Cart-Mate, Base Cabinet/Cart Left
Pictured with optional sink
- Wall cabinet with 3 doors and 2 adjustable shelves
- Base cabinet with 4 doors, 2 adjustable shelves, 2 drawers and cart-port
- Easy-clean, all laminate surfaces
- Tough, chip resistant edges
- Unit is pre-assembled to save installation time
- Fully adjustable, soft-close hinges
- 3.25" backsplash included with top
- Laminate cart with 4 soft-close drawers, 3" swivel casters,
plastic bumper and one-piece, vacuum-formed, gray-haircell,
textured, top rimmed on all sides
- Cabinet has smooth-glide drawers with one-piece, metal sides hold up to 75 lbs.
- Satin finish pulls
- Choice of solid or woodgrain laminates for cabinet and cart
- Choice of 6 laminate colors for countertop
Download Manufacturer Document (PDF)
Download Data SheetSpecifications
|
148072L Combination 72" Wall & 72" Cart-Mate, Base Cabinet/Cart Left |
Width |
Depth |
Height |
| Imperial |
|---|
| 8272 Wall Cabinet |
60" |
12" |
24" |
| 48072L Base Cabinet |
60" |
18" |
35" |
| Cart |
20" |
18.5" |
29.5" |
| Metric |
|---|
| 8272 Wall Cabinet |
183 cm |
30 cm |
61 cm |
| 48072L Base Cabinet |
183 cm |
46 cm |
89 cm |
| Cart |
51 cm |
47 cm |
75 cm |
Options
Optional accessories are sold separately unless specified in the selected configuration.
022 Stainless Steel Sink and Gooseneck Faucet with Wing Levers
• Stainless steel sink with wing lever, chrome faucet set
• Sink dimensions: Outside: 15" x 15" / Basin: 10" x 12" x 6"
• Faucet height: 14.5"
• Faucet radius: 3"
• All sink openings are pre-cut into the top for easy installation
For Standard Laminate and Fashion Finish Cabinets
If the location of the sink is not specified "as shown", you may choose to locate the sink on the right or on the left side (or center on 72" cabinets only) of the base cabinet. Please specify when ordering.
For Cart-Mate Cabinets, sink may only be placed as show for each model
Click here for drawing
042 Cart-Mate Cart Option
• Cart-Mate cart with 1 drawer, 1 door and 1 adjustable shelf
• Cabinet mounted on four, 3" locking, swivel casters
• One-piece, vacuum-formed, gray-haircell, textured, top rimmed on all sides
• ClintonClean™ solid plastic bumper base
• Satin finish pulls
• Finish matches cabinet selection
043 Cart-Mate Cart Option
• Cart-Mate cart with 2 drawers, 1 door and 1 adjustable shelf
• Cabinet mounted on four, 3" locking, swivel casters
• One-piece, vacuum-formed, gray-haircell, textured, top rimmed on all sides
• ClintonClean™ solid plastic bumper base
• Satin finish pulls
• Finish matches cabinet selection
044 Add a Cabinet Drawer
• Available for any base model
• Maximum 5 drawer limit in each vertical cabinet section
• NOTE: Each vertical cabinet section can only be configured with 1 drawer, 2 drawers or 5 drawers (Drawers can not be positioned under a sink)
055 Door and Drawer locks
• Individual cam lock for doors and drawers
• Independently operated
• Orders with multiple locks will be all keyed alike unless specified differently
Note: Locking features not meant to secure restricted items or narcotics.
066 Door Lock and Inside Latch Combo.
• Used on double door units,one door will have a lock, the other door will have a slide latch on the inside back
Note: Locking features not meant to secure restricted items or narcotics.
Color Chart
Download Color Chart (PDF)
Download Color Chart (PDF)
