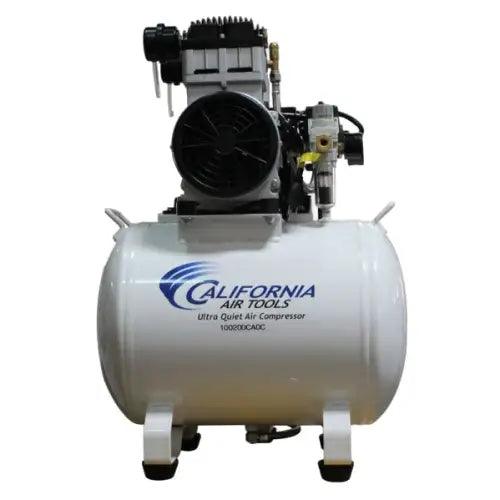

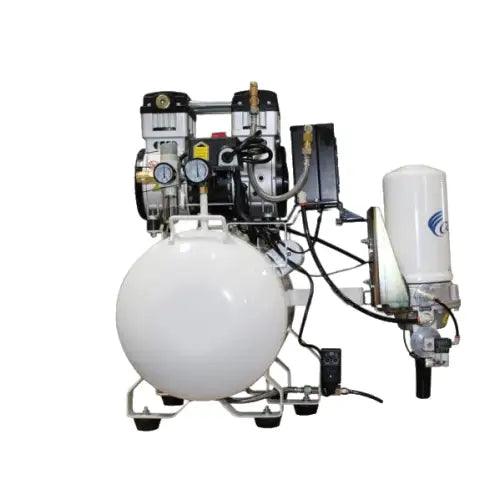

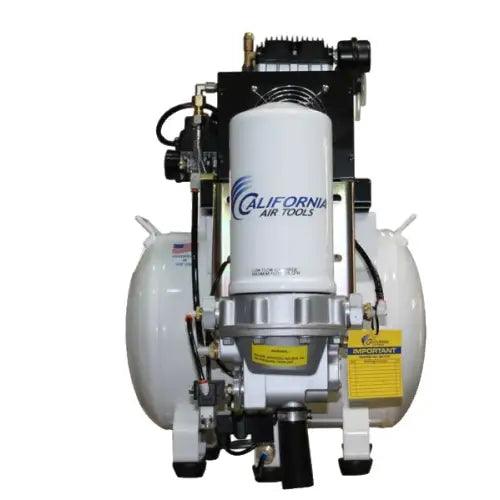

California Air Tools 10020HDCADC-22060 Ultra Quiet & Oil Free Air Compressor

California Air Tools 10020HDCADC-22060 Ultra Quiet & Oil Free Air Compressor

Experience clean, dry air and dependable performance in a compact footprint. The 10020HDCADC-22060 combines a 2.0 HP (rated/running) motor with a 10-gallon horizontal steel tank and a built-in air-drying system designed to minimize maintenance while maximizing tool life.

Ultra-quiet, durable operation

• Only 70 decibels of sound, making it suitable for busy workshops, garages, and home studios where quiet operation matters.
• 2.0 HP motor runs at 1680 RPM, reducing noise and wear for longer life.
• SP Series motor design to increase duty cycle and enable longer continuous run times.

Oil-free pumping for cleaner air

• Oil-free dual-piston pump delivers cleaner air with less maintenance and no oil carryover.
• Engineered for durability with a projected wear life of 3000+ hours, compared with shorter lifespans of oil-lubricated units.
• Designed to handle cold-starts and operate across a variety of temperatures without oil-related issues.

Dry air ready for precision tooling

• NEW Air Dryer Cartridge System removes up to 98% of water vapor to protect sensitive tools and machinery.
• Aftercooler cools discharge air before entering the dryer, increasing drying efficiency.
• Spin-on air dryer cartridge uses regenerating high-temperature molecular sieve desiccant; cartridge life ~2 years before replacement.
• Air Quality: ISO 8573 Class 2.3.1 for consistently dry air.

Tank, space, and versatility

• 10-gallon horizontal steel air tank providing ample storage while fitting under a bench, desk, or cabinet.
• Designed to support two handpieces, enabling simultaneous operation without extra equipment.

Key specifications at a glance

• Voltage: 220V / 60Hz / Single Phase (no 208V option)
• Motor: 2.0 HP (rated/run) at 1680 RPM
• Max pressure: 125 PSI
• Air flow: 6.40 CFM @ 40 PSI; 5.30 CFM @ 90 PSI
• Amperage: 7 Amps
• Tank fill time (empty to full): ~120 seconds
• Recovery time (95 PSI to 125 PSI): ~25 seconds
• Duty cycle: 70/30
• Continuous running time: 30–60 minutes depending on PSI & CFM
• Air filtration & regulation: 5.0 Micron (Class 2) filter & regulator
• Gauges: Dual pressure control gauges
• Connectors: 1/4" female industrial quick connector
• Controls: Condor pressure switch; thermal overload protector
• Drainage: EZ-1 Automatic Drain Valve (eliminates manual tank draining; timer controls drainage frequency and duration)

Maintenance and efficiency

• Low amp draw helps reduce electrical load on your system.
• Less heat dissipation improves overall efficiency and contributes to longer component life.
