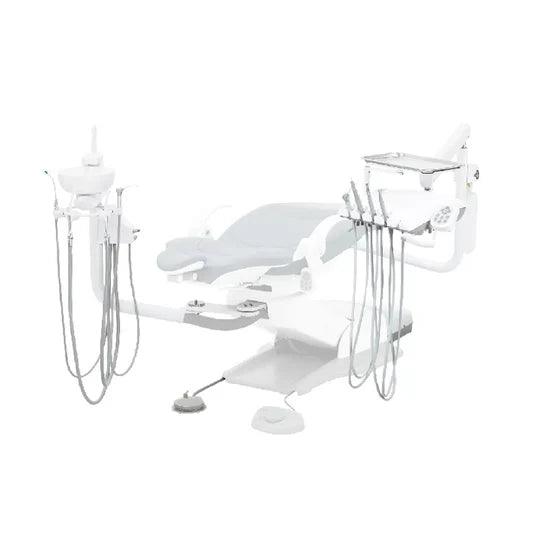

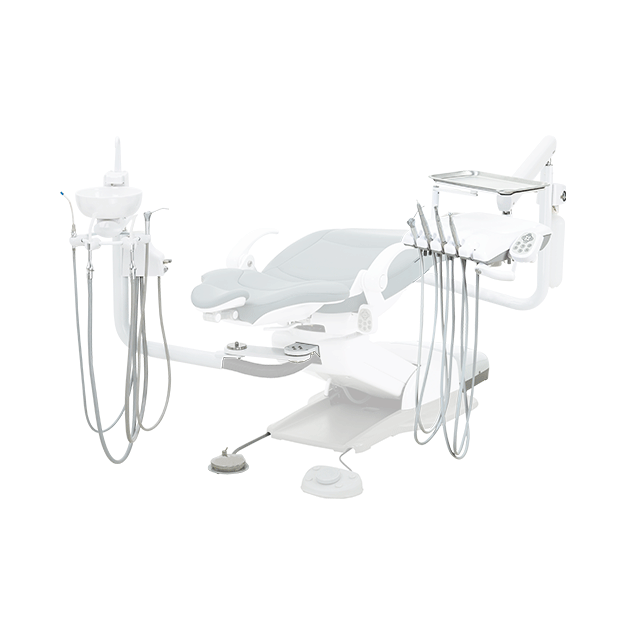

ADS Beyond 401 Dental Delivery System A0724012

Original price $5,797.00 - Original price $5,797.00
Original price
$5,797.00
$5,797.00 - $5,797.00
Current price $5,797.00
Shipping estimate

Estimated shipping: $500.00

Estimated total before taxes: $6,297.00

48 contiguous U.S. states only. Estimate for this product and quantity, based on order value. Other cart items and discounts may change the shipping tier. Final shipping is shown at checkout.

Product Description

Description
Swing Delivery System
Product Description



·Swing Beyond dentist's control head, Standard touchpad,

·Cast aluminium delivery head base, double pivot delivery head with 3 auto H.P.control,

·Individual water coolant controls

·Master handpiece air coolant adjustment, Asepsis handpiece tubing,

·Master on/off switch, 1 doctor syringe,

·Wet/Dry foot control, Stainless steel tray with non-slip pad,

·City/bottled water system, 5 ft umbilical,

·Junction box with air/water filters, regulators, master shut-off valves.

·Chair mounted swing rear cuspidor and assistant vacuum package,

·Assistant touchpad, Water outlet and air QD on assistant tray,

·Solids collector, 2 HVE, 1 SE, 1 syringe

Accessories Options

A121963

A121963

Bien Air MCX Built In System Without Touchpad

A121973 Bien Air MCX Built In System with touchpad

A121973

Bien Air MCX Built In System With Touchpad

A121997

A121997

Bien Air MX2 Built In System Without Touchpad

A121998 Bien Air MX2 Built In System with touchpad

A121998

Bien Air MX2 Built In System With Touchpad

A121532

A121532

HP Fiber Optic system with 1 tubing (6 pin)

A121533

A121533

HP Fiber Optic system with 2 tubings (6 pin)

A120403

A120403

Built in scaler with LED

8400387

8400387

Scaler with LED Handpiece

Built-in curing light

A120301

LED.G curing light (Build-in Type) 110V

Technical Parameters

  •  Ambient temperature:5 ℃~40 ℃;

  •  Relative Humidity:≤ 80%;

  •  Nominal Voltage:AC110 V±22 V;

  •  Nominal Frequency:60 Hz±1 Hz;

  •  Water Pressure:29 psi~58 psi;

  •  Input air pressure  72.5 psi~101.5 psi , Air flow ≥50 L/min

Brochure & Flyer
Technical Library
FAQ

Where can I buy ADS Dental equipment?

ADS Dental sells dental equipment only through the distribution network in each country. Please contact your local dealer of ADS Dental for quotation. Local organization is responsible for correct installation and service of ADS Dental equipment. Local teams have been trained and have all necessary certificates to correctly maintain our dental equipment

What is the life time of ADS equipment?

We, as manufacturer, declare life time of our systems as 10 years. However, even today, we have customers using 15 years old units, as they have been properly serviced and taken care of.

Who can service ADS equipment?

All our dealer’s network has been trained for proper service of our equipment. Each service technician obtains ADS certificate after service training, which allows him to install and service ADS dental equipment.

How long does it take to produce my dental unit?

After your order is confirmed, production time is in average 3-4 weeks. However, you need to calculate time for transport and installation.

Can I customize my unit if I have special request?

Yes, ADS is able to evaluate any of your special request. If it is technically possible, we create price offer for your customized solution and once you confirm, your dental unit can be produced based on your special customized request.


Wide backrest,cast aluminum backrest stand

Fully support the patient's back with ergonomic design.  Butterfly shaped back offers wide space for doctors and enables you get as close to the patient as possible.
