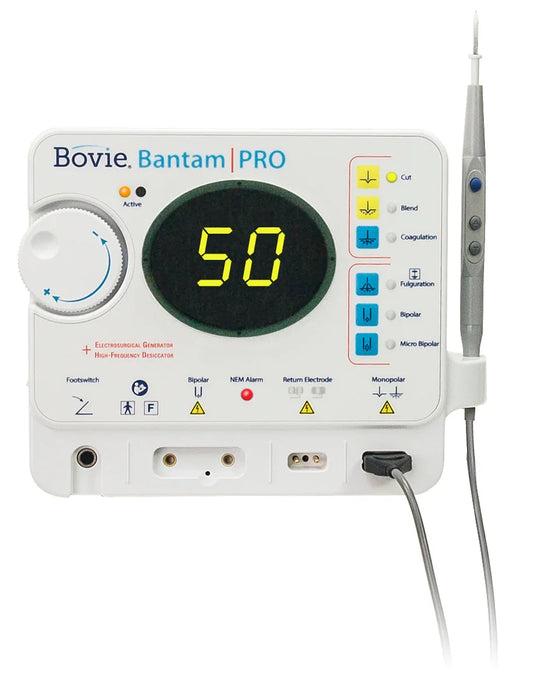

Bovie® Bantam | PRO™ 50W Electrosurgical Generator Veterinarian Package | Aspen Surgical

The Bovie A952-V is a High Frequency Desiccator with cutting ability. You might call it a split personality. One half of the unit is a high frequency desiccator, an upgrade to our very popular Aaron 940. The other half is a Bovie Generator, giving you 50 watts of cutting power and coag capabilities plenty of power for most cutting procedures performed in the Veterinarians office.

Specifications

• Technical Specifications

  MONOPOLAR	WATTS	VPEAK MAX VOLTAGE	CREST FACTOR (TYPICAL)	FREQUENCY (KHZ)
  Cut I	50	1600V	2.2 ± 20%	343kHz ± 10%
  Blend	50	2100V	3.5 ± 20%	368 kHz ± 10%
  Coagulation	50	2900V	5.2 ± 20%	340 kHz ± 20%
  Spray Coagulation	40	6300V	9.5 ± 20%	410 kHz ± 10%

  MONOPOLAR	WATTS	VPEAK MAX VOLTAGE	CREST FACTOR (TYPICAL)	FREQUENCY (KHZ)
  Bipolar	40	950V	5.5 ± 20%	368kHz ± 10%
  Micro Bipolar	40	300V	2.6 ± 20%	338 kHz ± 10%


  Technical Specifications:

  • Lifespan: Reusable
  • Sterilization Status: Non-sterile


  Electrical Specifications:

  • Line Frequency: 50-60 Hz
  • Output Frequency: 304-451 kHz
  • Line Voltage: 100-240 VAC
  • Monopolar HP Ports: 1 Port(s)


  Safety Specifications:

  • Latex-Free: Yes



  Included

  Included Items

  t

  SKU	Name	Default Quantity
  A952-V	A952 / Derm 94X Series Packaging Veterinarian	1
  A902	Autoclavable 3 Button Pencil	1
  A910-P	Handpiece Sheath (10/pk)	10
  A910ST	Handpiece Sheath With Card 25 Pack	2
  A1254C	Dispersive Electrode Cable For Reusable Plate 1250/2100	2
  A1204P	Grounding Plate A1200	1
  ES01R	Reusable Standard Blade Electrode	1
  ES20R	Ball Electrode Reusable 3/16" Insulated Short Shaft	1
  A833	Short Straight Needle Electrode	1



  Resources

  • Resources
    Catalogs:

    • Bovie® Product Catalog

    IFUs:

    • Bovie® A952-V IFU

    Videos:

    • Bovie Bantam PRO A952 Generator



    Features

    • Features

      ENERGY SETTINGS





      CUT MODE

      The Cut mode gives a general cutting with a standard RF waveform to cut all types of tissue with minimal hemostasis. It generates constant output power over a wide range of impedances.



      bantampro_a952_frontview_4893-interface-active-orange_125w

      Cut

      BLEND MODE

      The Blend Mode is a combination of Cutting and Hemostasis (55/45). The Blended Cutting offers increased control of bleeding at the surgical application site.



      bantampro_a952_frontview_4893-interface-active-orange_125w

      Blend



      COAGULATION MODE

      The Coagulation Mode provides precise control of bleeding in localized

       Overview

      Overview

      BOVIE GENERATOR

      • 50 Watts – Cut, Blend, Coagulation
      • Isolated Power

      THE GENERATOR

      Bovie A952-V is a high frequency desiccator with cutting ability. You might call in a split personality. One half of the unit is a high frequency desiccator, an upgrade to our very popular Aaron® 940. The other half is a Bovie Generator, giving you 50 watts of cutting power and coag capabilities- plenty of power for most cutting procedures performed in the Veterinarian’s office.

      THREE MODES OF OPERATION

      The Bovie A952-V Generator offers you up to 50 watts in Cut mode, Blended Cut mode, and Pinpoint Coagulation mode. Simplicity is achieved using easy-touch, color-coded membrane pads, and by placing all user controls and outputs on the unit’s compact front panel. The ergonomic arrangement of commonly used operating functions, plus a large, comfortable rotary dial, provide quick operating-mode selections and smooth power control with the option of adjusting the power from the handpiece.

      PROCEDURAL CONFIDENCE

      Use of the Bovie A952-V promotes procedural confidence. Our surgical handpiece fits comfortably in your hand and, when not in use, rests conveniently in a holder specifically designed to minimize contact with the unit. The handpiece holder safely isolates the instrument from the medical team, the patient, and the unit. All industry-standard 3/32″ (0.24 cm) disposable and reusable electrodes fit the A902 handpiece. Handpieces may be autoclaved for greater operating efficiency and maximum cost control. Bovie A952-V post-procedure cleanup is simple (and fast) due to nonabsorbent ABS enclosures, and our use of liquid resistant membrane switches that can be wiped clean with a damp cloth.

      THE DESICCATOR

      The High Frequency Desiccator is a ground referenced machine that does not require the use of a return plate. It gives you precision Fulguration up to 40 watts and Bipolar power up to 40 watts. All power settings are adjustable in 1/10 watt settings from .1-10 watts.

      CHANGE POWER IN ONE STEP, NOT FOUR

      The Bovie A952-V allows the veterinarian to change the power setting with one action, using the up/down buttons on the autoclavable handpiece or the rotary power-control dial. This saves time and protects the sterile field during sensitive procedures.

      FOOT CONTROL ADVANTAGE

      To use the foot control feature one simply needs to plug in the optional footswitch. There is no expensive separate handpiece, and the handpiece retains the ability to adjust the power and activate the unit in this mode.

      THE BOVIE 3-BUTTON HANDPIECE – BETTER BY DESIGN – INSIDE AND OUT

      The A902 handpiece (Patent #8,998,899) allows you to adjust the power output up and down as well as to activate the unit, even when you are in foot control mode. Designed with a 2-pin plug design, no more flying lead.
