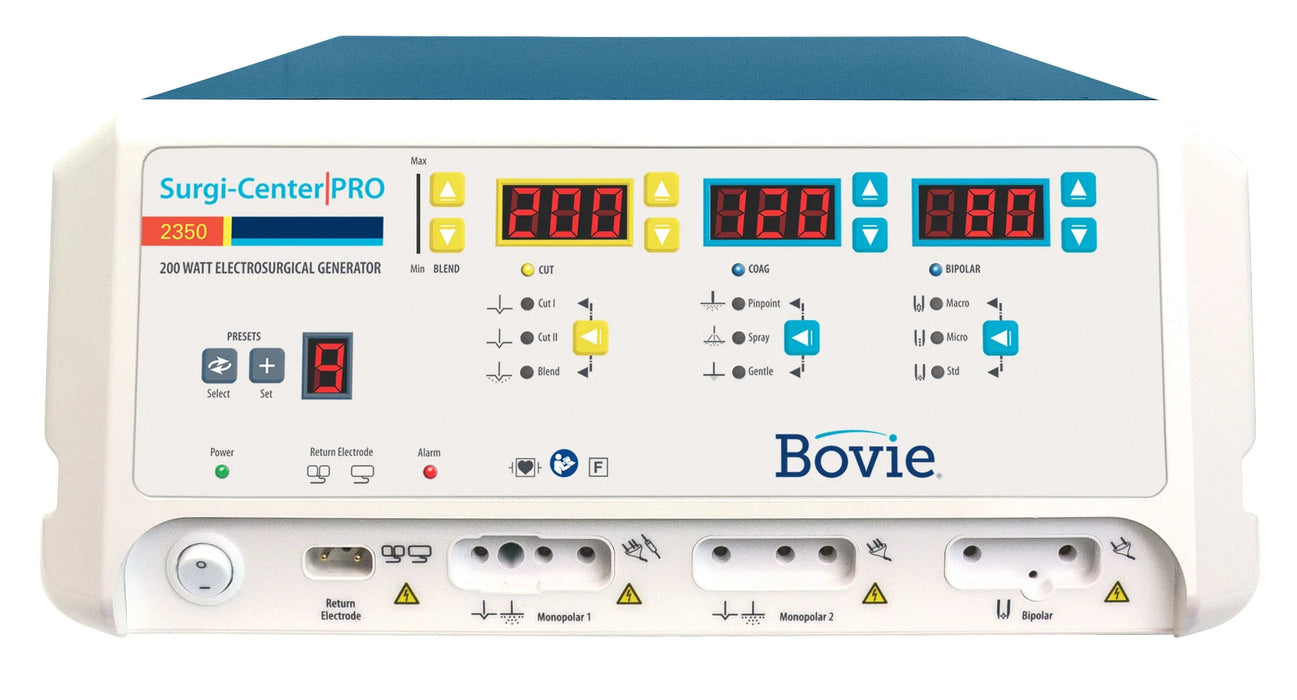

Aspen Surgical Bovie® Surgi-Center | PRO™ 200W Veterinarian Electrosurgical Generator

Description

Bovie® Surgi-Center | PRO™ 200W Veterinarian Electrosurgical Generator. Manufacturer part A2350-V.

Lifespan: Reusable; Sterilization Status: Non-sterile; Cooling System: Passive Cooling; Technology: Isolated RF Output.

Specifications

Manufacturer Part #: A2350-V

Dentamed USA P # A2350-V

Technical Specifications

MONOPOLAR	WATTS	VPEAK MAX VOLTAGE	CREST FACTOR (TYPICAL)	FREQUENCY (KHZ)
Cut I	200	1000V	1.7 ± 20%	490 kHz ± 4.9 kHz
Cut II	200	750V	1.7 ± 20%	490 kHz ± 4.9 kHz
Blend (1)	200	1320V	1.8 ± 20%	490 kHz ± 4.9 kHz
Blend (2)	200	1475V	2.0 ± 20%	490 kHz ± 4.9 kHz
Blend (3)	200	1650V	2.2 ± 20%	490 kHz ± 4.9 kHz
Blend (4)	200	1870V	2.4 ± 20%	490 kHz ± 4.9 kHz
Pinpoint Coagulation	120	1800V	3.1 ± 20%	490 kHz ± 4.9 kHz
Spray Coagulation	120	4000V	6.0 ± 20%	350 to 450 kHz
Gentle Coagulation	120	450V	1.6 ± 20%	490 kHz ± 4.9 kHz

BIPOLAR	WATTS	VPEAK MAX VOLTAGE	CREST FACTOR (TYPICAL)	FREQUENCY (KHZ)
Macro Bipolar	80	600V	1.5 ± 20%	490 kHz ± 4.9 kHz
Micro Bipolar	80	500V	1.5 ± 20%	490 kHz ± 4.9 kHz
Standard Bipolar	50	250V	1.5 ± 20%	490 kHz ± 4.9 kHz

Technical Specifications:

• Lifespan: Reusable
• Sterilization Status: Non-sterile

Electrical Specifications:

• Cooling System: Passive Cooling
• Technology: Isolated RF Output
• Audible/Visible Output Meter: Yes
• Pre-set Feature: Yes
• Monopolar HP Ports: 2 Port(s)
• Connector Ports/Power Switch: White
• Contact Monitoring Systems Range/Trip Point: 10 ohms or less over entire operating range (10C° to 40°C)
• Dual Activation Tone Alert: Yes

Safety Specifications:

• Latex-Free: Yes
