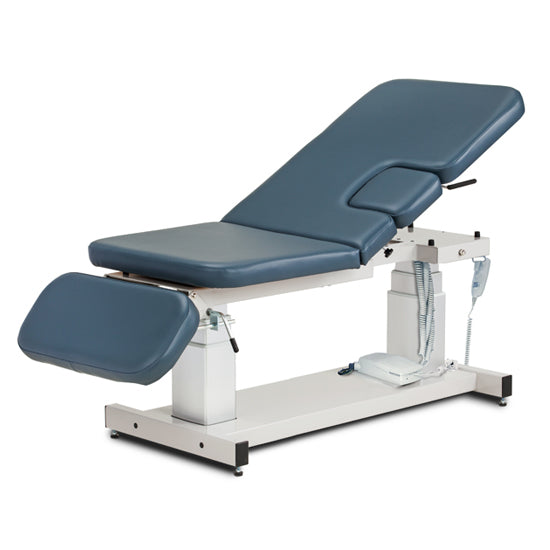

Clinton Imaging Table with Three-Section Top and Drop Window – 80073

Clinton Imaging Table with Three-Section Top and Drop Window – 80073

by Clinton Industries
$4,677.20 - $4,677.20
$4,677.20
$4,677.20 - $4,677.20
$4,677.20
Shipping estimate

Estimated shipping: $246.08

Estimated total before taxes: $4,923.28

48 contiguous U.S. states only. Estimate for this product and quantity, based on order value. Other cart items and discounts may change the shipping tier. Final shipping is shown at checkout.

Clinton Industries

View manufacturer color chart Clinton Industries manufacturer upholstery color chart

Manufacturer color reference. Available materials and colors depend on the selected model. Screen colors may differ from physical upholstery samples.

Upholstery color

Clinton Industries

Choose from the colors offered for this model. Screen colors may differ from physical upholstery samples. Premium materials and custom colors require a separate quote.

Product Description

Description

Model #80073

Imaging Table with Three-Section Top and Drop Window
  • Three-piece top with manual, pneumatic, adjustable backrest, manual footrest and window drop
  • Footrest is adjustable from either side and lowers up to 80º from flat position
  • Optional side rails & casters (see options below)
  • Trendelenburg/Reverse Trendelenburg plus or minus 15º
  • Easy-to-use hand control
  • All-welded base and top frame
  • Unobstructed base design
  • Dual column lift system adds rigidity
  • Paper dispenser, cutter and positioning straps included
  • Optional side rails and casters available
  • 34" wide model available
  • Model 80073: 500 lbs lift capacity under normal use
  • Model 80073-X: 600 lbs lift capacity under normal use
Download Data Sheet
Specifications
80073 Imaging Table with Three-Section Top and Drop Window Length Width Height Range
Imperial
80073 (overall) 76" 27" 21.5" – 37.5"
Backrest 38" 27"
Footrest 12" 27"
Window 10" 10"
80073-X (overall) 76" 34" 21.5" – 37.5"
Backrest 38" 34"
Footrest 12" 34"
Window 10" 10"
Metric
80073 (overall) 193 cm 69 cm 55 cm – 95 cm
Backrest 97 cm 69 cm
Footrest 31 cm 69 cm
Window 25 cm 25 cm
80073-X (overall) 193 cm 86 cm 55 cm – 95 cm
Backrest 97 cm 86 cm
Footrest 30 cm 86 cm
Window 25 cm 25 cm
Options

Optional accessories are sold separately unless specified in the selected configuration.

011 Power Backrest

• Smooth power control raises backrest to 80º and lowers to flat

087 Locking Casters

• 3" Heavy duty, rubber wheel, locking, swivel casters on all four corners makes it easy to reposition the table and then lock it securely it in place.

Note: The addition of casters adds 6" to the overall width of the table. (15.24 cm)

090 Power Footrest

• Smooth power control lowers footrest to 30º and raises to flat

098 Side Rails for Trendelenburg tables

• Pair
• Chrome
• Positions up and down
• Plunger height adjustment
• 29" x 12"
