Merits Health E603 STRAIGHT STAIR LIFT

by Merits Health
$3,499.00 - $3,499.00
$3,499.00
$3,499.00 - $3,499.00
$3,499.00
Shipping estimate

Estimated shipping: $300.00

Estimated total before taxes: $3,799.00

48 contiguous U.S. states only. Estimate for this product and quantity, based on order value. Other cart items and discounts may change the shipping tier. Final shipping is shown at checkout.

Model: E603
Upholstery color

Merits Health

View manufacturer color chart Merits Aviator / Navigator seat upholstery — manufacturer colors

Choose from the colors offered for this model. Screen colors may differ from physical upholstery samples. Premium materials and custom colors require a separate quote.

Product Description

Product Description

Convenience

  • Remote Control: Easy and convenient to call and park carriage.
  • Swivel Seat with Locking Catch: Ensures easy entry and exit from the carriage: Unit is non-operational unless the seat has been turned to the ready position.
  • Folding Seat & Footrest Fold-away design allows others to use the staircase freely when the unit is folded.
  • Infrared Remote Controls: Easy and convenient to control the chair either up or down when needed.
  • Adjustable seat height: 40.6~50.8cm.
  • Adjustable armrest width: 40.6~50.8cm.

Safety

  • Soft Start and Soft Stop Technology: Comfortable and no lurch as the lift starts or stops.
  • Obstacle Sensor Safety Interlock: Prevents unit from colliding with any obstruction on the stairway.
  • Mechanical Braking Systems: Self-locking worm gear eleminates the possibility of any uncontrolled movement.
  • Compliant with ASME A18.1A/ BS/ EN 81-40:2008
Features & Benefits
    Unfold

    (Optional Folding Rail for Straight Stair)

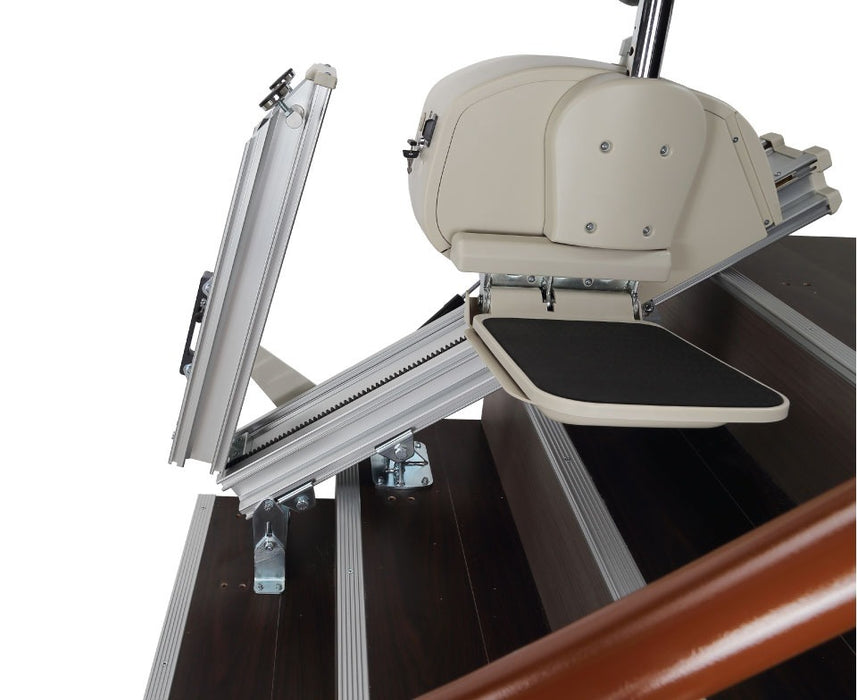

Fold

(Optional Folding Rail for Straight Stair)

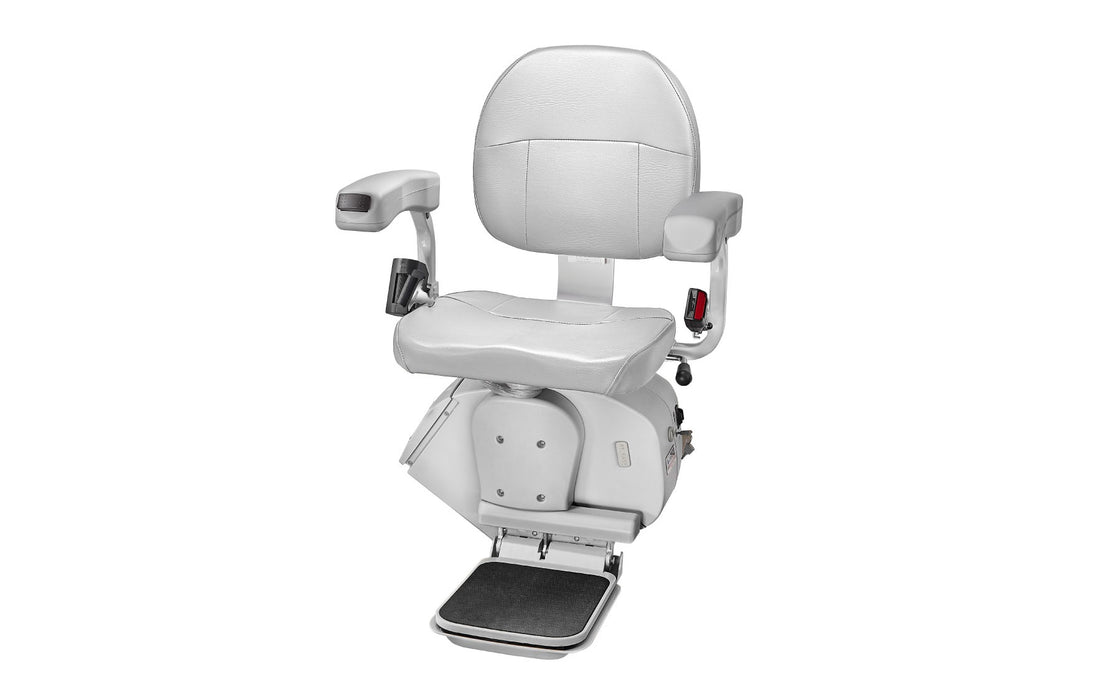

Optional Deluxe Seat
Specifications
Key Details
Weight Capacity 158 kg / 350lb
Speed 6 m/min. / 20 fpm
Incline Limits Max 55°
Travel per Charge 53 m / 173 ft
Drive Method Rack & Pinion
Motor 950W, 24 VDC
Charger Input: 100~240 VAC, 50~60 HZ Output: 2A / 24 VDC
Battery 24V/9AH x 2pcs
Brake Overspeed Governor (optional)
Carriage Weight 53 kg / 116.5 lb
STD Seat Dimension (WxDxH) 40 x 40 x 40 cm / 16" x 16" x 16"
Deluxe Seat Dimension (WxDxH) 58-68 x 51 x 56 cm / 23"-27"x 20"x 22"
Carriage Dimension (LxWxH) 36 x 58 x 96 cm / 14”x 23”x 38”
Models & Options

Model: E603

Accessories

See the manufacturer’s specifications for compatible accessories and optional equipment.
