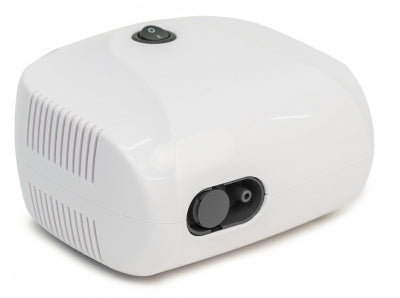

Graham-Field Neb-u-Lite® EV2 Nebulizer Compressor

The Neb-u-Lite EV2 is a great addition to the Graham-Field line of quality nebulizer compressors that offer innovation, performance, and value for both patients and providers.
Features:
Small footprint at a competitive price point for providers
Light weight Compressor 2.7lb (1.2 kg)
Built-in nebulizer cup holder for hands-free use
Reliable, piston-driven compressor is efficient and delivers consistent particle size of <5 microns
Powerful piston pump is efficient, dependable and quiet
Complete with disposable Nebulizer Accessory Kit
Designed to meet the requirements of HCPCS Code: E0570
Five year limited warranty
Package Contains:
1 1 Neb-U-Lite EV2 Compressor
*1 Nebulizer Accessory Kit

1 disposable nebulizer cup (reusable for single patient use only)
1 Mouthpiece
1 PVC tubing
5 Spare filters
1 Adult and 1 Pediatric Mask


*Boiling nebulizer components is not recommended
?FDA (USA) restricts the sale of this device to or by the order of a physician
†Specifications are subject to change without notice.
Technical Specifications


Method of Nebulization
Piston Driven


Power
120VAC, 60Hz


Operating Temperature Range
50°F to 104°F (10°C to 40°C)


Operating Humidity Range
30% to 95% RH


Storage Temperature Range
-40°F to 158°F (-40°C to 70°C)


Storage Humidity Range
10% to 95% RH


Weight
12.7 lb (1.2 kg)


Width
5.8";


Height
3.3";


Depth
5.5";


Max Pressure (Compressor)
42 PSI


Flow Range (Compressor)
≈ 8 liters/min


Particle Size (Nebulizer)
≤ 5 μm


Capacity (Nebulizer)
8 ml
