Partes

Gray push button only.DCI reference 7104.

Black push button only.DCI reference 7103.

Manual shut-off valve with 1/2-inch FPT inlet and 3/8-inch OD tube compression outlet.DCI reference 7100.

Manual shut-off valve with 1/2-inch nominal compression inlet and 3/8-inch OD tube compression outlet.DCI reference 7099.

Pilot-valve actuator only. Activates at 20 PSI. Supplier lists normally closed operation, 10-32 ports, 1/16-inch barbs and washers.DCI reference 7096.

Normally open two-way non-relieving pilot-actuated relay valve for air or water. 10-32 ports. Requires actuator DCI 7096.DCI reference 7095.

Water regulator, Dentsply reference 60407. Includes 1/4 × 10-32 poly connector DCI 0054. Fits Cavitron 3000/2002, Prophy-Jet 30, Cavi-Jet 30, Cavi-...

Shuttle valve for routing two different flows through one output. For 1/4-inch tubing.DCI reference 7092.

Shuttle valve for routing two different flows through one output. For 1/8-inch tubing.DCI reference 7090.

Normally closed 10-PSI air-electric switch, A-dec reference 044.159.00. Controls up to 120V, 5A; maximum 125 PSI. 15/32-32 thread with nut. Supplie...

Normally closed 25-PSI air-electric switch. Controls up to 120V, 5A; maximum 125 PSI. 15/32-32 thread with nut. Supplier description also mentions ...

1/8-inch FPT check valve for non-retraction water systems.DCI reference 7085.

Normally open 10-PSI air-electric switch for A-dec handpiece control, reference 044.158.00. Supplier lists up to 120V, 1A and maximum 125 PSI; desc...

Normally open switch activated at 25 PSI. Controls up to 120V, 5A; maximum 125 PSI. 15/32-32 thread with nut. A-dec reference 044.181.00. DCI is no...

White powder-coated single mounting bracket for toggles, indicators, quick disconnects and air-electric switches. 1/2-inch ID mounting holes. Lengt...

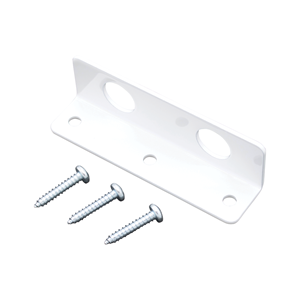

White powder-coated double mounting bracket for toggles, indicators, quick disconnects and air-electric switches. 1/2-inch ID mounting holes. Lengt...

Normally closed three-way air-actuated on/off valve for air only. Barb fitting for 1/8-inch OD tubing, 15/32-32 panel-mount thread and nut. Require...

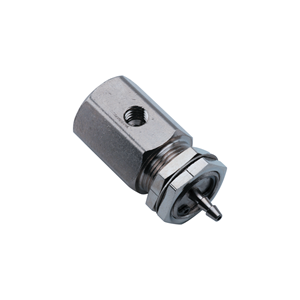

Normally closed two-way non-relieving air-pilot valve for air or water. 1/8-inch FPT ports. Requires actuator DCI 7096.DCI reference 7073.

Normally open two-way air-actuated on/off valve for air and water. Barb fitting for 1/8-inch OD tubing, 15/32-32 panel-mount thread and nut. Requir...

Gray knob only for hex-body needle flow-control valve. Supplier description includes complete valve features; this reference is the knob only.DCI r...

Normally closed two-way air-actuated on/off valve for air and water. Barb fitting for 1/8-inch OD tubing, 15/32-32 panel-mount thread and nut. Requ...

Gray momentary toggle only.DCI reference 7065.

Gray detented toggle only.DCI reference 7064.

Black knob only for hex-body needle flow-control valve.DCI reference 7059.
