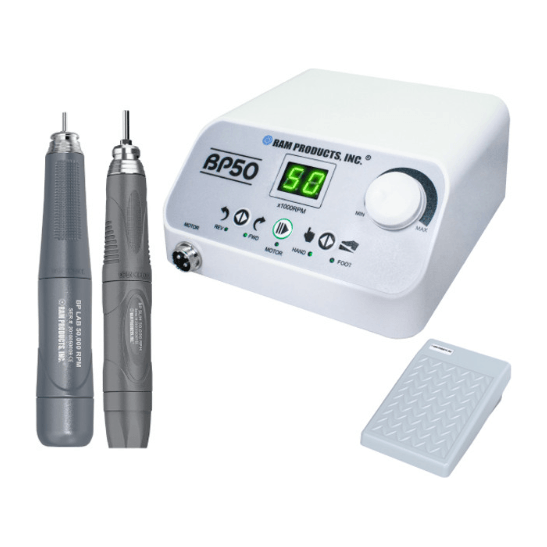

Ram BP50 1/8" Brushless Digital Micromotor Set

Original price $415.00 - Original price $415.00
Original price
$415.00
$415.00 - $415.00
Current price $415.00
Availability:
Only 4 left!
Availability:
Only 5 left!
Option: BP50 Slim Brushless Digital Micromotor Set with Variable Pedal

Free returns on all eligible orders

You have 30 days to request a return. All sale items are final sale.

Shipping information

Free Shipping USA on The Most Products USA Only.

Returns & warranty

Return and Refund Policy

Return & Refund Policy

Return Policy (New Products)

Products may be returned within fourteen (14) days of delivery only if they are new, unused, and in original condition.

• All returns require prior authorization from Dentamed USA.
• A Return Authorization (RA) number must be issued before any product is returned.
• Returned items must be shipped prepaid by the customer.
• A 30% restocking fee applies to all approved returns.
• Original outbound and return shipping costs are non-refundable.
• Products must be returned in original packaging with all accessories and documentation.

Once the product is received and inspected, the refund amount (item price minus restocking fee) will be issued if the product is confirmed to be new and unused.

Special Orders & Custom Products

Special order items, custom-made products, and made-to-order equipment are not eligible for return, refund, or cancellation.

Cancelled Orders

Orders cancelled after shipment are subject to the standard return policy.
Customers must accept delivery, obtain a Return Authorization number, and return the product to the designated address.
If delivery is refused, return shipping costs and a 30% restocking fee will be deducted from the issued credit.

Refurbished Equipment

All refurbished equipment is inspected and tested prior to shipment.

• Refurbished equipment sales are final.
• Refurbished items are not eligible for return or refund.
• Warranty coverage is specified on the product listing or invoice.

Customers are responsible for verifying delivery access, including door clearance, elevators, ramps, and site conditions prior to placing an order.

Refund Processing

Once an approved return is received and inspected, customers will be notified by email.
Approved refunds will be issued to the original payment method within five (5) to fourteen (14) business days.

If you receive a product that is damaged in transit, defective upon arrival, or shipped in error, please contact Dentamed USA within 48 hours of delivery. We will work with you to resolve the issue through replacement, repair, or another appropriate solution.

Contact Information

Dentamed USA Your Medical Dental Equipment Corp
7950 NW 53rd Street, Suite 337
Doral, FL 33166
United States

Phone: +1 (786) 616-1533
Email: sales@dentamedusa.comEmail: sales@dentamedusa.com
Phone: +1 (786) 616-1533

Ram BP50 1/8" Brushless Sets

  • BP50 Slim Brushless Digital Micromotor Set with Variable Pedal
  • BP50 Lab Brushless Digital Micromotor Set with Variable Pedal

Brushless Micromotor features high torque and pure power technology which increases the comfort and productivity of its user by effort-free performance. Brushless features a unique motor design which is totally sealed along with a powerful magnet motor shaft in a sealed motor case that virtually eliminates noise and vibrations. Brushless Motor Technology is unique to every brand and RAM PRODUCTS is proud to break the price barrier, making brushless more affordable.

BP50 CONTROL BOX FEATURES:

  • LED Functions and Display
  • Forward or Reverse Rotation
  • Standby Mode for Handpiece
  • Hand or Foot Control
  • Speed Dial Can Limit Top Speed for Safety
  • Secure Locking Handpiece Ring
  • Stylish and Ergonomic


BP50 CONTROL BOX SPECIFICATIONS:

  • Input: AC110V 50HZ-60HZ
  • Output: DC 0-36V
  • Max. Amp: 0.35A
  • Rotate Speed: 1,000-50,000rpm
  • Power: 50W
  • Dimension: 6.8” Length x 6.4” Width x 3.2” Height
  • Weight: 3.43lbs.


LAB HANDPIECE FEATURES:

  • High Speed 0-50,000 RPM
  • High Torque and High Power is Virtually Impossible to Stall
  • High Performance Motor Runs Effortlessly and Silently
  • 3 Times the Power and Torque of Conventional Brush Type Units
  • More Power Means Greater Productivity and Comfort with Less Fatigue
  • Convenient Flexible Coiled Cord
  • Heavy Duty Bearings and Spindle Design
  • Sealed Rear Motor Eliminates Dust
  • No Carbon Dust or Carbon Brushes to Replace
  • No Cooling Fan to Eliminate Noise and Reduce the Intake of Dust and Debris


LAB HANDPIECE SPECIFICATIONS:

  • Torque: 7.8Ncm
  • Size: 6”x11/16”
  • Net Weight: 7oz.

BP50 Slim Handpiece is 20% lighter weight offering superior comfort while only 10% less torque and still 3 times the torque of brush type motors. Don’t be fooled by the slim front end as it has the same exact spindle and bearings – only a slightly different motor. BP50 Slim combines the best of brushless power and comfort in size.

BP50 SLIM HANDPIECE FEATURES:

  • High Speed 0-50,000 RPM
  • High Torque and High Power is Virtually Impossible to Stall
  • High Performance Motor Runs Effortlessly and Silently
  • 3 Times the Power and Torque of Conventional Brush Type Units
  • More Power Means Greater Productivity and Comfort with Less Fatigue
  • Convenient Flexible Coiled Cord
  • Heavy Duty Bearings and Spindle Design
  • Sealed Rear Motor Eliminates Dust
  • No Carbon Dust or Carbon Brushes to Replace
  • No Cooling Fan to Eliminate Noise and Reduce the Intake of Dust and Debris
  • Includes 6 Foot Coiled Cord


BP50 SLIM HANDPIECE SPECIFICATIONS:

  • Torque: 7.2Ncm
  • Size: 6”x11/16”
  • Net Weight: 5.68oz.

VARIABLE FOOT PEDAL FEATURES:

  • This foot pedal will allow the user to adjust or vary the speed


VARIABLE FOOT PEDAL SPECIFICATIONS:

  • 6.75” Length x 4” Width x 2.75” Height
