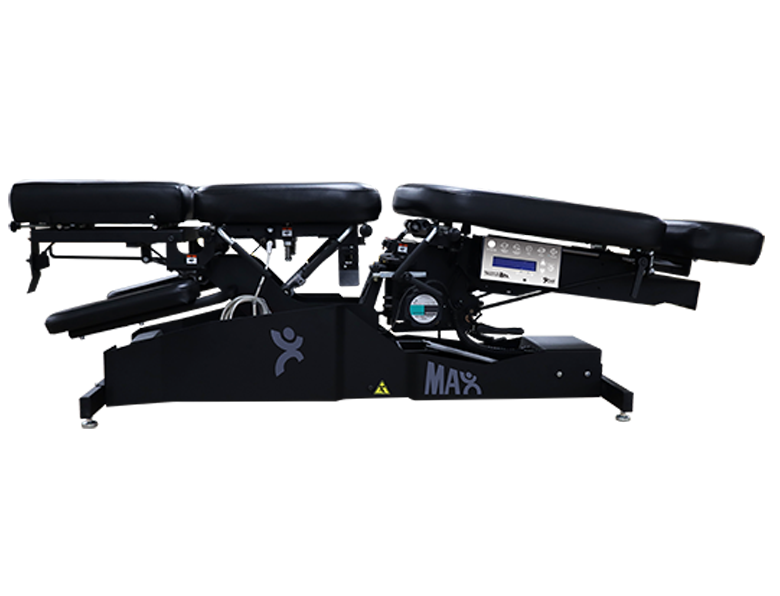

PHS Chiropractic TradeFlex MAX - E9118 Manual & Auto Flexion Table

The TradeFlex Max allows practitioners the choice of performing manually or with auto flexion. An easy-to-use touch screen control panel provides both automatic flexion and/or auto-distraction treatments at the touch of a button, while a conveniently located Long Bar delivers a manual touch. The addition of auto flexion features the convenience of variable flexion speed and a treatment timer for precise adjustment and care.

Table Configurations

• E9118 - TradeFlex MAX with Manual & Auto Flexion Table - 120V

Standard Features

• Lifting capacity: 350 lbs.
• Overall dimensions: 73”L x 28”W x 21”H
• Extended maximum length with ankle extension: 83"L
• Cushion width: 22"W
• Rated voltage: 120V
• Rated frequency: 50Hz
• Stationary table height: 20"
• P/A Flexion: 15°
• Rear lateral flexion:15°
• Electric spring tension
• Variable speed control
• Flexion timer
• 10" Ankle extension
• Breakaway abdominal
• 22" Wide comfort cushions
• Tilting headpiece with adjustable face cushions
• Steel base
• Short T bar and SST strap
• Paper roll holder and cutter

Table Options

Headpiece Options

• E4401 - Tilt, Forward Drop, Toggle Drop, Adjustable Face Cushions
• E4512 - Tilt, U-Shape Cushion
• E4513 - Tilt, U-Shape Cushion, Cervical Drop
• E4514 - Tilt, U-Shape Cushion, Axial Flexion

Drop Options

• E4412 - Thoracic Manual Drop
• E4413 - Lumbar Manual Drop
• E4414 - Pelvic Manual Drop

Height & Elevation Options:

• E9118-L - Elevation - 21-29" with single foot pedal

Long Axis Distraction Options

• E1801-LAD - Long axis distraction - 120V

Warranty

WARNING: California Proposition 65 Information

Standard Upholstery Choices

Click the chart to enlarge. Available colors and finishes depend on the specific model and material. Only the choices listed for this product apply; the reference chart may include additional colors. Screen settings and lighting can affect color appearance.
