Air Compressor SP Series Ultra Quiet & Oil Free 4-HP 20-Gallon (4 User)

Original price $5,500.00 - Original price $5,500.00
Original price $5,500.00
$6,655.00
$6,655.00 - $6,655.00
Current price $6,655.00

Do you have questions about this product?

Availability and delivery time?

Be the first to ask a question about this.

Ask a Question

Compare products

{"one"=>"Select 2 or 3 items to compare", "other"=>"{{ count }} of 3 items selected"}

Select first item to compare

Select second item to compare

Select third item to compare

Compare

California Air Tools SP Series Ultra Quiet & Oil Free 4-HP 20-Gallon Steel Tank Air Compressor w/ Dryer, Auto Drain & Sound Proof Cabinet (220V 1-Phase)

CALIFORNIA AIR TOOLS 20040DSPCADC Powerful 4.0 Hp Ultra Quiet & Oil-Free

  • Air Compressor with Air Drying System and Automatic Drain in a Soundproof Cabinet
  • 4.0  HP (Rated/Running)
  • 20 Gallon Steel Tank in a Soundproof Cabinet
  • "NEW" Air Dryer Cartridge System - Up to 98% Dry Air
  • 12.80 CFM @ 40 PSI
  • 10.60 CFM @ 90 PSI
  • 220 Volts / 60 Hertz / Single Phase

The CALIFORNIA AIR TOOLS 20040DSPCADC Ultra Quiet, Ultra Dry Oil-Free Air Compressor with Air Drying System in a Soundproof Cabinet is designed to be one of the quietest 4.0 Hp air compressors in the industry having only 65 decibels of sound.

  • The Powerful (2) 2.0 HP motors operates at only 1680 RPM creating less noise and less wear.
  • The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.
  • The Oil-Free Dual Piston Pump System is engineered for high performance and durability.
  • The CAT-20040DSPCADC Air Compressor has a Oil-Free Dual Piston pump designed to have a life cycle before wear of 3000 Plus hours compared to other comparable air compressors with life cycles of 1500 hours or less.
  • The Oil-Free pump allows for use in a variety of temperatures  (cold starts) and eliminates oil from being in the air.

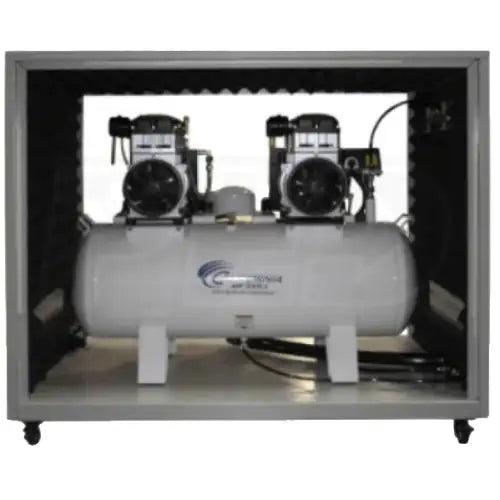

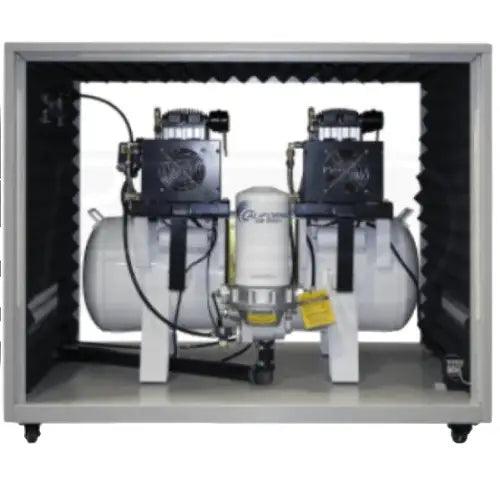

  • The sturdy steel soundproof cabinet has a large 20 gallon steel air tank and caster wheels that makes it easy to move.
  • The interior of the cabinet is lined with acoustic soundproofing foam insulation to reduce the air compressor's noise and vibration.
  • The two latching door handles allows for easy access to the air compressor.
  • The four exhaust fans are designed to remove the air from the cabinet for a cooler running air compressor.
  • The Air Dryer is specially designed to remove up to 98% of the water vapor from the air to protect sensitive tools and machinery.
  • PDP performance range (-20' F. to -51' F.)
  • Air Quality: ISO 8573 - Class 2.3.1

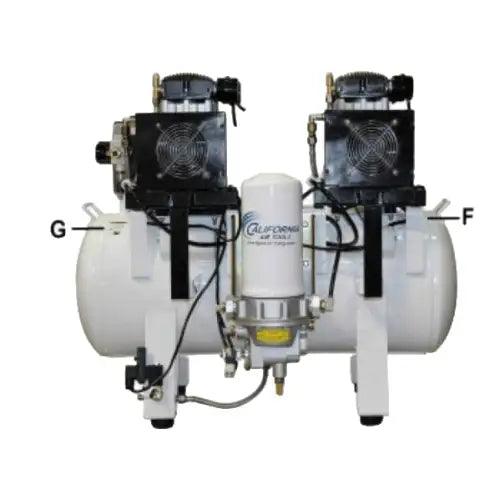

  • To dry the air from the air compressor an Aftercooler and Dryer are utilized.
  • The aftercooler is a heat exchanger for cooling the discharge air from the air compressor. The water vapor from the compressed air is condensed into liquid form and pushed into the Air Dryer.
  • The easy to replace "Spin-On" Air Dryer Cartridge has a regenerating High-Temperature Molecular Sieve Desiccant to dry the air.
  • This cartridge dryer has a life of 2-years before replacement.
  • The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank.
  • The manually set timer allows you to set the time for both the frequency and duration of the draining process.
  •
  • Designed for the person looking for Power, Dry Air,  Air Flow and Less Service with at Least 30% Less Noise!

Features:

  • * Ultra Quiet  -  Only 65  decibels
  • * Oil-Free Pump (Class 1) – Cleaner air for better tool operation.
  •   Less maintenance and Costs.
  • * 5.0 Micron (Class 2) Air Filter Regulator
  • * Two pressure control gauges
  • * Two - 1/4″ Industrial female quick connectors
  • * Condor Pressure Switch
  • * Thermal Overload Protector
  • * 130 PSI  Maximum Pressure
  • * 220 Volts / 60 Hertz / Single Phase - (No 208 Volts)
  • * Low Amp Draw - 14 Amps
  • * Time to fill tank from empty to full - 150 Seconds
  • * Recovery time from 100 PSI to 130 PSI - 40 Seconds
  • * Duty Cycle - 70/30
  • * Maximum continuous running 30-60 min. (Depending PSI & CFM)
  • * 20 Gal. Steel AirTank
  • * L (31") x W/D (46") x H (39")
  • * 375 lbs
  • * Air Dryer Cartridge uses a High-Temperature Molecular Sieve Desiccant
  •   Easy to remove (spin off) and replace every 2 years
  • * Aftercooler (condenser)
  • * PDP performance range (-20' F. to -51' F.)
  • * Air Quality: ISO 8573 - Class 2.3.1
  • * 1 Year Limited Warranty
  • * Comes complete (4) Air Filters
  • * Plug Type: Nema 6-15P
  • * EZ-1-2321 Auto Drain Valve Factory Installed
  • * Commercial Use: Refer to State & City Codes
  • * Assembled in USA with global components
Overview Weight: 375 Pounds Warranty: 1 Year Commercial Warranty Product Length: 31 Inches Product Width: 46 Inches Product Height: 39 Inches



Note: Some equipment and products are ready for shipment. whereas others are manufactured when the order is placed. Please ask the delivery time before purchasing.

Some equipment qualify for Free Shipping Dock to Dock business address only
